BD Diesel 1030606-DS-58 – Double Stacked Auxiliary Transmission Cooler Kit with 5/8 inch Tubing
$1,294.99
BDs High Performance CP3 (HPCP3) Injection Pump with up to a 72-percent increase in capacity / displacement delivers enough fuel to support up to 750hp while maintaining 24,000psi of rail pressure. The HPCP3 pump replaces the existing injection pump and simply bolts in place to produce up to 5.25 LPM versus the stock 3.05 LPM. That is right, all that fuel without going to a dual pump system – no extra pulleys, belts or pumps to install. BDs HPCP3 pumps are engineered with an enhanced metering unit and new design cam shaft with modified plungers and stroke. Plus, the HPCPS eliminates the off throttle fuel spikes common with stock pumps that can potentially damage injector nozzle tips when trying to produce more than 500hp. All of these modifications deliver long-term durability with consistent high fuel pressure supply on demand that provides efficient atomization resulting in more power, better combustion and lower EGTs. Designed for street, towing and race track applications, each HPCP3 injection pump is fully tested before leaving our facility. Chevy Duramax 6.6L and Dodge 6.7L engine applications coming soon!

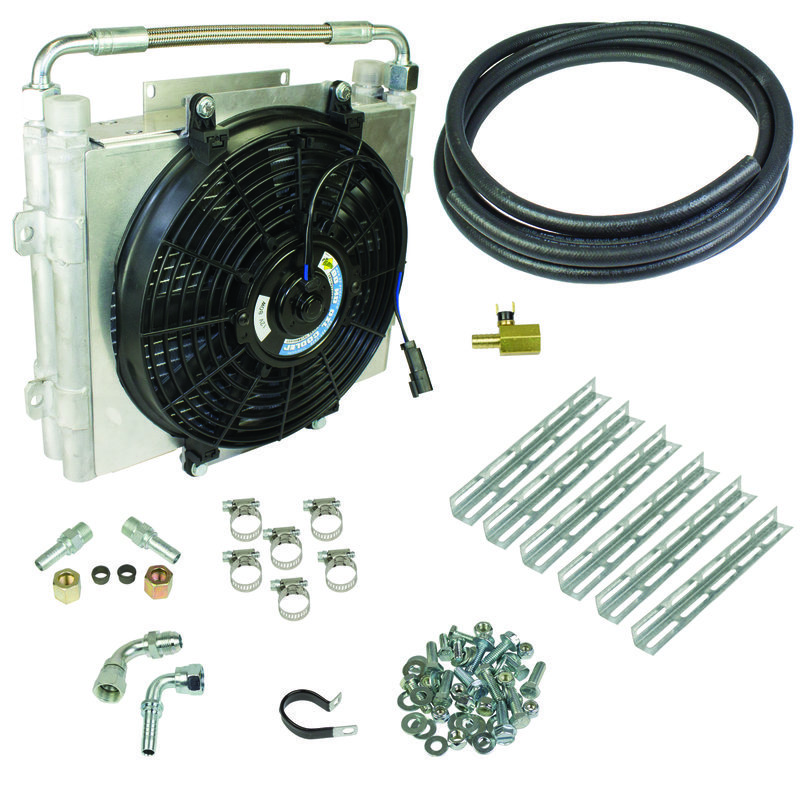

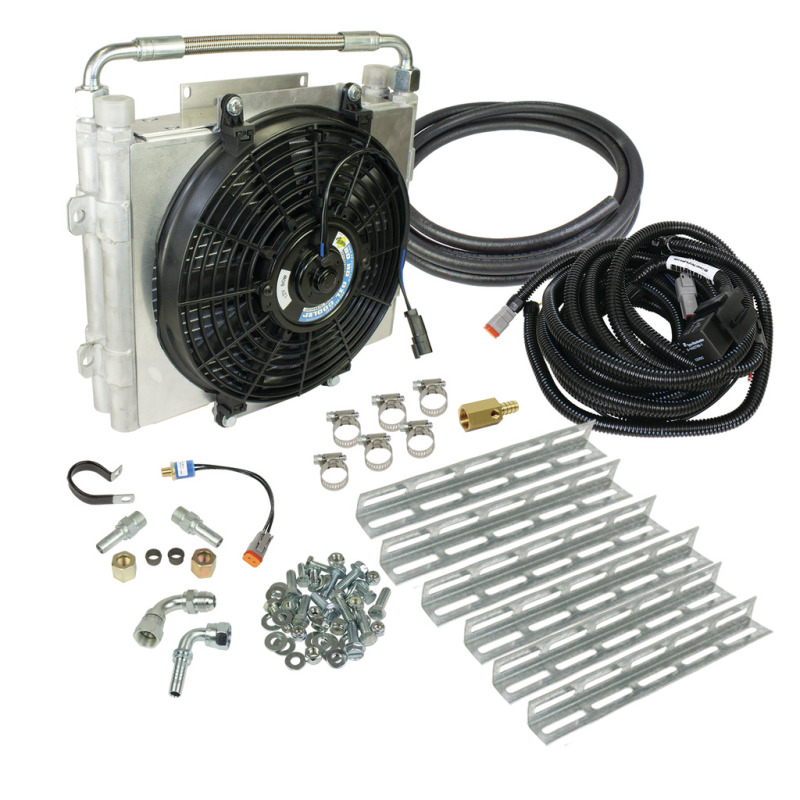

Xtrude Double Stacked Auxiliary Transmission Cooler Kit; 5/8 in. Tubing; Incl. Cooler/Bracket/Wiring Harness/Fittings/Temp Sensor/Sensor Adapter/Hardware;
- Build-It-Yourself galvanized bracket kit for quick and easy installation – no wasting time fabricating brackets out of scrap metal
- The pre-wired loomed harness with fuse and relay comes with plug-in connectors
- Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan

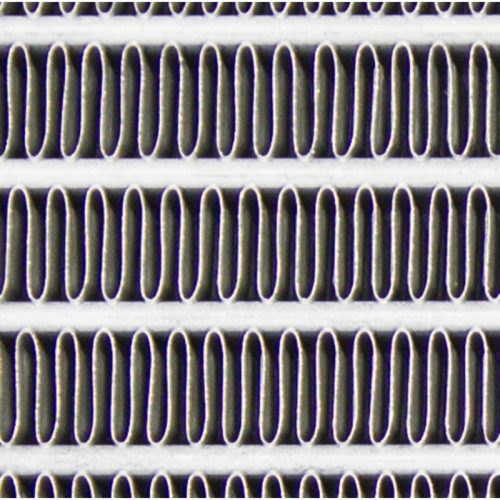

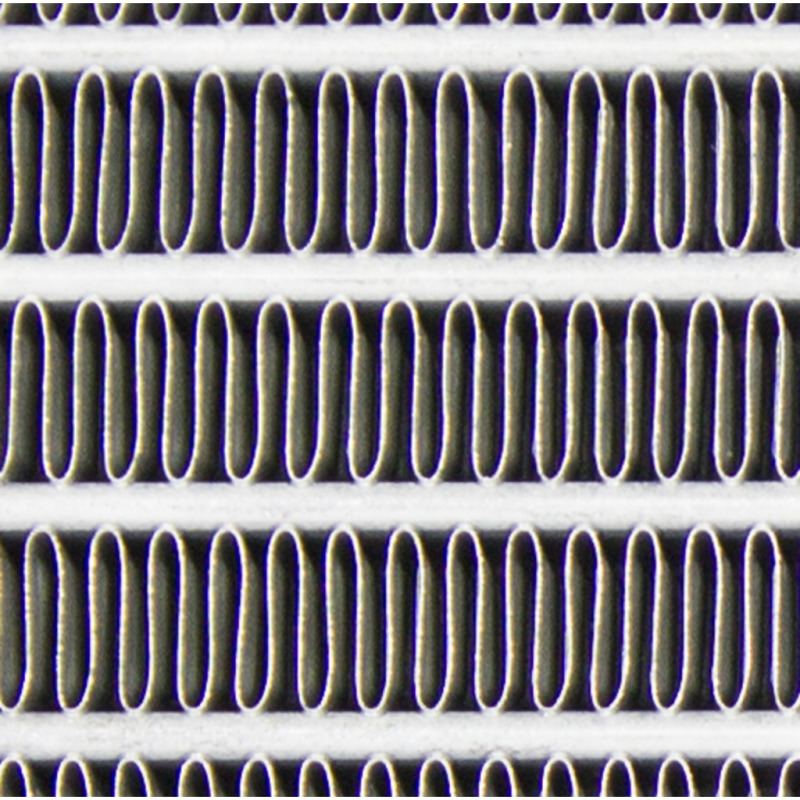

- Large Surface Area To Transfer Heat For External Air Flow Cooling
- Thermostatically Controlled 80-watt 10-inch 800 CFM Electric Fan
- Build-It-Yourself Galvanized Bracket Kit For Quick Installation
- Pre-Wired Loomed Harness w/Fuse And Relay w/Plug In Connectors
- Over 350 Percent Temperature Drop Versus The Factory System
- Furnace Brazed Rails Have Been Tested to 300psi of Pressure
- Kits complete with all fittings, clamps, hoses and hardware
- Turbulent oil flow design promotes a more complete cooling
- 136 Percent Better Temp. Drop Than XTRUDED Single Core Kit
- Double stacked cores deliver over 40,000 BTU/HR of cooling
- 136% better temperature drop than XTRUDED single core kit

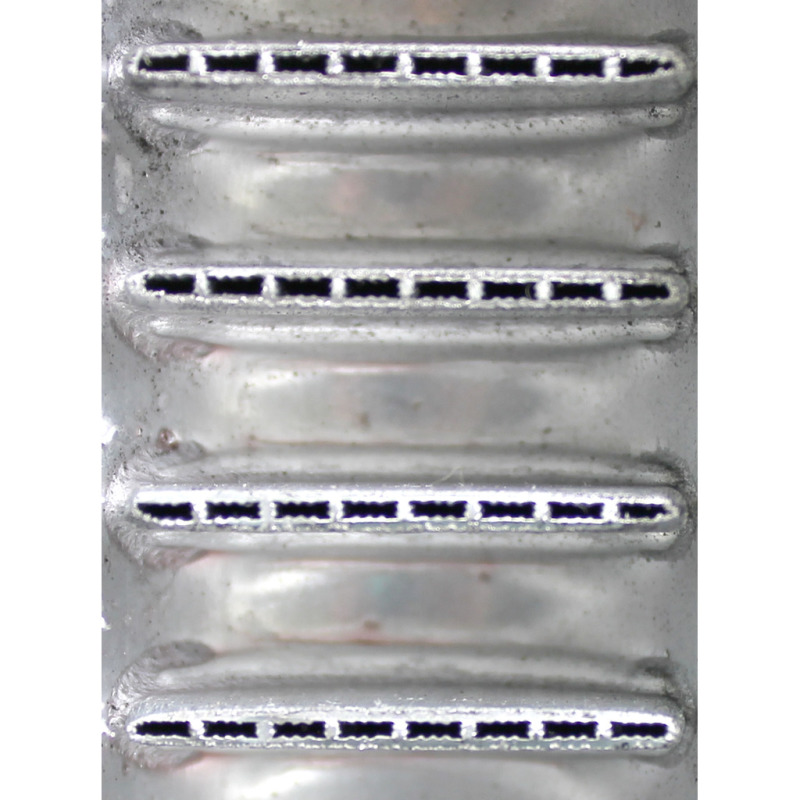

- Large 5/8-inch Ports Prevents Inlet/Outlet Restriction
- Double Stacked Cores Deliver 40000 BTU/HR of Cooling
- Over 350% temperature drop versus the factory system
- Chevy Allison 1000 – 5/8-inch Cooler Lines
- 12 Months or 24000 Mile Warranty
- 5/8 in. Cooler Lines
Out of stock
The BD Diesel 1030606-DS-58 is a heavy-duty auxiliary transmission cooler kit designed to improve cooling efficiency in demanding fleet and automotive applications. Engineered with double stacked cores, this cooler delivers over 40,000 BTU per hour of cooling capacity, significantly reducing transmission fluid temperatures and enhancing overall drivetrain longevity. The large surface area of the cooler promotes efficient external air flow cooling, while the turbulent oil flow design ensures a more complete heat transfer process. This kit is suitable for street, towing, and race track use, providing consistent thermal management under severe operating conditions. The included galvanized bracket kit offers quick and easy installation, eliminating the need for fabrication or modifications. The pre-wired loom harness with fuse and relay features plug-in connectors for a clean, reliable electrical connection. The thermostatically controlled 80-watt, 10-inch electric fan maintains optimal operating temperatures, preventing overheating and ensuring continuous performance. With fittings, clamps, hoses, and hardware included, this kit is a comprehensive solution for high-performance cooling needs, tested to withstand pressure levels up to 300 psi. The large 5/8-inch inlet and outlet ports prevent restriction and facilitate turbulent oil flow, further improving cooling efficiency. Designed to enhance transmission durability and optimize performance, the BD Diesel cooler kit is an essential upgrade for heavy-duty trucks and fleet vehicles operating under severe conditions. Its robust construction and advanced cooling technology contribute to lower operating temperatures, increased power transfer, and extended component lifespan, ensuring your vehicle remains reliable mile after mile.
Features:
- Heavy-duty double stacked cores deliver over 40,000 BTU/hr of cooling capacity for demanding applications
- Large surface area and turbulent oil flow design promote efficient external air flow cooling and heat transfer
- Thermostatically controlled 80-watt, 10-inch electric fan maintains optimal temperature and prevents overheating
- Includes galvanized bracket, pre-wired harness with fuse and relay, fittings, clamps, hoses, and hardware for a complete installation
Fitment:
Chevrolet Silverado 2500 HD Base 2001 to 2005
Chevrolet Silverado 2500 HD High Country 2015 to 2016
Chevrolet Silverado 2500 HD LS 2001 to 2006
Chevrolet Silverado 2500 HD LT 2001 to 2016
Chevrolet Silverado 2500 HD LTZ 2007 to 2016
Chevrolet Silverado 2500 HD WT 2003 to 2016
Chevrolet Silverado 3500 Base 2001 to 2005
Chevrolet Silverado 3500 LS 2001 to 2006
Chevrolet Silverado 3500 LT 2001 to 2006
Chevrolet Silverado 3500 WT 2004
Chevrolet Silverado 3500 WT 2006
Chevrolet Silverado 3500 Classic LS 2007
Chevrolet Silverado 3500 Classic LT 2007
Chevrolet Silverado 3500 Classic WT 2007
Chevrolet Silverado 3500 HD High Country 2015 to 2016
Chevrolet Silverado 3500 HD LT 2007 to 2016
Chevrolet Silverado 3500 HD LTZ 2007 to 2016
Chevrolet Silverado 3500 HD WT 2007 to 2016
GMC Sierra 2500 HD Base 2002 to 2005
GMC Sierra 2500 HD Base 2015 to 2016
GMC Sierra 2500 HD Denali 2011 to 2016
GMC Sierra 2500 HD SL 2001 to 2002
GMC Sierra 2500 HD SL 2006
GMC Sierra 2500 HD SLE 2001 to 2016
GMC Sierra 2500 HD SLT 2001 to 2016
GMC Sierra 2500 HD WT 2003 to 2014
GMC Sierra 3500 Base 2002 to 2005
GMC Sierra 3500 SL 2001 to 2002
GMC Sierra 3500 SL 2006
GMC Sierra 3500 SLE 2001 to 2006
GMC Sierra 3500 SLT 2001 to 2006
GMC Sierra 3500 WT 2004 to 2006
GMC Sierra 3500 HD Base 2015 to 2016
GMC Sierra 3500 HD Denali 2011 to 2016
GMC Sierra 3500 HD SLE 2007 to 2016
GMC Sierra 3500 HD SLT 2007 to 2016
GMC Sierra 3500 HD WT 2007 to 2014
| Weight | 23.6 lbs |
|---|---|
| Dimensions | 22.2 × 15.4 × 10.6 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025011540 |
| brand | BD Diesel |
| part_number | 1030606-DS-58 |
