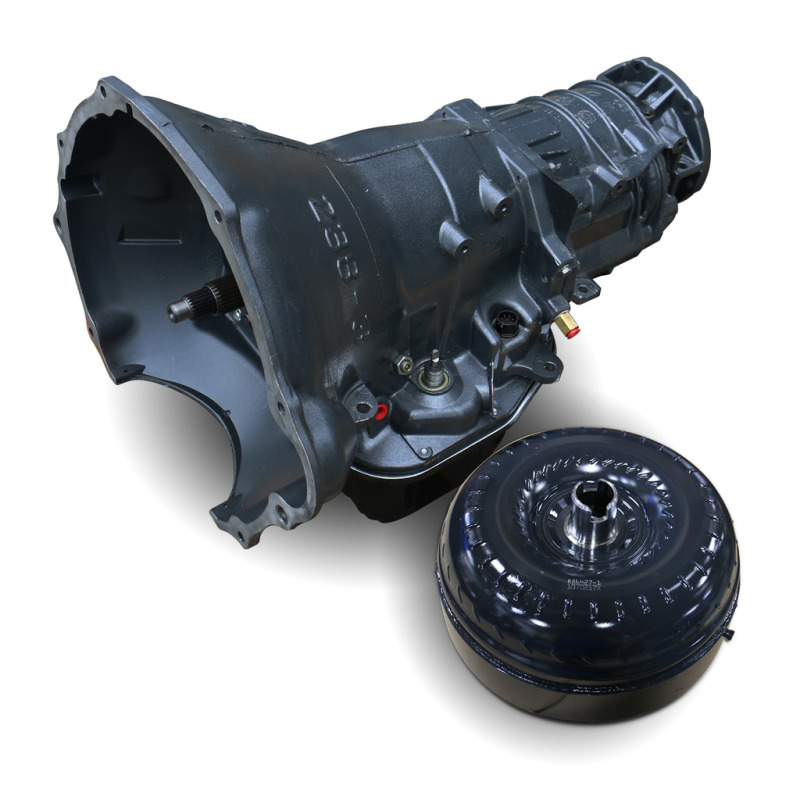

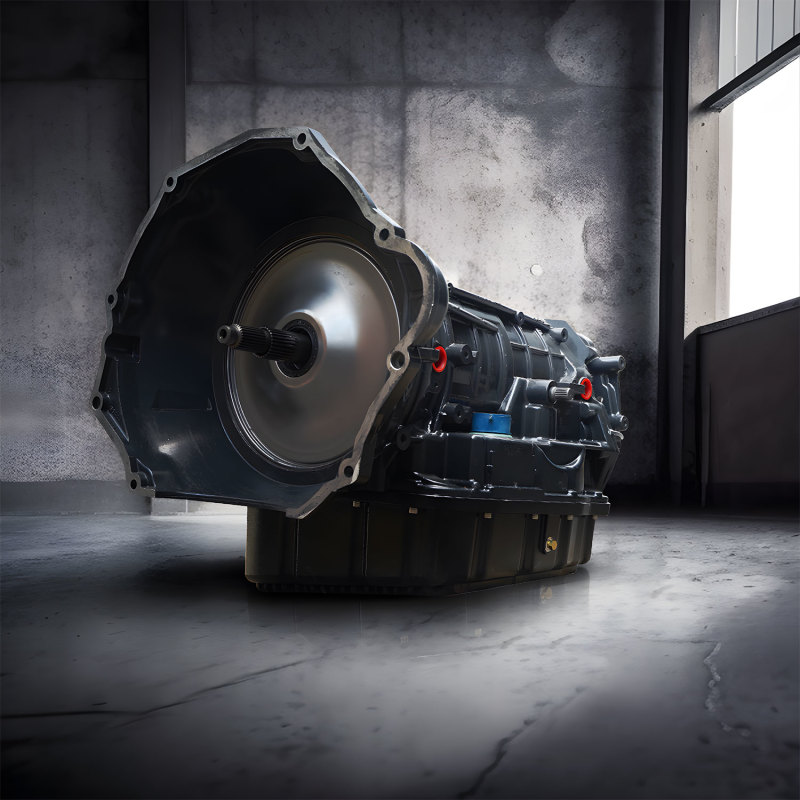

BD Diesel 48RE Transmission & Converter Package – Part # 1064194BM
$11,491.99
Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower. Billet ‘Big’ fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall – Street/Towing applications. Torque multiplying cast aluminum stators. Lower rpm response than the stock converter. More efficient operation. Less heat and better fuel economy. Stamp-forged steel front cover. Furnace-brazed fins. Up to triple the amount of lock-up clutch material. Warranty-> Parts 36 Month/150,000 miles, Labor 12 Month 24000 Miles
Transmission Kit; Complete Trans; Incl. Billet Input Shaft/Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 5;
- Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock
- Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
- Self-centering trapezoid teeth design increases contact decreases wear and chatter
- Billet Input Shaft to take the “snap” from rapid throttle and high horsepower
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Stock thrust bushings replaced with roller Torrington bearings
- Reduced overall weight by 12lbs compared to competitors
- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- New sprag components ensure long term durability
- Modified manual valve for lube in all positions
- Pan heat-dissipating fins keep temperature down
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Thrust bearings – not plastic thrust washers
- Enhanced Stall – Street/Towing applications
- Increase the durability of your drivetrain
- Torque Convertor Has Machined Positions
- Not warranted for Race or Sled Pull use
- Every transmission is tested on a dyno
- Taller cover can be rebuilt more often
- Increased line pressure to 190-200psi
- HD springs absorb shock of engagement
- Upgraded Governor Pressure Transducer
- Cast stator designs maximizes torque
- Billet “Big” fine spline input shaft
- Eliminates Warpage From Clutch Heat
- High temp/energy Raybestos band
- Pan adds 2qt extra oil capacity
- Engineered Tighter Tolerances
- No Shuttle Shifting Problems
- Stamped Forged 1 Piece Cover
- Upgraded Governor Solenoid
- Stamp forged 1-piece cover
- Clutch Count: OD DIRECT 10
- Clutch Count: FORWARD 5
- Trapezoid Teeth Design
- Clutch Count: DIRECT 6
- No Race Abuse Covered
- Upgraded Valve body
- Magnetic drain plug
- Clutch Count: OD 6
- TORQUE CONVERTOR:
- Billet band lever
- Billet band strut
- Aluminum HD Pan
- TRANSMISSION:
- Triple Disc
Out of stock
The BD Diesel 48RE Transmission & Converter Package, part number 1064194BM, is designed for heavy-duty Dodge Ram applications from 2003 to 2004. This comprehensive upgrade enhances transmission durability, efficiency, and performance, making it ideal for towing, high-horsepower modifications, and fleet use. The package includes a fully rebuilt transmission with high-performance components and a custom-tuned torque converter for optimized street and towing operation. Crafted with precision, the transmission features an upgraded valve body, a high-pressure governor transducer with twice the burst strength of stock, and a billet input shaft capable of handling rapid throttle and high horsepower stresses. The reinforced manual valve ensures reliable lubrication in all positions, while the roller Torrington bearings replace stock thrust bushings for increased longevity.
Additional features include a heavy-duty aluminum transmission pan with heat-dissipating fins that add two quarts of extra oil capacity and reduce operating temperatures. The BD auxiliary full-flow filter kit provides extra protection for the transmission fluid, ensuring long-term reliability. The drilled intermediate shaft promotes better lubrication, and the pan’s magnetic drain plug facilitates easy maintenance. The package is completed with a high-performance, street/towing stall torque converter featuring machined positions for improved engagement, less heat, and better fuel economy. Every transmission is dyno-tested to ensure quality and performance consistency. Designed with durability in mind, this upgrade also includes a fortified cast aluminum stator, stamped-forged steel front cover, and an upgraded clutch count for increased torque capacity. This product is not intended for race or sled pull use but offers a 36-month/150,000-mile parts warranty and a 12-month/24,000-mile labor warranty, providing peace of mind for demanding applications.
Whether you’re restoring a fleet vehicle or upgrading for high-performance towing, the BD Diesel 48RE transmission package offers robust construction, enhanced thermal capacity, and long-term reliability to withstand severe operational conditions and maximize drivetrain durability.
Features:
- Heavy-duty diesel and fleet torque capacity designed for severe towing and high-performance applications
- Premium friction materials ensure smooth engagement and longevity
- Enhanced thermal capacity prevents clutch slippage under severe towing and high-horsepower conditions
- Long-term drivetrain reliability through reinforced components and meticulous testing
Fitment:
Dodge Ram 2500 Laramie 2003
Dodge Ram 2500 SLT 2003 to 2004
Dodge Ram 2500 ST 2003 to 2004
Dodge Ram 3500 Laramie 2003 to 2004
Dodge Ram 3500 SLT 2003 to 2004
Dodge Ram 3500 ST 2003 to 2004
| Weight | 329 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 2500 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025020689 |
| brand | BD Diesel |
| part_number | 1064194BM |
