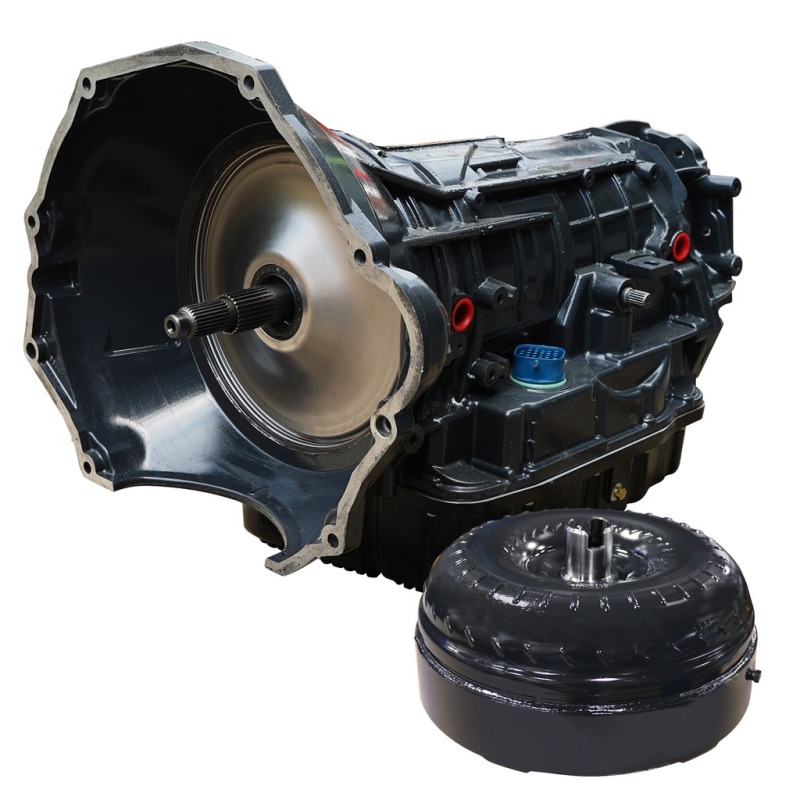

BD Diesel 68RFE Transmission & Converter Package – Part # 1064292SS
$12,005.99
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD’s own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel’s power and torque demands, the clear choice is BD.
Transmission Kit; 68RFE Transmission; Stage 4; Incl. ProForce Converter Package;
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- Billet forged front cover with thicker walls and stronger mounting pads
- Hard anodized valve body and new solenoid pack installed in every unit
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Heavy Duty Cam And Roller Design Low Reverse One Way Clutch
- BD Durable QT100 Pressure Plates For Increase Clutch Counts
- Over Drive clutches 33% increase & 2C clutches 33% increase
- Heavy duty cam & roller design low reverse one way clutch
- Valve Body And Solenoid Installed In Every Unit
- Ideal replacement for stock torque converter
- Lower rpm response than the stock converter
- Great for street and towing applications
- High performance Enhanced stall stator
- Custom Big Stack Overdrive Shaft
- Custom Bonded Gasket Valve Body
- Steel Girdle Added To 2C Piston
- BD Reinforced Accumulator Plate
- New 4C Billet Spring Retainer
- Good for 550 flywheel HP
- Damper springs replaced
- 11.625 inch dual-clutch
- No Race Abuse Covered

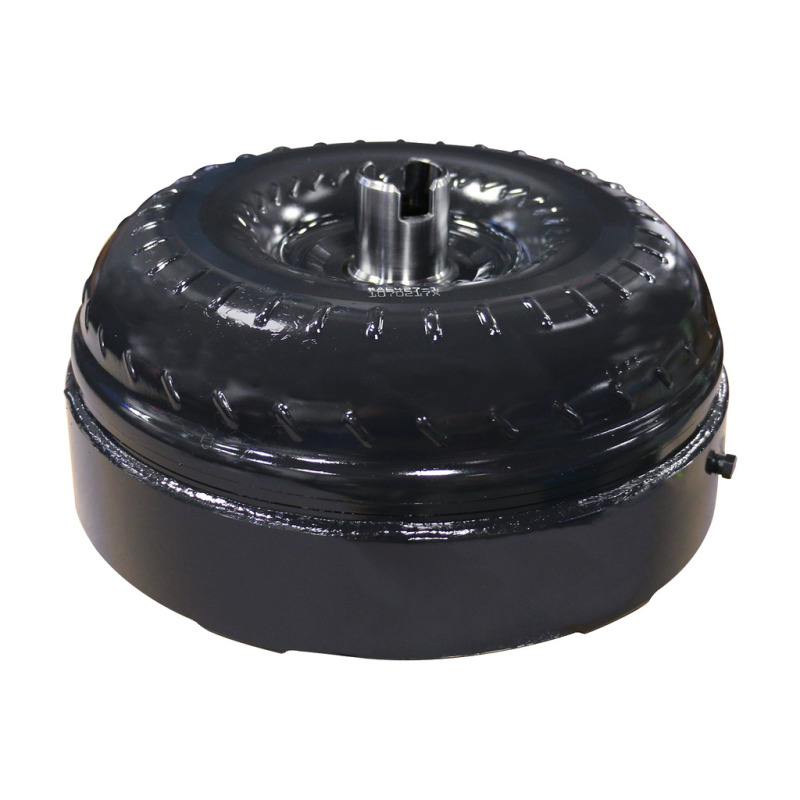

- PROFORCE CONVERTER:

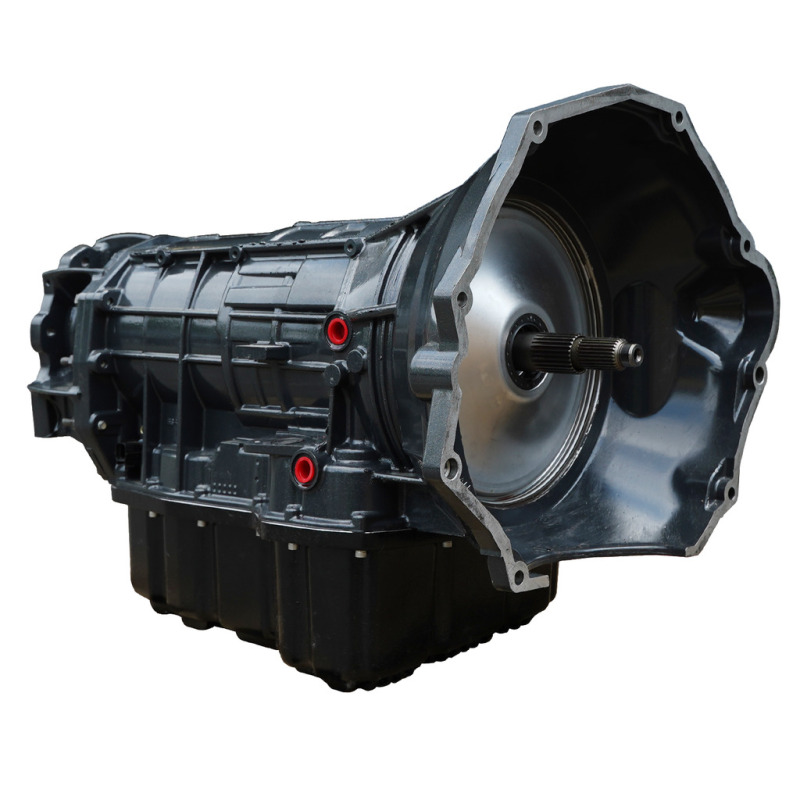

- TRANSMISSION:
1 in stock
The BD Diesel 68RFE transmission and torque converter package offers a reliable, high-performance solution for 2019 Ram 2500 and 3500 trucks. Designed with durability and towing capacity in mind, this package includes a stage 4 transmission with a ProForce converter, ensuring optimal power transfer and smooth engagement under heavy load conditions. The transmission features BD’s own heavy-duty aluminum pan, which increases fluid capacity and enhances cooling, reducing heat buildup during demanding towing or street driving. Every component, from the billet forged front cover to the hardened valve body and solenoid pack, is engineered for longevity and consistent performance.
This package incorporates several advanced features such as QT100 pressure plates for increased clutch count, a custom bonded gasket valve body separator plate to improve line pressure and prevent internal leaks, and a steel girdle added to the 2C piston for broader apply area and increased clutch capacity. The high-performance overdrive clutches provide a 33% increase in clutch surface area, contributing to better torque handling and durability. The furnace-brazed turbine fins improve fluid coupling efficiency, while the heavy-duty cam and roller design low reverse one-way clutch ensures robust operation under severe conditions.
The included ProForce converter is engineered for street and towing applications, offering lower RPM response than stock converters and an enhanced stall stator for improved performance. Each transmission is built with a hard anodized valve body, new solenoid pack, and a steel girdle on the 2C piston to withstand high torque loads. This package is suitable for applications up to 550 flywheel horsepower and is ideal for those seeking a dependable upgrade that can handle the demands of heavy-duty towing and performance driving. Proper installation and adherence to recommended break-in procedures are essential for maximizing the longevity and performance of this high-performance drivetrain component.
Features:
- Heavy-duty diesel torque capacity with enhanced clutch engagement for demanding towing and performance use
- Premium friction materials for smooth, reliable engagement and increased clutch longevity
- Enhanced thermal capacity to prevent clutch slippage during severe towing and high-power applications
- Designed for long-term drivetrain reliability under heavy-duty fleet and performance conditions
Fitment:
Ram 2500 Big Horn 2019 to 2024
Ram 2500 Laramie 2019 to 2024
Ram 2500 Laramie Longhorn 2019 to 2022
Ram 2500 Limited 2019 to 2024
Ram 2500 Limited Longhorn 2021 to 2024
Ram 2500 Lone Star 2019 to 2024
Ram 2500 Rebel 2023 to 2024
Ram 2500 Special Service 2024
Ram 2500 Tradesman 2019 to 2024
Ram 3500 Big Horn 2019 to 2024
Ram 3500 Laramie 2019 to 2024
Ram 3500 Laramie Longhorn 2019 to 2020
Ram 3500 Limited 2019 to 2024
Ram 3500 Limited Longhorn 2021 to 2024
Ram 3500 Lone Star 2019 to 2022
Ram 3500 SLT 2019 to 2024
Ram 3500 Special Service 2024
Ram 3500 Tradesman 2019 to 2024
| Weight | 329 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| core charge | 2500 |
| air_freight_prohibited | false |
| not_carb_approved | false |
| carb_acknowledgement_required | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| regular_stock | t |
| units_per_sku | 1 |
| upc | 990011409209 |
| brand | BD Diesel |
| part_number | 1064292SS |
