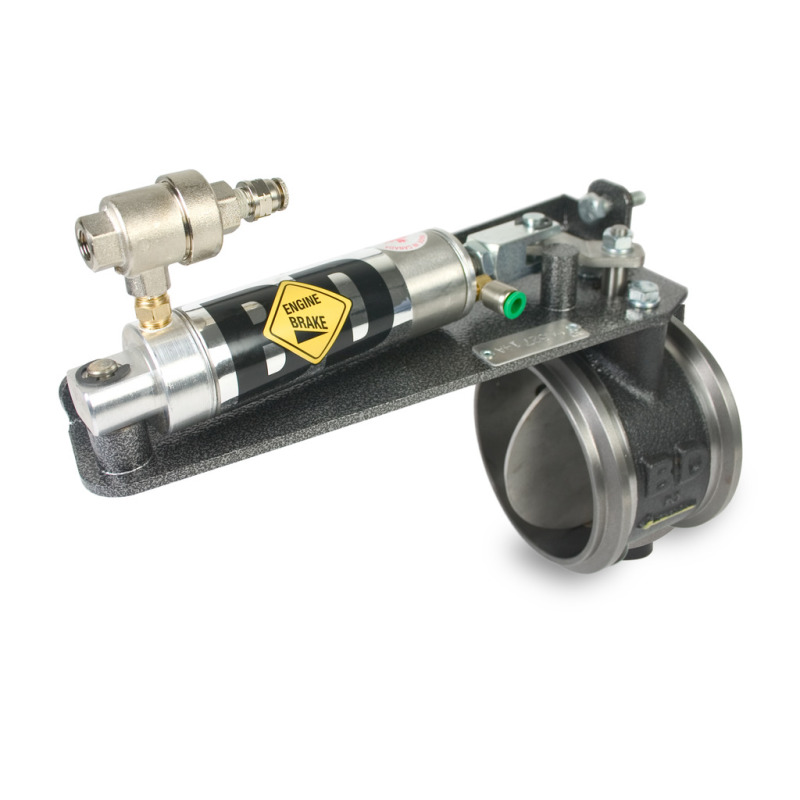

BD Diesel Brake – Part # 1027145
$2,017.99
Descending grades with trailers can be hazardous and tricky situations, resulting in over heated service and trailer brakes, that leads to brake fade, excessive wear, and costly unwarranted repairs. BD Engine brake has been the industries time proven VARIABLE REGULATING BACK-PRESSURE EXHAUST BRAKE.Controlled by a lighted On/Off toggle switch or optional stick-mounted rocker switch for manual transmissions, the BD brake communicates with the engines electronic idle verification board for quick engagement. Where it mounts: Most vehicle applications will either have BDs turbo-mount design which bolts in place of the factory elbow between the turbo and the exhaust system or the inline design mounts in the exhaust system between the engine and muffler/DPF/cat. The BD Brakes rugged cast-iron housing incorporates BDs exclusive AlumiBronze bushing and positive sealing piston ring, no blind holes for carbon and rust to form, and miles of leak free retarding. Brake valve is actuated by an air cylinder (newer models) or a powerful, three- in. vacuum cylinder (earlier models). The durable air compressor included in later model kits can even be used for other applications, such as air horns, air bags even air-ride fifth wheel hitches –it is that tough. Automatic-equipped trucks prior to 2006 require BDs programmable AutoLoc and PressureLoc kits to electronically control torque converter clutch engagement. This addition effectively reduces slippage, resulting in peak retarding performance as well as lower transmission temperatures. All BD Brake kits come complete with the brake, air compressor (where applicable), mounting hardware, port to monitor the brakes retarding performance, complete instructions and most models come with EGT port.

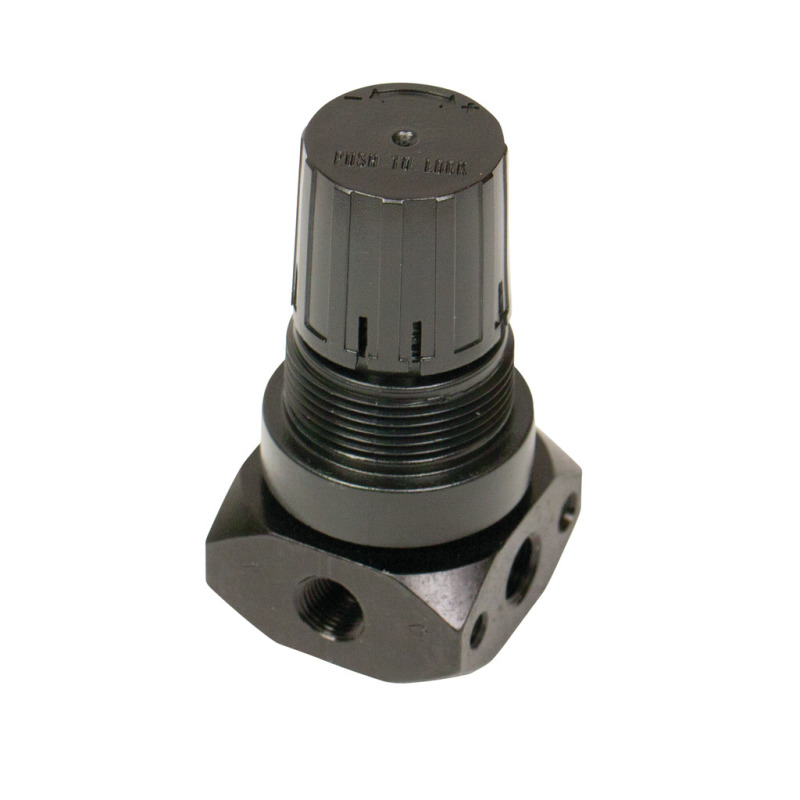

Exhaust Brake; Incl. Valve Assy/Air Pump Kit/Air Tubing/Regulator And Control Assy/Brake Control Module And Wiring Kit/Vacuum Pump Relocation Kit/Clamps;
- There’s a reason why the BD Brake is the most widely-recognized diesel exhaust brake in the industry: It’s the best! Compare it to the competition, and you’ll see why.
- Proven to stand-up under the harsh, high heat conditions of the exhaust environment
- Provides up to 150 retarding horsepower throughout the engine’s RPM range
- All mounting hardware are made of corrosion resistant stainless steel
- Mounting Hardware Are Made of Corrosion Resistant Stainless Steel
- Provides Up To 150 Retarding HP Throughout The Engines RPM Range
- Its The Best!! Compare To The Competition And You Will See Why
- Proven To Stand Up Under The Harsh High Heat Conditions
- BD’s exclusive Variable Orifice Technology
- Spring Loaded Cylinder Pressure Regulation
- BDs Exclusive Variable Orifice Technology
- BD’s exclusive alumibronze bushing
- BDs Exclusive Alumibronze Bushing
- 24 Months or 24000 Miles Warranty
- Stainless Steel Butterfly Shaft
- BD’s solid, offset butterfly
- BDs Solid Offset Butterfly
- Rugged, cast-iron housings
- Rugged Cast Iron Housings

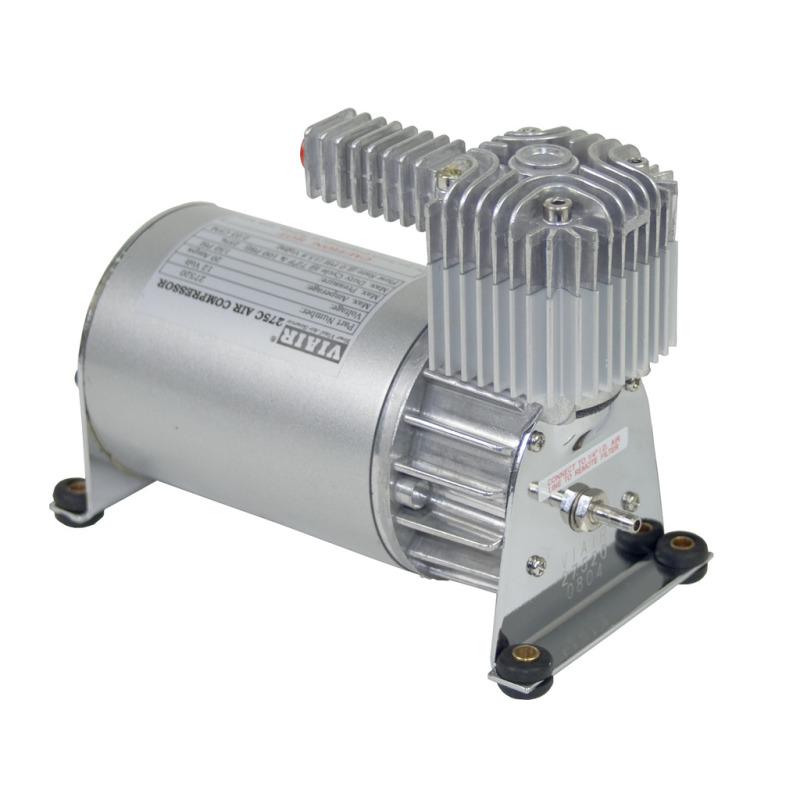

- Air compressor included
- Spring loaded cylinder
- Pressure regulation
- Piston Rings Seals
- Piston ring-seals
Out of stock
The BD Diesel 1027145 Brake system is designed for severe-duty applications, providing reliable engine braking performance for heavy trucks and fleet vehicles. This exhaust brake system features a rugged cast-iron housing and incorporates BD’s exclusive alumibronze bushing for maximum durability and leak-free operation. Controlled via a lighted On/Off toggle switch or an optional stick-mounted rocker switch, the system communicates with the engine’s electronic idle verification board for swift engagement, making it suitable for both manual and automatic transmissions. The design mounts either in place of the factory exhaust elbow between the turbo and the exhaust system or inline between the engine and muffler or particulate filter, ensuring compatibility across various vehicle configurations.
The system’s valve assembly is actuated by a high-strength air cylinder or vacuum cylinder, depending on the model, with the included air compressor capable of other auxiliary functions like air horns or air-ride components. It provides up to 150 retarding horsepower across the engine’s RPM range, significantly reducing brake wear during descending grades and heavy towing. Constructed with corrosion-resistant stainless steel mounting hardware and featuring BD’s innovative variable orifice technology, this exhaust brake ensures optimal control and thermal management under demanding conditions. The system also includes a monitoring port for retarding performance and an optional EGT port for additional diagnostics, making it a comprehensive solution for fleet and heavy-duty operators.
All components come with detailed instructions, and the system is backed by a 24-month or 24,000-mile warranty, emphasizing BD Diesel’s reputation for quality and durability in the industry. Whether used for everyday towing or severe fleet duty, this exhaust brake enhances safety, reduces brake fade, and extends the lifespan of your vehicle’s braking system, making it an essential upgrade for professional operators seeking dependable performance in demanding environments.
Features:
- Heavy-duty diesel exhaust brake providing up to 150 retarding horsepower throughout the engine’s RPM range
- Durable cast-iron housing with BD’s exclusive alumibronze bushing and corrosion-resistant stainless steel mounting hardware
- Controlled via toggle switch or optional rocker switch, with communication to engine’s idle verification system for quick engagement
- Includes valve assembly, air compressor, mounting hardware, monitoring port, and detailed installation instructions for comprehensive operation
Fitment:
Ford F-250 Super Duty Harley-Davidson Edition 2004 to 2007
Ford F-250 Super Duty King Ranch 2004 to 2007
Ford F-250 Super Duty Lariat 2003 to 2007
Ford F-250 Super Duty XL 2003 to 2007
Ford F-250 Super Duty XLT 2003 to 2007
Ford F-350 Super Duty Harley-Davidson Edition 2004 to 2007
Ford F-350 Super Duty King Ranch 2003 to 2007
Ford F-350 Super Duty Lariat 2003 to 2007
Ford F-350 Super Duty XL 2003 to 2007
Ford F-350 Super Duty XLT 2003 to 2007
| Weight | 29 lbs |
|---|---|
| Dimensions | 19.1 × 14.9 × 8.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025000148 |
| brand | BD Diesel |
| part_number | 1027145 |
