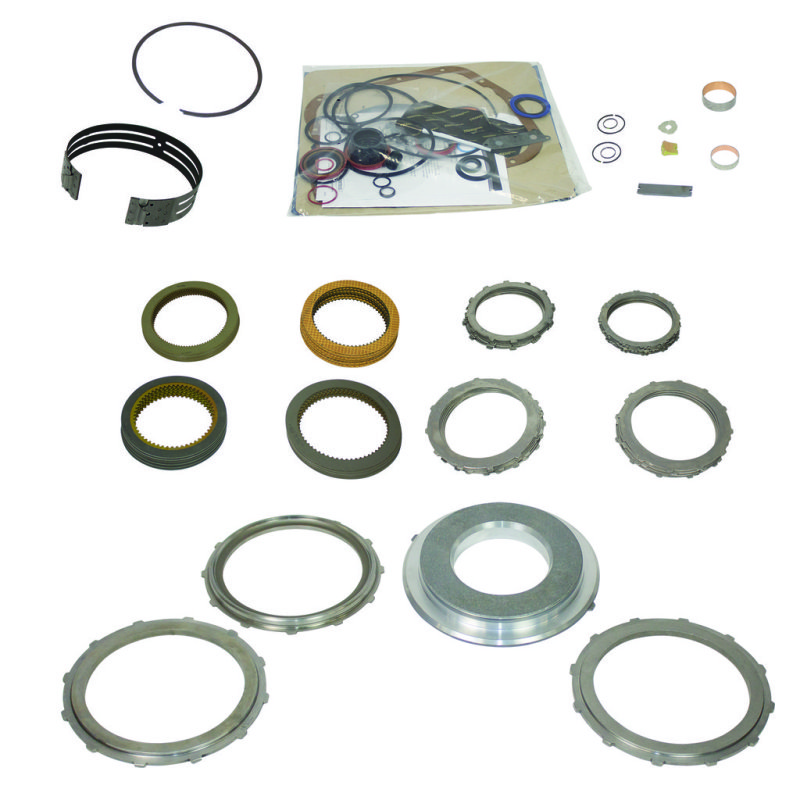

BD Diesel Built-It Trans Kit – Part # 1062012

Are you looking to rebuild your own transmission and needing some specialty parts to match your application? BD is offering a range of rebuild parts kits featuring the same parts we use in our own performance transmissions for the seasoned builder to complete the job. All kits include the basic rebuild parts and gaskets and have the added touches that range from stock HP up to our Stage 4 Master Kit. For an experienced builder these kits can be a big money saver as you will not have to deal with core charges and can save over 400 dollars in freight charges! All kits include the basic rebuild parts and gaskets; Band – High Temp/Energy – Raybestos; Band Anchor – Billet; Bushing – Front Clutch Drum 0.85; Bushing – Pump – Bronze W/Dimples; Clutch Disc; Friction – Front (Dir/Hi/Rev) Allomatic; Friction – O/D Allomatic; Friction – O/D Direct Borg Warner; Friction – Rear (Fwd) Borg Warner; Gasket Kit – Overhaul; Pressure Plate – Dir/Fwd (Frt) .145 in.; Pressure Plate – Dir/Fwd (Frt) .185 in.; BD Pressure Plate Forward (Rr) Beveled Machinded; BD Piston – Dir. Clutch (Frt) Machined; Snap Ring – Direct Clutch .074; Steel – Fwd (Dir/Hi/Rev); Steel – O/D Brake; Steel – O/D Dir .525 in.; Steel – Frt (Dir/Hi/Rev) Oversize; Strut – Front Band; Washer – Int. Shaft Thrust .052
Stage 2 Intermediate Built-In Transmission Kit; Incl. Basic Rebuild Parts/Gaskets/Hardware;

• Rcmd Option For 2002-2007 Dodge: 1060605 Electronic Upgrade Kit
• Rcmd Option For 2002-2007 Dodge: 1060602 Pressure Transducer
• Same Parts Used In Our Own Performance Transmissions
• All kits include the basic rebuild parts and gaskets
• Recommended Option BD Heavy Duty Transmission Pan
• BD Pressure Plate Forward (Rr) Beveled Machined
• Friction – Front (Dir/Hi/Rev) Allomatic
• BD Piston – Dir. Clutch (Frt) Machined
• Pressure Plate – Dir/Fwd (Frt) .145″
• Pressure Plate – Dir/Fwd (Frt) .185″
• Band – High Temp/Energy – Raybestos
• Bushing – Pump – Bronze W/Dimples
• Friction – Rear (Fwd) Borg Warner
• Friction – O/D Direct Borg Warner
• Steel – Frt (Dir/Hi/Rev) Oversize
• Bushing – Front Clutch Drum 0.85
• 12 Month Or 12000 Mile Warranty
• Washer – Int. Shaft Thrust .052
• Suggested Option BD Valve Body
• Snap Ring – Direct Clutch .074
• Steel – Fwd (Dir/Hi/Rev)
• Friction – O/D Allomatic
• Gasket Kit – Overhaul
• Steel – O/D Dir .525″
• Band Anchor – Billet
• Strut – Front Band
• Steel – O/D Brake
• Clutch Disc
