BD Diesel Built-It Transmission Kit – Part # 1062025
$1,869.99

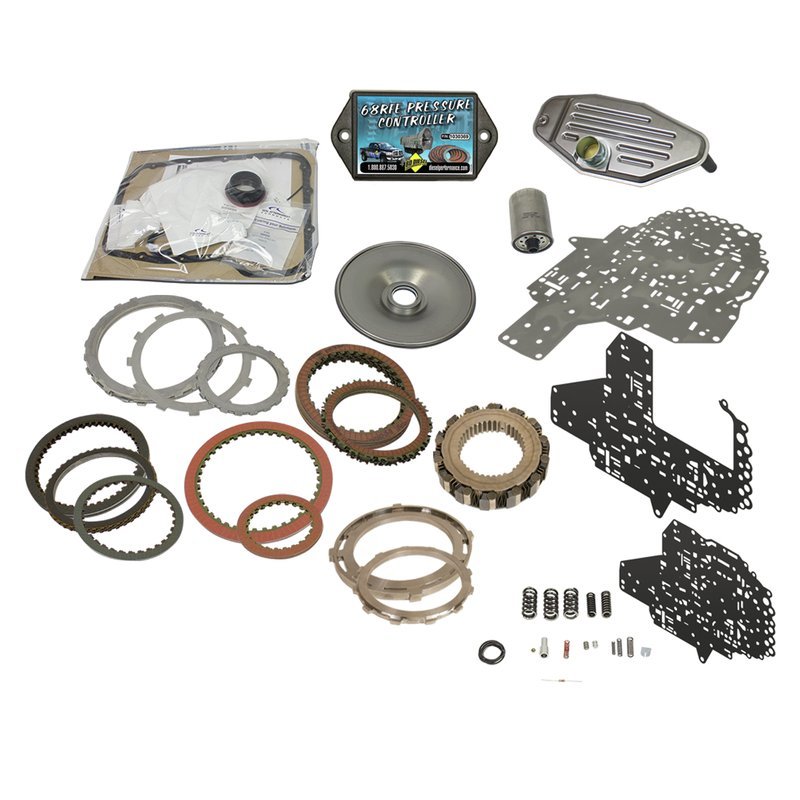

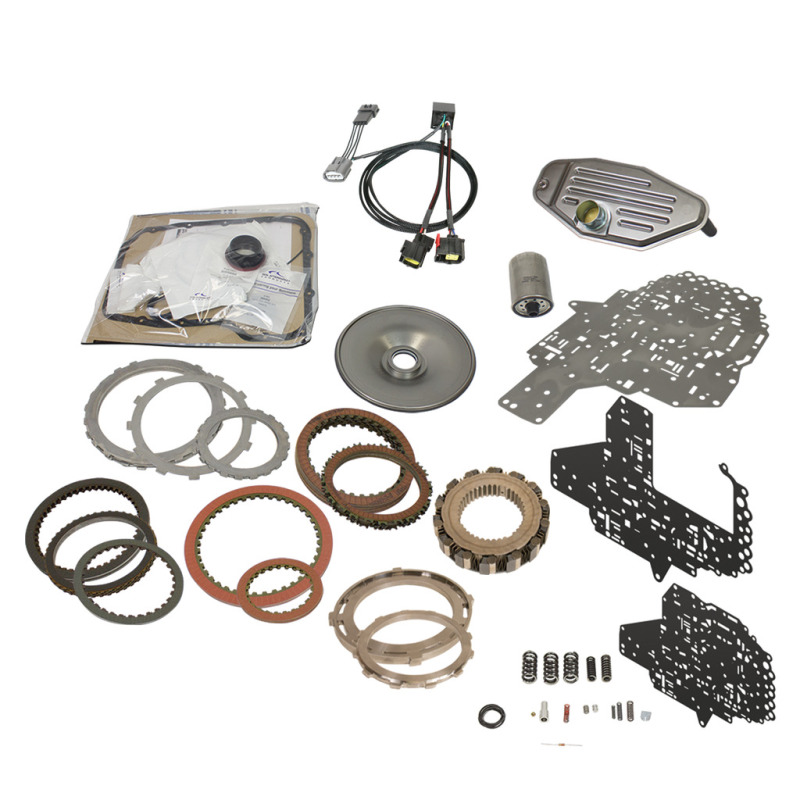

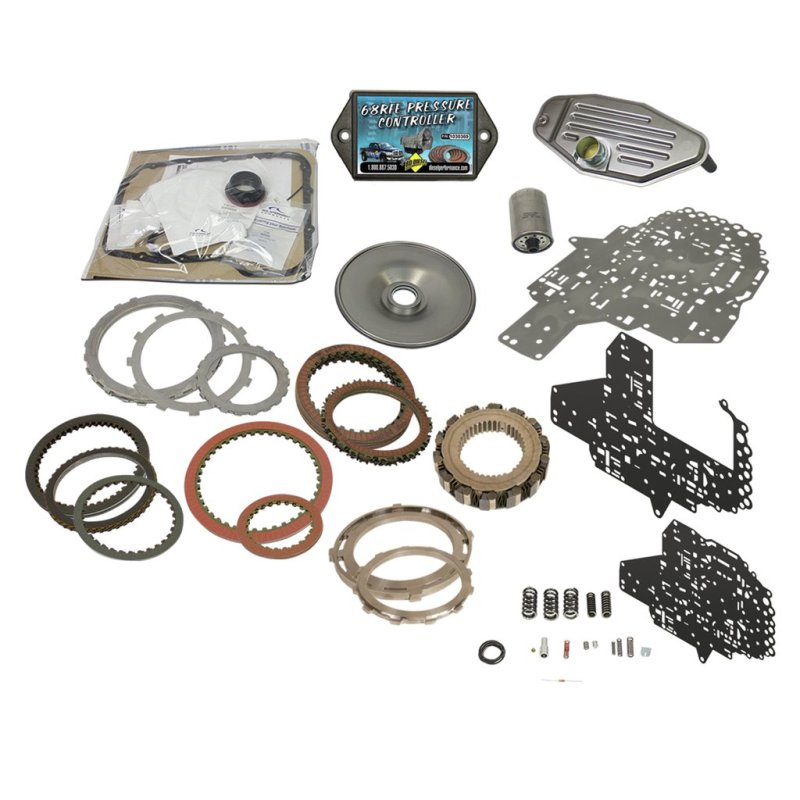

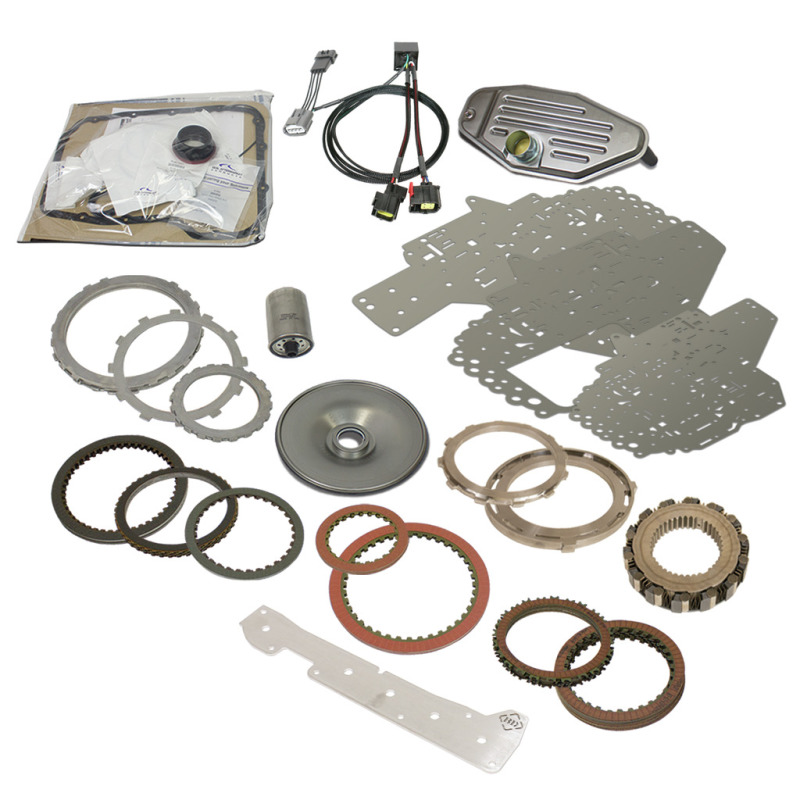

Same parts used in our own performance transmissions; Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks; All kits include the basic rebuild parts and gaskets; Stiffer Billet Intermediate Reaction Plate; Stiffer Billet OverDrive/Rev Reaction Plate; 2C Clutch Friction Raybestos; 2C Clutch Steel; 4C Clutch Friction Raybestos; 4C Clutch Steel; Filter – Spin On; O/D Gear Friction Raybestos; O/D Gear Steel; One-Way Clutch HD Upgrade; BD Pressure Plate – Lower Machined; BD Pressure Plate – Rev Machined; BD ProTect68 Kit; Pump Cover; Valve Body Accumulator Plate; Reverse Clutch Friction Raybestos; Reverse Friction; Reverse Steel; Filter; Low Reverse Steel; Overhaul Kit
Stage 4 Master Built-It Transmission Kit; Incl. Basic Rebuilt Parts/ProTect 68/Gaskets/Hardware;
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Pressure Control module delivers up to 250psi clutch apply pressure at full throttle
- Stiffer Billet Intermediate Reaction Plate, Billet Over Drive/Rev Reaction Plate
- Qty 3: 2C Clutch Friction, 2C Clutch Steel, 4C Clutch Friction, 4C Clutch Steel
- Seal – Solenoid Pack Connector, 4wd Output Shaft, 2wd Output Shaft, Input Shaft
- Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
- Over Drive clutches 17% increase and Under Drive clutches 20% increase
- Up To 80 Percent Higher Clutch Apply Pressures Over Stock Unit
- Seal Kit – 2-4C, Input Drum, Solenoid Pack, Internal, External
- Heavy duty accumulator plate to prevent accumulator blowout
- Billet OD/Reverse Selector Plate, OD/UD Reaction Plate
- Same Parts Used In Our Own Performance Transmissions
- Qty 7: Reverse Clutch Friction, Reverse Clutch Steel
- Gasket Kit – Oil Cooler, Oil Pan, Solenoid Pack
- Qty 15: OD Clutch Friction, OD Clutch Steel
- 12 Month Or 12000 Mile Warranty
- Billet 4C Spring Retaining Ring
- Upgraded One Way Clutch/Sprag
- Qty 2: Check Balls 1/4in
- Filter – Pan, Spin On
- O-Ring – pump Cover
- Pump Cover
Out of stock
The BD Diesel Built-It Transmission Kit with part number 1062025 is designed for heavy-duty applications, offering improved durability and performance for 2007-2016 Dodge Ram 2500 trucks equipped with the 68RFE transmission. This comprehensive rebuild kit features high-quality components engineered to withstand demanding towing and fleet service, ensuring long-term reliability. The kit includes custom valve body separator plates with gaskets that increase line pressure and prevent internal cross leaks, optimizing hydraulic flow and shift quality. Additionally, it incorporates a variety of rebuild parts such as friction clutches, steel plates, and upgraded reaction plates made from billet aluminum for superior strength and resistance to distortion under load. The inclusion of a pressure control module capable of delivering up to 250 psi clutch apply pressure ensures robust engagement, even under severe duty cycles. The BD ProTect68 kit also features heavy-duty components like a billet OD/reverse selector plate, an upgraded one-way clutch sprag, and a high-capacity clutch friction set, all aimed at enhancing torque capacity and drivetrain longevity. This kit is suitable for technicians and fleet operators seeking a high-performance rebuild that restores factory reliability with additional strength for towing and power upgrades. Proper installation requires adherence to manufacturer specifications and thorough cleaning and resurfacing of components to ensure optimal engagement and durability. Whether used for routine rebuild or high-performance applications, this BD Diesel kit delivers the quality and reliability expected from a leading heavy-duty transmission component manufacturer.
Features:
- Heavy-duty diesel and fleet torque capacity with reinforced clutch components
- Premium friction materials designed for smooth and consistent engagement
- Enhanced thermal capacity to prevent clutch slippage under severe towing conditions
- Long-term drivetrain reliability with upgraded reaction plates and accumulator components
Fitment:
Dodge Ram 2500 Laramie 2007 to 2010
Dodge Ram 2500 SLT 2007 to 2010
Dodge Ram 2500 ST 2007 to 2010
Dodge Ram 2500 SXT 2008 to 2010
Dodge Ram 2500 TRX 2010
Dodge Ram 3500 Laramie 2007 to 2010
Dodge Ram 3500 SLT 2007 to 2010
Dodge Ram 3500 Sport 2007
Dodge Ram 3500 ST 2007 to 2010
Dodge Ram 3500 SXT 2008 to 2009
Ram 2500 Big Horn 2013 to 2018
Ram 2500 Laramie 2011 to 2018
Ram 2500 Laramie Limited 2014 to 2015
Ram 2500 Laramie Longhorn 2011 to 2018
Ram 2500 Limited 2016 to 2018
Ram 2500 Lone Star 2013 to 2015
Ram 2500 Outdoorsman 2012 to 2016
Ram 2500 SLT 2011 to 2018
Ram 2500 ST 2011 to 2013
Ram 2500 Tradesman 2013 to 2018
Ram 3500 Big Horn 2013 to 2018
Ram 3500 Laramie 2011 to 2018
Ram 3500 Laramie Limited 2014 to 2015
Ram 3500 Laramie Longhorn 2011 to 2018
Ram 3500 Limited 2016 to 2018
Ram 3500 Lone Star 2013 to 2015
Ram 3500 Lone Star 2017
Ram 3500 SLT 2011 to 2018
Ram 3500 ST 2011 to 2013
Ram 3500 Tradesman 2013 to 2018
| Weight | 22.1 lbs |
|---|---|
| Dimensions | 21.7 × 15.4 × 10.3 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| regular_stock | t |
| units_per_sku | 1 |
| upc | 019025018327 |
| brand | BD Diesel |
| part_number | 1062025 |
