BD Diesel Exhaust Brake Variable Vane – Part # 2001100
$1,004.99
The variable vane turbocharger design used in the 2004.5-up Duramax engines to reduce turbo lag and increase power can also help slow you down. BD utilizes this technology to electronically close off the vanes which can create up to 130 retarding horsepower. This braking force will help to maintain your speeds on descents and curves, giving you better control of your truck and load.While in Tow/Haul mode, switch BDs Variable Vane Brake (VVB) on and every time you let off the throttle, it will close the variable vanes in the turbo, developing exhaust back pressure in the engines combustion chamber which creates resistance against the piston from reaching top dead center.The VVB rotary switch offers three different modes included automatic moderate and aggressive downshifting programs for the Allison transmission to give better weight control. Exhaust braking also works in Allison manual shift selections. The VVB integrates with the cruise control to automatically accelerate and decelerate to maintain vehicle speed.Easily and simply installs by plugging into existing factory ports and by mounting the rotary switch on your dash. All of these features in one package which with some competitors would require two separate ones at nearly twice the price and twice as long to install. Now that is value added engine retarding at its engineered finest.

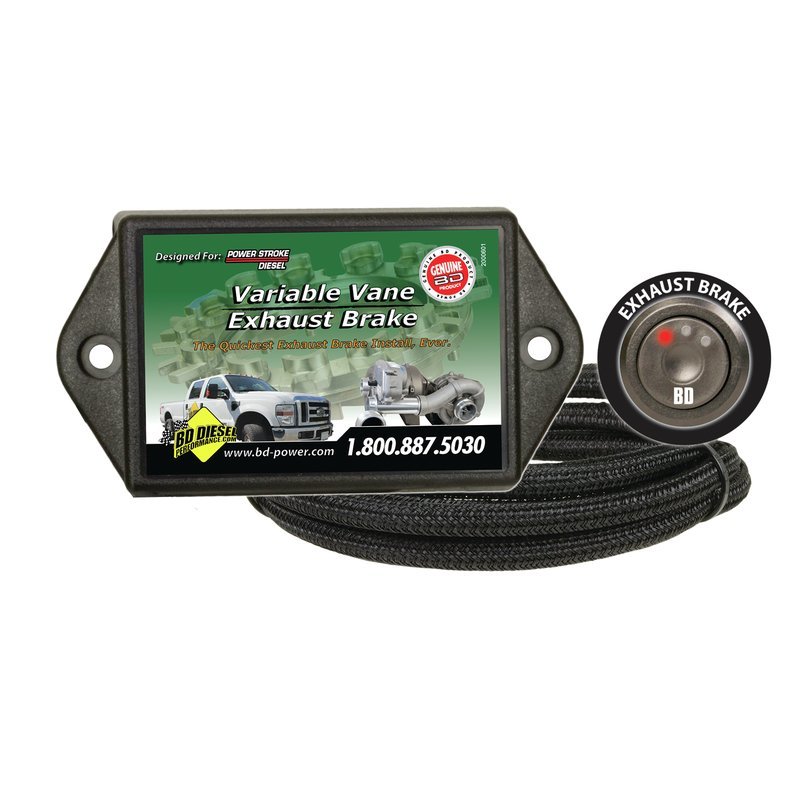

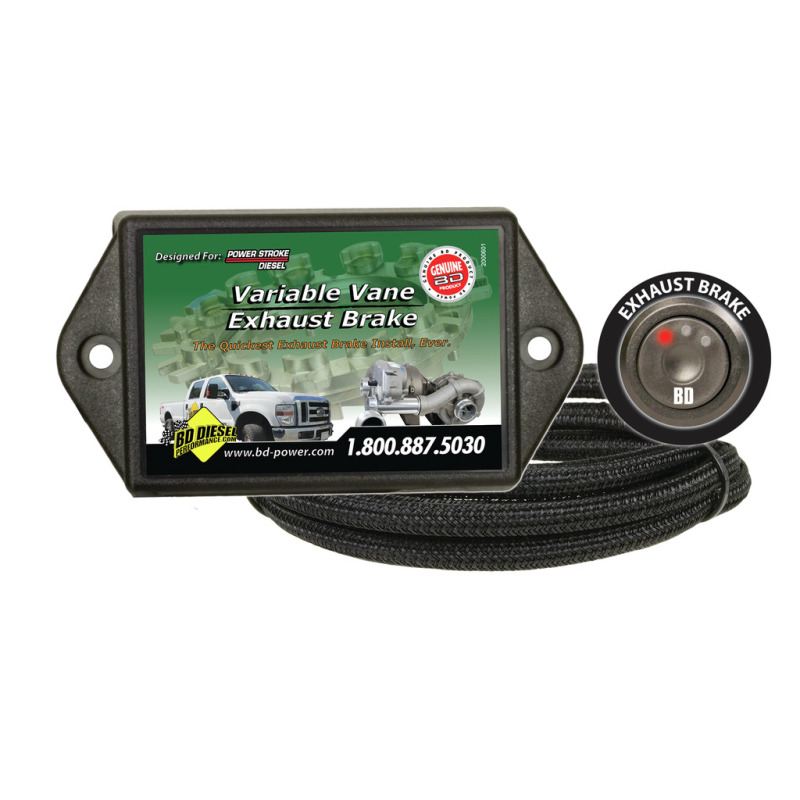

Exhaust Brake; Variable Van; Incl. VVB Module/Harness/Push Button Switch/Switch Bracket/Switch Decal/Tape/Dielectric Grease/Hardware;
- Integrated with the cruise control to automatically accelerate and decelerate to maintain vehicle speed
- Different modes including automatic downshifting keeping engine rpm and engine retarding force high
- Electronically closes off turbocharger vanes to provide engine braking
- Electronically Closes Off Turbo Vanes To Provide Engine Braking
- Integrated with CC To Auto Accel./Decelerate To Maintain Speed
- Easily Installs By Plugging Into Existing Factory Ports
- Helps Maintain Speeds On Descents And Curves
- Delivers Up T0 70 PSI Exhaust Backpressure
- Delivers up to 70psi exhaust backpressure
- Can Create Up To 130 Retarding Horsepower
- Different Modes Incl. Auto Downshifting
- Better control of your truck and load.
- Better Control Of Your Truck And Load
- 12 Months r 24000 Mile Warranty
- In-dash ‘Push To Engage’ Button
- In-Dash Push To Engage Button
5 in stock
The BD Diesel Variable Vane Exhaust Brake (Part # 2001100) is engineered to enhance your Ford 6.4L Super Duty truck’s control and safety during downhill driving and curve navigation. Utilizing advanced turbocharger vane technology, this exhaust brake electronically closes off the vanes to generate up to 70 PSI of exhaust backpressure, creating significant engine retarding force of up to 130 horsepower. This feature allows for smooth, controlled deceleration without relying solely on conventional braking systems, reducing brake wear and increasing overall vehicle safety.
This exhaust brake is designed for seamless integration with your vehicle’s existing systems. It plugs directly into factory ports and includes a push-to-engage switch mounted conveniently on your dash, making installation straightforward and time-efficient. The system’s three modes—including automatic, moderate, and aggressive downshifting—are synchronized with your Allison transmission, providing optimal engine braking tailored to your driving conditions. When activated, it works in both automatic and manual shift modes, offering a versatile solution for fleet operators and heavy-duty applications. Furthermore, the system’s integration with cruise control allows automatic adjustments to maintain your desired speed, enhancing driving comfort and efficiency.
Constructed for durability and reliability, the BD Diesel exhaust brake is built to withstand the rigors of heavy-duty towing and fleet operations. It offers a comprehensive package with all necessary components such as the VVB module, harness, switch, bracket, decal, tape, dielectric grease, and hardware, providing value and convenience. This product is ideal for commercial drivers seeking improved control and safety during demanding operations, ensuring your vehicle maintains optimal performance under heavy loads and challenging terrains. With a 12-month or 24,000-mile warranty, the BD Diesel Variable Vane Exhaust Brake is a robust addition to your fleet maintenance arsenal, delivering precise engine retarding power when you need it most.
Features:
- Engine retarding force up to 130 horsepower for enhanced control during downhill and curve driving
- Generates up to 70 PSI exhaust backpressure to assist braking and reduce brake wear
- Electronically closes turbo vanes to provide smooth engine braking and integration with vehicle systems
- Includes multiple modes with automatic downshifting and cruise control integration for tailored operation
Fitment:
Ford F-250 Super Duty Cabela’s 2009 to 2010
Ford F-250 Super Duty FX4 2008 to 2009
Ford F-250 Super Duty Harley-Davidson Edition 2008 to 2010
Ford F-250 Super Duty King Ranch 2008 to 2010
Ford F-250 Super Duty Lariat 2008 to 2010
Ford F-250 Super Duty XL 2008 to 2010
Ford F-250 Super Duty XLT 2008 to 2010
Ford F-350 Super Duty Cabela’s 2009 to 2010
Ford F-350 Super Duty FX4 2008 to 2009
Ford F-350 Super Duty Harley-Davidson Edition 2008 to 2010
Ford F-350 Super Duty King Ranch 2008 to 2010
Ford F-350 Super Duty Lariat 2008 to 2010
Ford F-350 Super Duty XL 2008 to 2010
Ford F-350 Super Duty XLT 2008 to 2010
| Weight | 1.2 lbs |
|---|---|
| Dimensions | 8.7 × 6.6 × 2.4 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| regular_stock | t |
| units_per_sku | 1 |
| upc | 019025012158 |
| brand | BD Diesel |
| part_number | 2001100 |
