BD Diesel Fuel Bowl Delete – Part # 1050370
$186.99

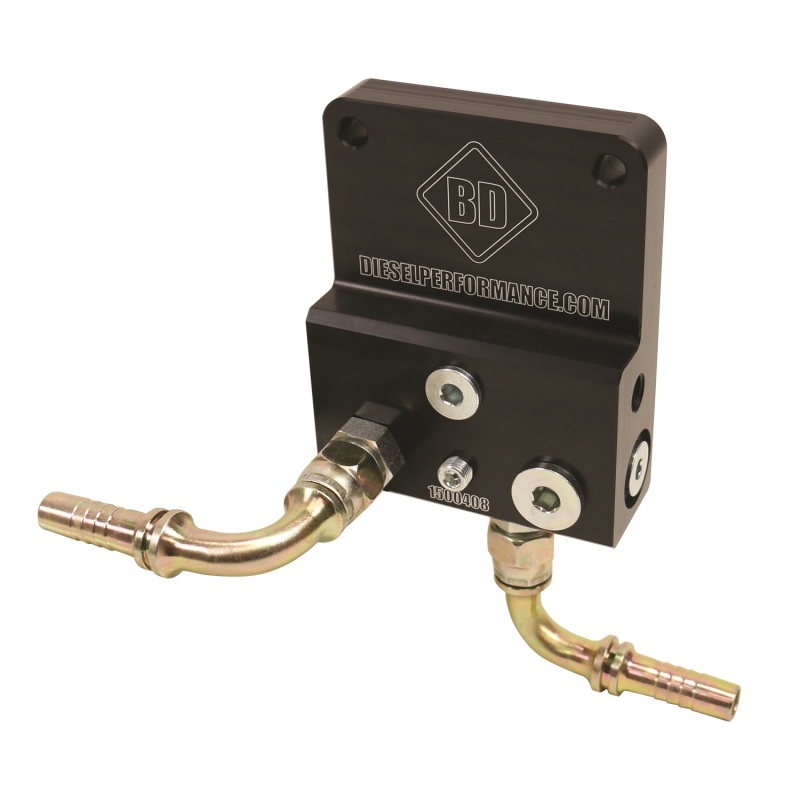

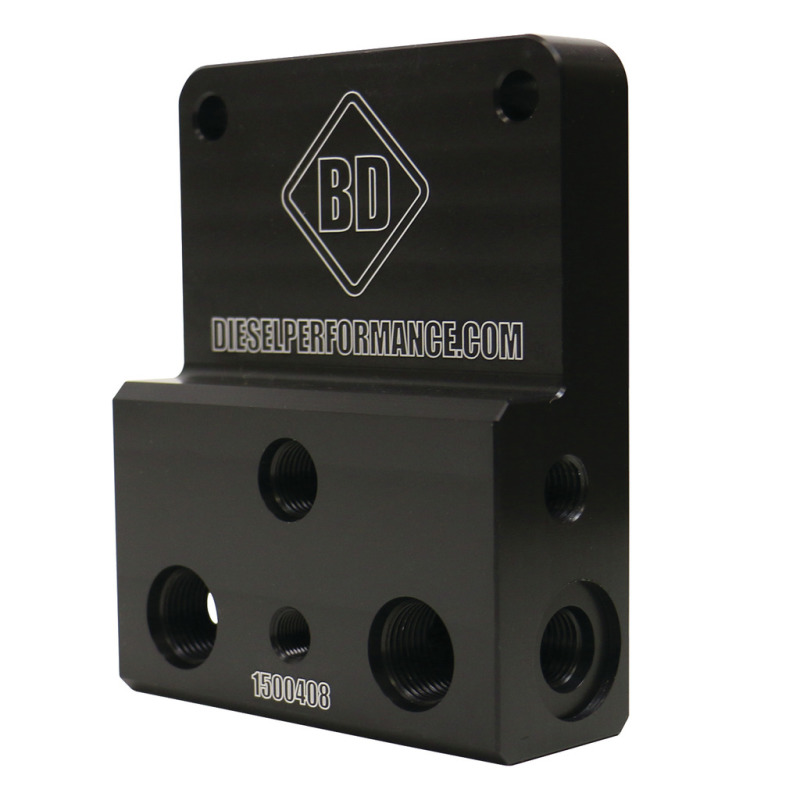

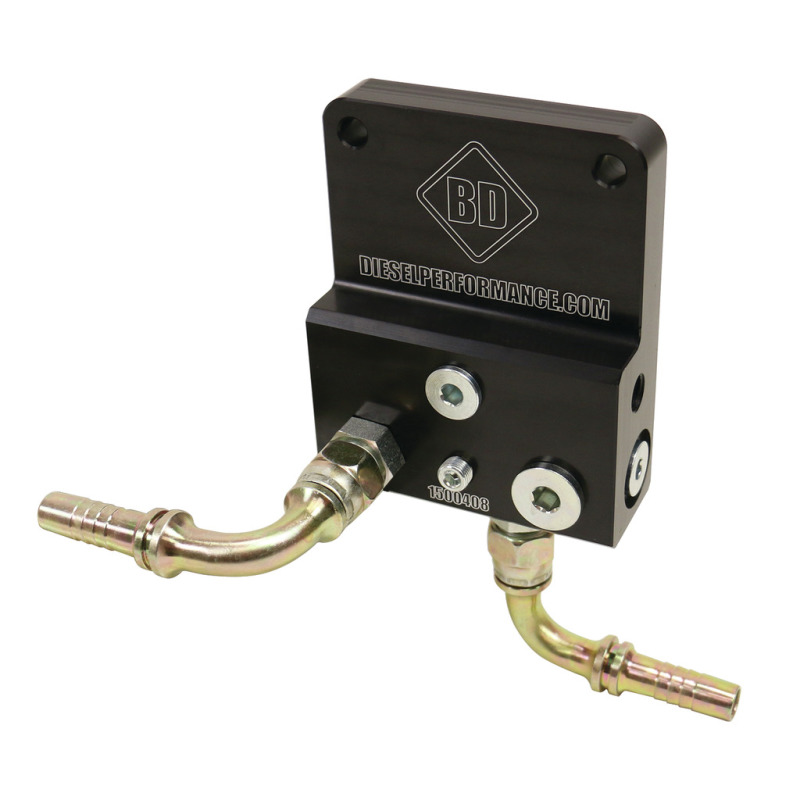

When producing more power from a Dodge RAM 2500/3500 with a Cummins engine, more fuel is required. To supply the injection pump with additional fuel, upgraded lift pumps are added, often with additional filters and water separators to ensure the fuel is always clean. With these upgrades, the factory fuel filter assembly becomes a redundant restriction, or is bypassed completely. The BD Diesel Fuel Bowl Delete kit is designed to remove the factory fuel filter assembly, and allow the addition of a fuel pressure sensor. The kit can also be used as a distribution block for applications using dual CP3 kits. Please note that this kit is intended to be an accessory in addition to an auxiliary lift pump and filter assembly. If the factory CP3 pump feed line has not been upgraded to 1/2-inch hose, an upgraded feed line assembly will be required. See optional accessories for details. WARNING: The use of this kit without auxiliary filters and water separators installed is strongly discouraged. Without a fuel filter in place, the injection system on the diesel engine could become damaged.

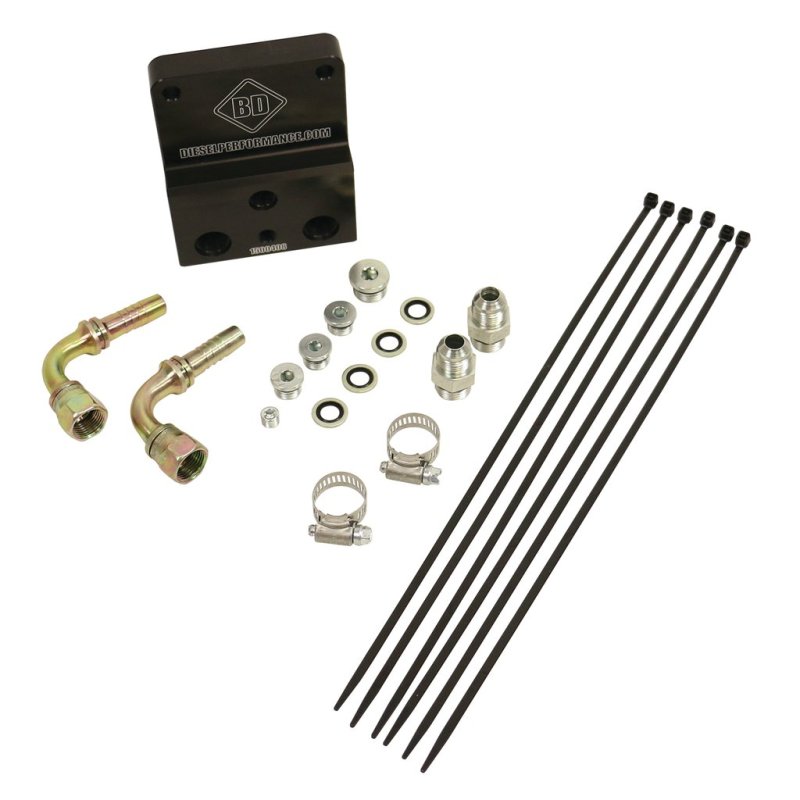

Fuel Distribution Block; For Use w/Flow Max Lift Pump Systems; Incl. Supply Pump Pressure Sensor Port/Fittings/Clamps;
- Great for high fuel flow applications and performance lift pump kits such as FASS, AirDog and BD Flow-Max
- Designed for performance single CP3 pumps or dual CP3 set-ups
- Auxiliary Supply And Return Ports For Dual Fuel Supply
- Billet Aluminum Block Replaces Fuel Filter And Bowl
- Removes Restriction And Increases Fuel Flow
- Supply Pump Pressure Sensor Port
- Includes Fittings And Clamps
1 in stock
The BD Diesel Fuel Bowl Delete kit is designed for high-performance Dodge Ram 2500 and 3500 trucks equipped with Cummins engines, specifically models from 2006 to 2009. This billet aluminum fuel distribution block replaces the factory fuel filter assembly and bowl, effectively removing restrictions to increase fuel flow for enhanced engine performance. It is ideal for use with performance lift pump systems such as FASS, AirDog, and BD Flow-Max, supporting both single and dual CP3 pump configurations. The kit includes a supply pump pressure sensor port, fittings, and clamps, facilitating easy installation and reliable fuel system monitoring. When used with upgraded fuel lines—specifically 1/2-inch hose feed lines—the BD Fuel Bowl Delete ensures optimal fuel delivery, supporting higher horsepower and torque demands. It functions as a distribution point for auxiliary filters and water separators, providing a clean fuel supply to the injection system while reducing potential restriction points that could limit power output. Proper installation requires auxiliary filters to prevent debris from reaching the injection pump, as operating without a filter can cause severe engine damage. This component is essential for fleet owners and enthusiasts seeking improved fuel flow and system reliability in demanding applications, and it is compatible with a variety of aftermarket lift pump setups for maximum flexibility in tuning your diesel truck’s fuel system.
Features:
- Designed for high fuel flow applications and performance lift pump kits such as FASS, AirDog, and BD Flow-Max
- Supports performance single CP3 pumps or dual CP3 setups for increased horsepower
- Includes auxiliary supply and return ports for dual fuel supply configurations
- Billet aluminum construction replaces factory fuel filter and bowl, reducing restrictions and increasing fuel flow
- s a supply pump pressure sensor port for system monitoring and diagnostics
- Includes fittings and clamps for a complete installation
Fitment:
Dodge Ram 2500 Laramie 2003
Dodge Ram 2500 Laramie 2005 to 2009
Dodge Ram 2500 SLT 2003 to 2009
Dodge Ram 2500 Sport 2006 to 2007
Dodge Ram 2500 ST 2003 to 2009
Dodge Ram 2500 SXT 2008 to 2009
Dodge Ram 2500 TRX4 2006 to 2007
Dodge Ram 3500 Laramie 2003 to 2009
Dodge Ram 3500 SLT 2003 to 2009
Dodge Ram 3500 Sport 2006 to 2007
Dodge Ram 3500 ST 2003 to 2009
Dodge Ram 3500 SXT 2008 to 2009
| Weight | 2 lbs |
|---|---|
| Dimensions | 8.8 × 6.6 × 2.3 in |
| air_freight_prohibited | false |
| not_carb_approved | true |
| carb_acknowledgement_required | true |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025019300 |
| brand | BD Diesel |
| part_number | 1050370 |
