BD Diesel Iron Horn Turbocharger Kit – Part # 1045170
$2,550.99
If you are looking for an easy economical turbo upgrade, or, replace your tired turbo and aging exhaust manifold, then BD’s Iron Horn series for your 3rd generation 5.9L Cummins offers a clean, drop-in installation. Featuring BorgWarner SX-E cartridges and 2-piece pulse exhaust manifold, BD’s Iron Horn turbocharger kits are engineered to give optimal performance while reducing EGT’s and high drive pressures. The Iron Horn is available in a number of configurations to match your performance level without compromising drivability.

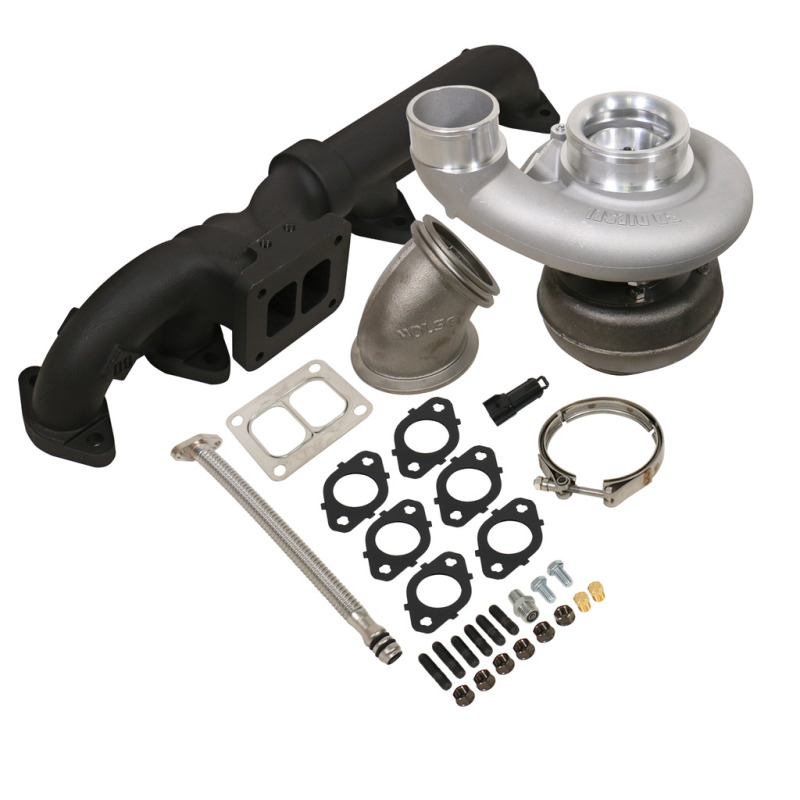

Iron Horn Turbocharger Kit; S361SXE/76 .91AR; Flow 77 lb/min.; Incl. Turbo/ORBM16x1.5 Plug/Oil Drain Gasket/Fitting/Bolt/T4 Manifold Kit/T4 Gasket Kit;
- No extra piping required, it drops in place for an easy, clean installation
- Replace your factory turbo with a S300 SX-E Borg Warner T4 flange turbo
- Kit includes a 5.9L 2-piece BD high flow pulse T4 manifold and gaskets
- Increase airflow for more power, response, and reliability
- Approximate rated 500hp (depending on truck configuration)
- Increase Airflow For More Power/Response/Reliability
- Replace w/S300 SX-E Borg T4 Flange Turbo
- Comp Wheel: 61.44mm 2.42in
- Turbine Wheel: 76mm 2.99in
- No Extra Piping Required
- Easy Clean Installation
- Approximate Rated 500HP
- Flow: 77 Lb./min
- A/R Ratio: 0.91
Out of stock
The BD Diesel Iron Horn Turbocharger Kit, part number 1045170, is designed for 3rd generation 5.9L Cummins engines in Dodge Ram trucks from 2006 to 2007. Featuring a BorgWarner SX-E cartridge and a 2-piece pulse exhaust manifold, this kit offers a straightforward, drop-in installation that eliminates the need for additional piping. The included high-flow pulse T4 manifold and gaskets ensure optimal airflow, which enhances power, response, and overall engine reliability. With an approximate horsepower rating of 500, depending on your vehicle configuration, this upgrade is ideal for those seeking increased performance without sacrificing drivability.
Features:
- No extra piping required, it drops in place for an easy, clean installation
- Replaces factory turbo with a S300 SX-E BorgWarner T4 flange turbo
- Includes a 5.9L 2-piece BD high flow pulse T4 manifold and gaskets
- Increases airflow for more power, response, and reliability
- Approximate rated 500 horsepower
- Flow capacity of 77 lb/min
- A/R ratio of 0.91 for optimized spool-up and efficiency
- Constructed to meet heavy-duty diesel performance standards
Fitment:
Dodge Ram 2500 Laramie 2003
Dodge Ram 2500 Laramie 2005 to 2007
Dodge Ram 2500 SLT 2003 to 2007
Dodge Ram 2500 Sport 2006 to 2007
Dodge Ram 2500 ST 2003 to 2007
Dodge Ram 2500 TRX4 2006 to 2007
Dodge Ram 3500 Laramie 2003 to 2007
Dodge Ram 3500 SLT 2003 to 2007
Dodge Ram 3500 Sport 2006 to 2007
Dodge Ram 3500 ST 2003 to 2007
| Weight | 63 lbs |
|---|---|
| Dimensions | 45 × 13.5 × 13.5 in |
| air_freight_prohibited | false |
| not_carb_approved | true |
| carb_acknowledgement_required | true |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025021044 |
| brand | BD Diesel |
| part_number | 1045170 |
