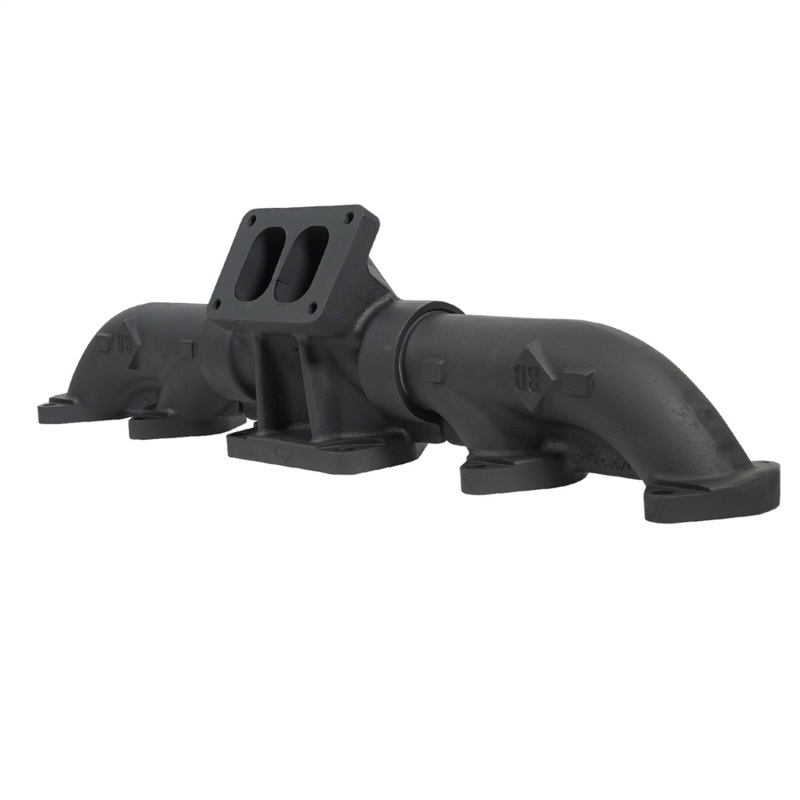

BD Diesel Pre-2002 ISX / Cummins Signature 600 ISX T6 Ceramic Coated Exhaust Manifold – Part # 1048006
$2,141.99
BD Diesel Performance is unique among its peers in that it designs, manufactures and distributes a wide range of products specifically engineered for performance diesel applications. Located in Abbotsford, British Columbia, Canada, BD’s state-of-the-art facility covers 65,000 square feet, and employs 60 plus highly-trained individuals. The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning diesel pick-up truck market. BD’s roots, however, actually date back to 1972, when Valley Fuel Injection, Ltd. first opened its doors. Today, Valley Fuel Injection and BD Diesel Performance are one, with eight specialty divisions that focus on diesel power train components: Fuel Injection Calibration Department, Exhaust Brake Manufacturing, Electronic Circuit Design and Assembly, Transmission and Torque Converter Design and Remanufacturing, Turbocharger Design, Installation and Research and Development. BD’s comprehensive approach to the diesel performance aftermarket ensures not only quality products, but educated dealers and satisfied customers. Thank you for your interest in BD Diesel Performance!
Exhaust Manifold; Ceramic Coated; ISX Cummins T6; Signature 600/ISX Pre-02;

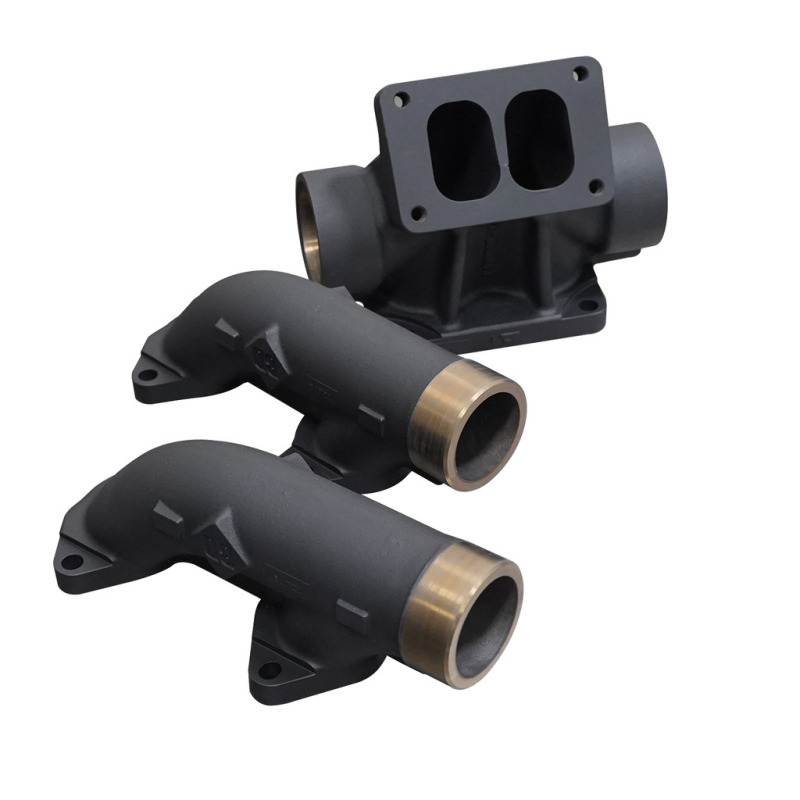

- Three Piece Thick Walled Durable High-Silicon Ductile Iron Casting Prevents Cracking
- ISX HD Manifold Fits Borg Warner 171700; 171710 And Factory T6 Holset Turbos
- Includes the longest stud and spacer kit that fits across all 8-cylinders

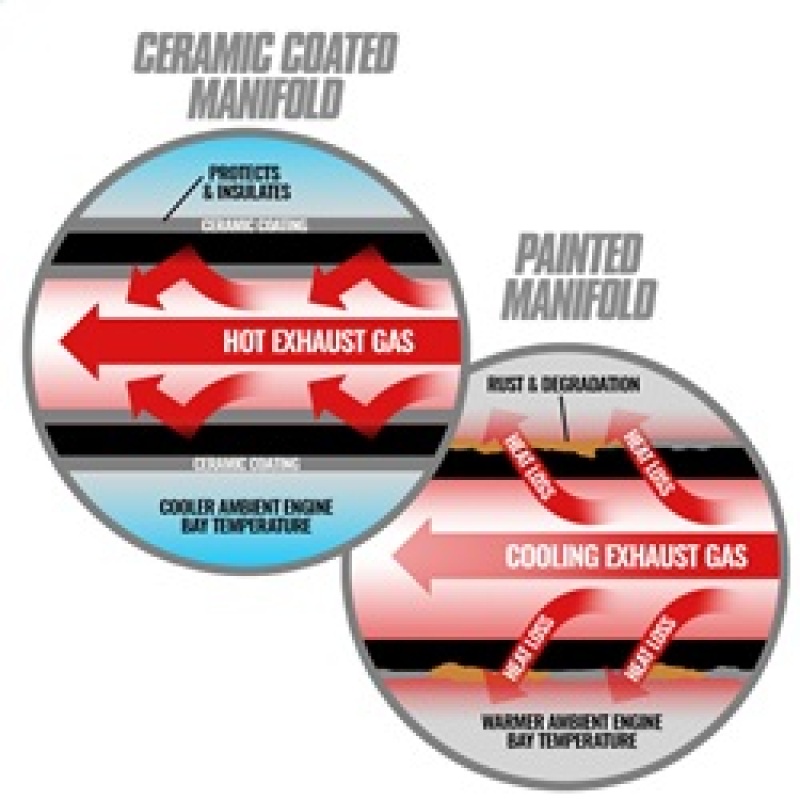

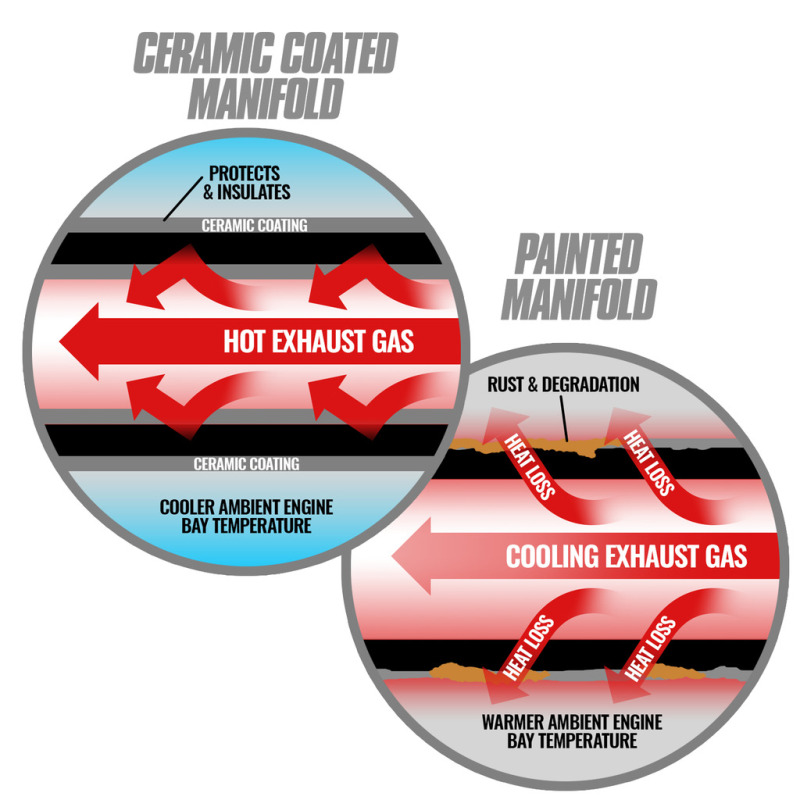

- Ceramic Coated Inside And Out; For Smooth Finish And Temperature Control
- Average flow increase of 9.3% (OEM avg 173cfm/port BD avg 189cfm/port)
- Includes exhaust manifold and cross over tube gaskets

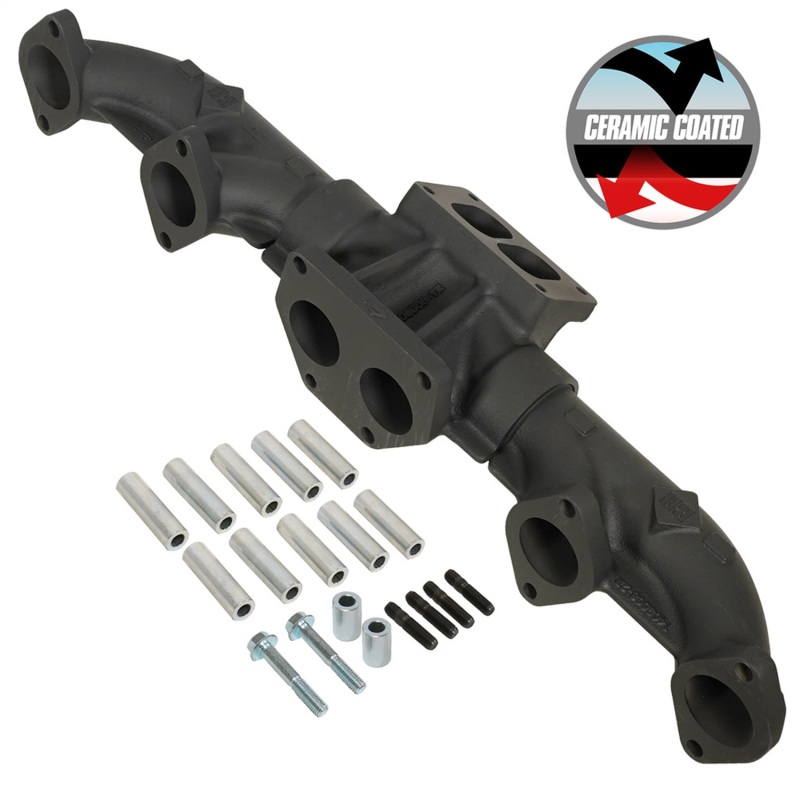

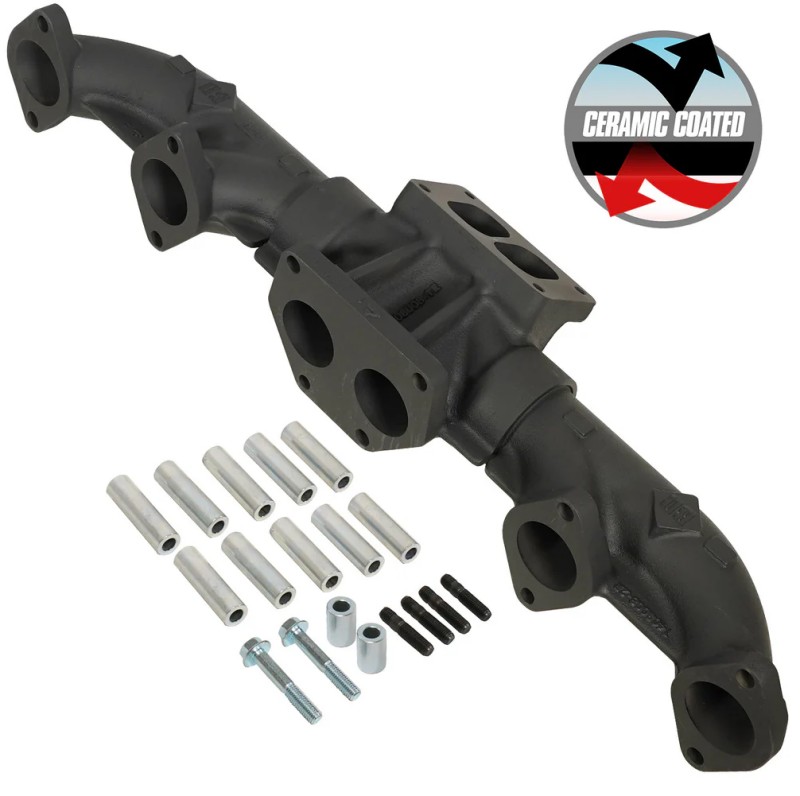

- Includes 16 studs and spacers for BD Scorpion Kits
- 75% thicker walls retain heat and prevents warping
- Longer exhaust studs improve thermal durability
- High Temperature Rating; Up To 1800 Degrees F
- Designed using computation fluid dynamics
- Replaces OEM Part #DC3Z9431A (Left Side)
- High temperature POR 15 black coated
- SEMA Certification No. SC-BDD01-0050
- Thick spacers are black oxide coated
- Perfect for BD Scorpion Turbo Kit
- Exhaust ports are gasket matched
- Machined thicker bolting flange
- High-silicon ductile cast iron
- CARB EO No. D-553-17
- 50-STATE LEGAL!
Out of stock
This BD Diesel Performance exhaust manifold is specifically engineered for pre-2002 ISX Cummins engines and Signature 600/ISX T6 applications. Crafted from high-silicon ductile iron, it features a three-piece thick-walled design that prevents cracking and ensures durability under high thermal loads. The ceramic coating on both the inside and outside surfaces provides a smooth finish while offering superior temperature control, withstanding temperatures up to 1800 degrees Fahrenheit. This design enhances exhaust flow, contributing to an average increase of 9.3% in flow capacity compared to OEM standards, which translates into improved engine efficiency and performance.
Designed with precision, the manifold includes gasket-matched exhaust ports, longer studs for enhanced thermal durability, and a machined thicker bolting flange for secure attachment. It fits Borg Warner 171700, 171710, and factory T6 Holset turbos, making it an ideal upgrade for BD Scorpion Turbo kits. The inclusion of 16 studs and spacers ensures compatibility with BD Scorpion kits and other high-performance applications. The high-silicon ductile cast iron construction, along with black oxide-coated spacers and high-temperature POR 15 black coating, ensures longevity and resistance to warping or heat-related failures. This exhaust manifold is designed using computational fluid dynamics to maximize flow efficiency and performance.
Certified with SEMA certification and compliant with CARB EO No. D-553-17, this product is 50-state legal, offering a legal and reliable upgrade for diesel performance enthusiasts. The package includes the exhaust manifold, crossover tube gaskets, studs, and spacers, providing all necessary components for installation. The durable construction and high-temperature coating make it a reliable choice for demanding fleet and performance applications, ensuring long-term drivetrain durability and optimal thermal management.
Features:
- Heavy-duty design with high-silicon ductile iron for exceptional durability and crack resistance
- Ceramic coated inside and out for improved temperature control and a smooth finish
- Designed to increase exhaust flow by an average of 9.3%, enhancing engine performance
- Includes gaskets, studs, and spacers compatible with BD Scorpion Turbo kits for seamless installation
| Weight | 40 lbs |
|---|---|
| Dimensions | 43 × 12 × 11 in |
| air_freight_prohibited | false |
| not_carb_approved | true |
| carb_acknowledgement_required | true |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 990011410953 |
| brand | BD Diesel |
| part_number | 1048006 |
