BD Diesel ProTect68 Pressure Control Kit – Part # 1030362
$503.99

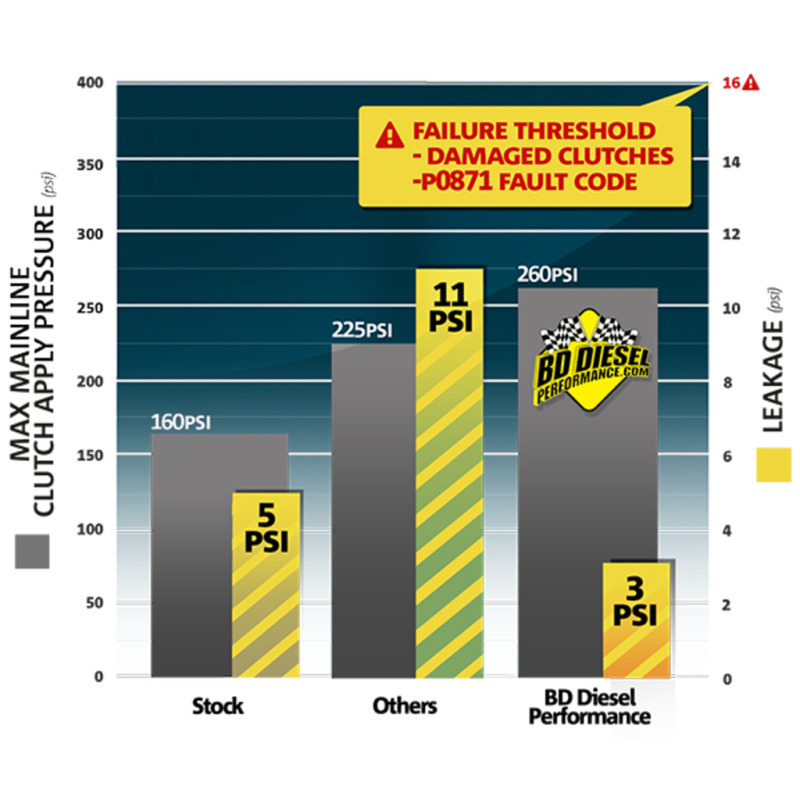

ProTect68 Trans Pressure Control kit delivers 150% of the torque holding force to stock transmissions like no others can. Industry leading custom bonded gasket valve body separator plate and gaskets substantially reduces cross leaks compared to stock and other aftermarket kits, even with much higher line pressures. Heavy duty accumulator plate to prevent accumulator blow-out. Electronic Pressure Control module that delivers up to 250 PSI clutch apply pressure providing 150% of the holding force prevents clutch slippage. All of this without modifying the transmission pump or removing the transmission. Controller dynamically adjusts the hydraulic apply pressures based on turbo boost/engine load. No tuning required. Installation takes 2-to-3 hours to complete without having to do a full transmission relearn since no internal tolerances have changed. A “fresh” stock transmission will have the ability to handle up to 450hp. For higher power or demands, a complete BD 68RFE transmission with additional clutches and new designed components is recommended.

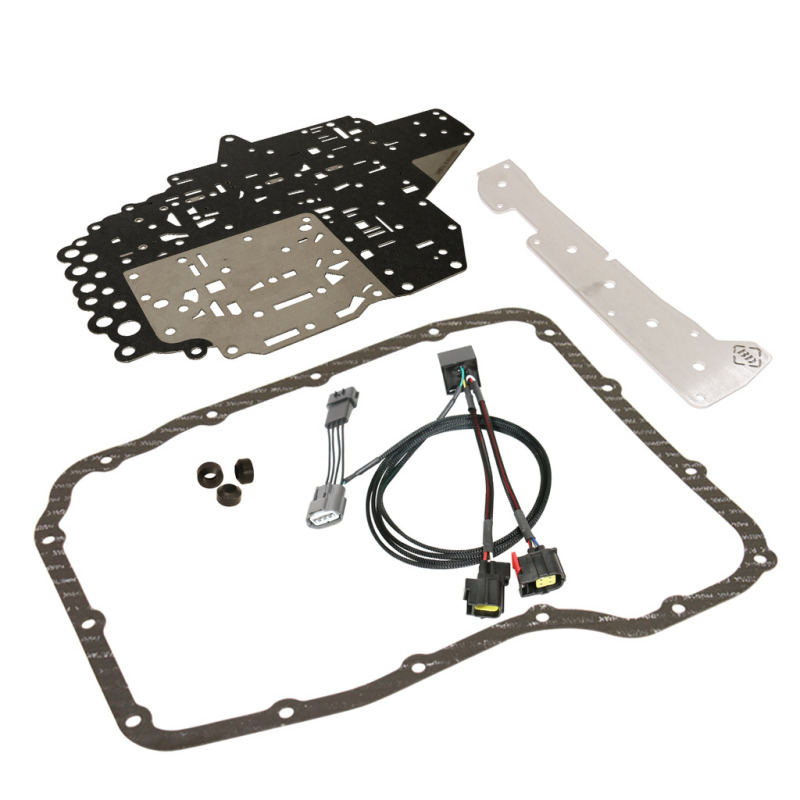

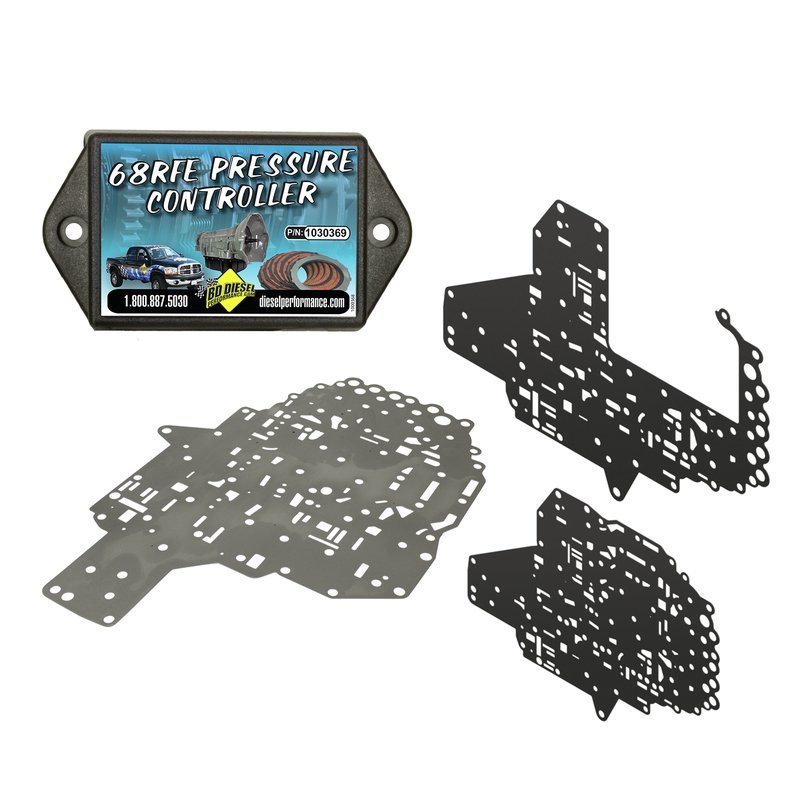

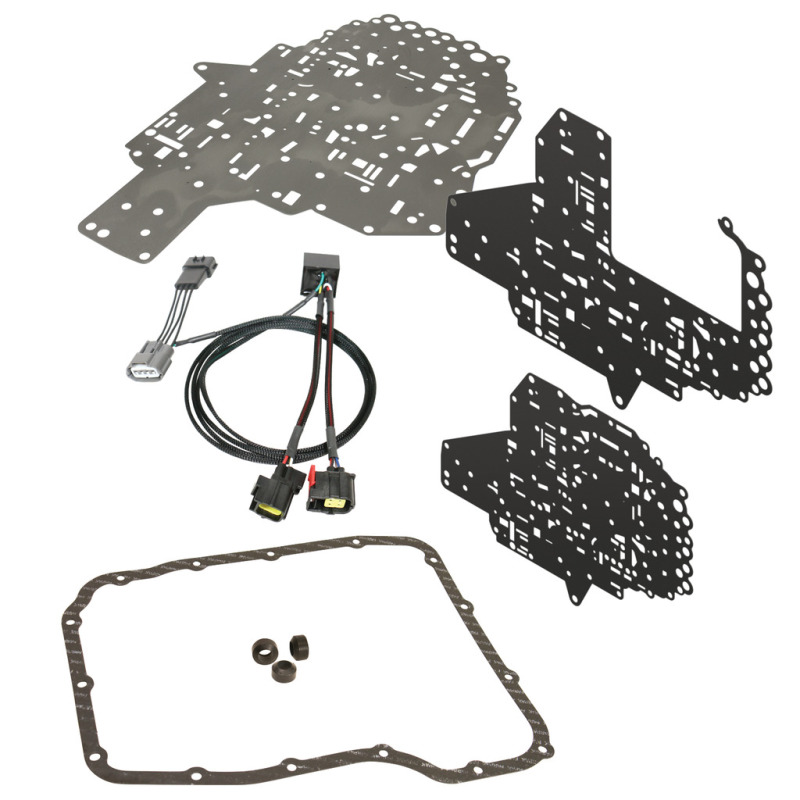

ProTect68 Pressure Control Kit; Up To 250 PSI Clutch Apply Pressure; Incl. Pressure Controller/Clutch Feed Seal/Valve Body Plate/Gaskets/0.25 in. Check Ball;
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- Pressure Control module delivers up to 250psi clutch apply pressure at full throttle
- Dynamically adjusts hydraulic apply pressures based on turbo boost/engine load
- A “fresh” stock transmission will have the ability to handle up to 400hp-450hp
- Pressure Control Module Delivers Up To 250 PSI Clutch Apply Press
- Dynamically Adjusts Hyd. Apply Pressure Based On Turbo Boost/Load
- A Fresh Stock Trans. Will Have Ability To Handle Up To 400-450 HP
- No full transmission relearn required – quick relearn suggested
- Heavy duty accumulator plate to prevent accumulator blowout
- No Full Trans. Relearn Required – Quick Relearn Suggested
- Kit includes pan gasket, 3 doughnut seals and check ball
- Valve Body Separator Plate Stops Internal Cross Leaks
- Dynamic Control Ramps Up The Much Larger Sweep
- 56 Percent More Theoretical Holding Power
- 56% more theoretical holding power
- Upgraded 68RFE Accumulator Plate
- 12 Months or 24000 Mile Warranty
- Installation takes 2-to-3 hours
- Installation Takes 2-3 Hours
- Prevent Clutch Slippage
- No tuning required
1 in stock
The BD Diesel ProTect68 Pressure Control Kit (Part Number 1030362) is designed to significantly enhance the performance and durability of stock Dodge 68RFE transmissions, particularly for 2007.5-2016 6.7L models. This kit delivers up to 150% more torque holding force compared to stock components, making it ideal for towing, high-performance applications, or fleet duty. Its industry-leading custom bonded gasket valve body separator plate and gaskets substantially reduce internal cross leaks, even under increased line pressures, ensuring consistent hydraulic performance. The pressure control module provides up to 250 PSI clutch apply pressure, dynamically adjusting based on turbo boost or engine load, which optimizes clutch engagement and minimizes slippage without requiring transmission pump modifications or internal disassembly.
Installation is streamlined, typically taking just 2 to 3 hours, and does not necessitate a full transmission relearn, as the internal tolerances remain unchanged. This allows for a quick upgrade that restores and enhances transmission performance without extensive tuning or recalibration. The kit includes a pressure controller, clutch feed seal, valve body separator plate, gaskets, and a check ball, providing all necessary components for a complete upgrade. The heavy-duty accumulator plate further prevents accumulator blow-out during demanding towing conditions, ensuring long-term reliability. For vehicles handling up to 450 horsepower, this kit offers a cost-effective solution to improve clutch engagement, reduce internal leaks, and increase overall transmission efficiency. For higher power demands, a complete BD 68RFE transmission re-build with additional clutches and upgraded components is recommended to handle increased torque loads.
This product is suitable for enthusiasts and fleet operators seeking to improve clutch engagement and durability in heavy-duty applications, making it an essential upgrade for maintaining transmission integrity and power transfer efficiency in demanding driving conditions.
Features:
- Heavy-duty components deliver up to 150% more torque holding force for stock transmissions
- Custom bonded gasket valve body separator plate reduces internal cross leaks and increases line pressure
- Electronic Pressure Control module provides up to 250 PSI clutch apply pressure, dynamically adjusting with engine load
- Includes pressure controller, clutch feed seal, separator plate, gaskets, check ball, and heavy-duty accumulator plate for long-term reliability
Fitment:
Dodge Ram 2500 Laramie 2007 to 2010
Dodge Ram 2500 SLT 2007 to 2010
Dodge Ram 2500 ST 2007 to 2010
Dodge Ram 2500 SXT 2008 to 2010
Dodge Ram 2500 TRX 2010
Dodge Ram 3500 Laramie 2008 to 2010
Dodge Ram 3500 SLT 2008 to 2010
Dodge Ram 3500 ST 2008 to 2010
Dodge Ram 3500 SXT 2008 to 2009
Ram 2500 Big Horn 2013 to 2019
Ram 2500 Laramie 2011 to 2019
Ram 2500 Laramie Limited 2014 to 2015
Ram 2500 Laramie Longhorn 2011 to 2019
Ram 2500 Limited 2016 to 2019
Ram 2500 Lone Star 2013 to 2015
Ram 2500 Lone Star 2019
Ram 2500 Outdoorsman 2012 to 2016
Ram 2500 SLT 2011 to 2018
Ram 2500 ST 2011 to 2013
Ram 2500 Tradesman 2013 to 2019
Ram 3500 Big Horn 2013 to 2019
Ram 3500 Laramie 2011 to 2019
Ram 3500 Laramie Limited 2014 to 2015
Ram 3500 Laramie Longhorn 2011 to 2019
Ram 3500 Limited 2016 to 2019
Ram 3500 Lone Star 2013 to 2015
Ram 3500 Lone Star 2017
Ram 3500 Lone Star 2019
Ram 3500 SLT 2011 to 2019
Ram 3500 ST 2011 to 2013
Ram 3500 Tradesman 2013 to 2019
| Weight | 3.8 lbs |
|---|---|
| Dimensions | 23.9 × 14.3 × 4.3 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| regular_stock | false |
| clearance_item | t |
| units_per_sku | 1 |
| upc | 019025018310 |
| brand | BD Diesel |
| part_number | 1030362 |
