BD Diesel Super B Killer SX-E S363 Turbo Kit – Part # 1045260
$3,197.99
All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds.

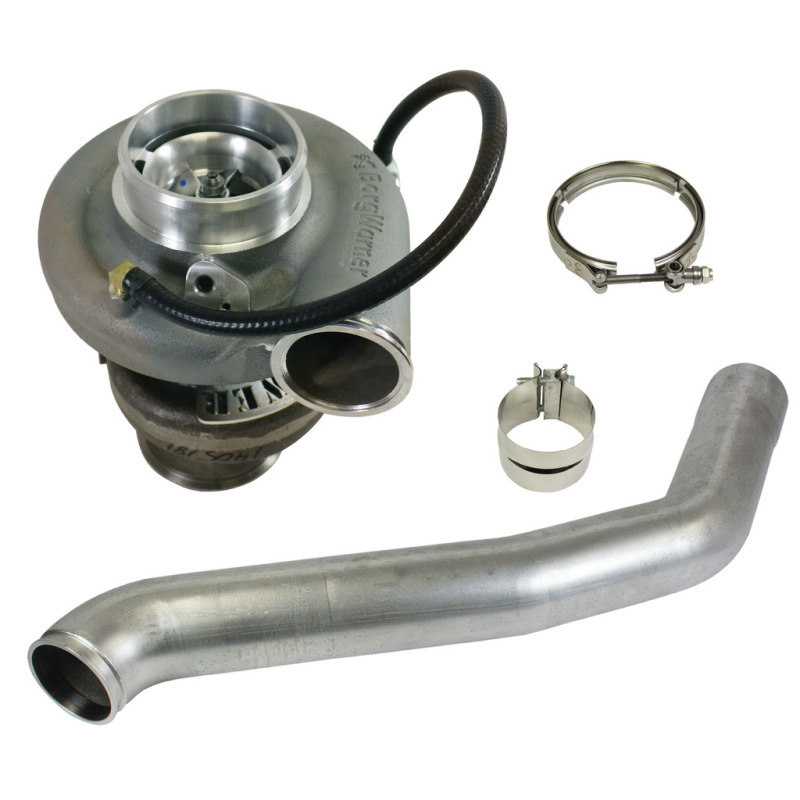

BD Super B Killer SX-E S363 Turbo Kit – Dodge 1994-2002 5.9L 24-valve c/w HX40 Down Pipe
- BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
- Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
- Larger Compressor Blade Surface But w/Smaller Inducer Results In Quicker Spooling/More Flow Than Similar Sized Wheels
- The Sx-E Turbo Was Designed For Performance With A 360 Thrust Bearing And Enhanced Compressor Wheel And Housing
- BD Exclusive Feature Of A Heavy Sprung Waste-Gated T3 Turbine Housing That Mounts Onto Stock Exhaust Manifolds
- The High Strength Fmw Forged Milled Wheels Are Lighter And Stronger And Withstand Higher Wheel Speeds
- Turnbuckle Boost Control Allows For Ease Of Adjustment For Altitude And Extreme Tuning
- BD’s HD Waste gate and bracket holds boost and prevents over speed damage
- BD HD Waste Gate And Bracket Holds Boost And Prevents Over Speed Damage
- Approximate rated 550hp (depending on truck configuration)
- Kit comes with downpipe, V-band clamp, band clamp
- Kit Comes With Downpipe/V-Band Clamp/Band Clamp
- Approx. Rated 550 hp – Depends On Truck Config
- Turbine Wheel: 76mm 2.99in
- Comp Wheel: 63mm 2.48in
- Flow: 79 Lb./min
- A/R Ratio: 0.80
Out of stock
The BD Diesel Super B Killer SX-E S363 Turbo Kit is designed for heavy-duty Dodge trucks from 1994 to 2002, specifically fitting 5.9L 24-valve engines. This comprehensive turbo kit includes all necessary components for a straightforward installation, providing increased airflow, response, and reliability. The kit features a BD exclusive waste-gated SX-E turbocharger with a 76mm turbine wheel and a 63mm compressor wheel, optimized for quick spool and higher flow capacity. The upgraded compressor wheel design with a larger surface area and smaller inducer enhances performance and efficiency, making it suitable for demanding towing and power applications. The turbo’s high-strength forged wheels are lighter and more durable, capable of withstanding elevated wheel speeds for long-term reliability. The kit also includes a downpipe, V-band clamp, and band clamp for secure and leak-free exhaust connections, along with a turnbuckle boost control for precise tuning adjustments. The heavy-duty wastegate and bracket prevent over-boosting and protect against damage at high boost levels, supporting approximately 550 horsepower depending on truck configuration. The T3 turbine housing mounts directly onto stock exhaust manifolds, simplifying installation without requiring custom modifications. This turbo kit is engineered for performance, durability, and ease of tuning, making it ideal for fleet operators and serious enthusiasts seeking reliable power upgrades for their Dodge trucks.
Features:
- Heavy-duty diesel torque capacity with approximately 550hp output depending on truck configuration
- Premium forged and milled wheels for increased strength and reduced weight, ensuring durability under high-stress conditions
- Enhanced thermal capacity and wastegate design prevent boost creep and over-boosting during severe towing or high-horsepower applications
- Designed for long-term drivetrain reliability, maintaining efficient airflow and response under demanding use
Fitment:
Dodge Ram 2500 Base 1994 to 2002
Dodge Ram 3500 Base 1994 to 2002
| Weight | 62 lbs |
|---|---|
| Dimensions | 56 × 13 × 13 in |
| air_freight_prohibited | false |
| not_carb_approved | true |
| carb_acknowledgement_required | true |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 990011405522 |
| brand | BD Diesel |
| part_number | 1045260 |
