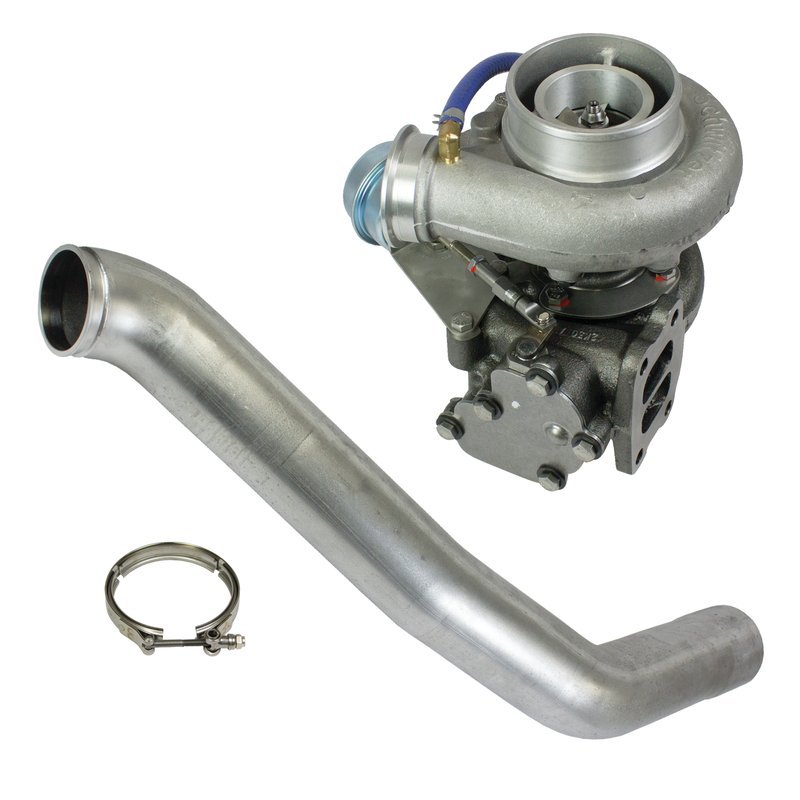

BD Diesel Super B Single Turbo Kit – Part # 1045220
$3,558.99
BD Diesel Performance is unique among its peers in that it designs, manufactures and distributes a wide range of products specifically engineered for performance diesel applications. Located in Abbotsford, British Columbia, Canada, BD’s state-of-the-art facility covers 65,000 square feet, and employs 60 plus highly-trained individuals. The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning diesel pick-up truck market. BD’s roots, however, actually date back to 1972, when Valley Fuel Injection, Ltd. first opened its doors. Today, Valley Fuel Injection and BD Diesel Performance are one, with eight specialty divisions that focus on diesel power train components: Fuel Injection Calibration Department, Exhaust Brake Manufacturing, Electronic Circuit Design and Assembly, Transmission and Torque Converter Design and Remanufacturing, Turbocharger Design, Installation and Research and Development. BD’s comprehensive approach to the diesel performance aftermarket ensures not only quality products, but educated dealers and satisfied customers. Thank you for your interest in BD Diesel Performance!
Super B Single Turbo Kit; SX S358; w/FMW Billet Wheel; Adjustable Wastegate; 870 CF / 450 HP; A/R Ration 0.80; Comp Wheel 58mm-2.28in.; Incl. Turbo/4in. Downpipe/Clamps/Hardware;
- Most systems can be upgraded to a twin system for more power or even better towing performance
- Dual volute T3 turbine housing utilizes low rpm exhaust pulses for improved turbine response
- Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning
- Special low inertia, full-floating 6-pad thrust bearings, not 3 pad like box turbos
- Efficient positive boost-to-drive pressure ratio yields high power with low EGTs
- BD’s HD Waste gate and bracket holds boost and prevents over speed damage
- Perfect fitment to the stock turbocharger inlet connection points
- Efficient Positive Boost-To-Drive Pressure Ratio Yields High Pwr
- HD Wastegate/Bracket Holds Boost And Prevents Over Speed Damage
- Dual Volute T3 Turbine Housing Utilizes Low RPM Exhaust Pulses
- Turnbuckle Boost Control For Ease Of Adjustment/Extreme Tuning
- Perfect Fitment To Stock Turbocharger Inlet Connection Points
- Most Systems Can Up Be Upgraded To Twin System For More Power
- Special Low Inertia Full Floating 6 Pad Thrust Bearings
- Custom built to BD specifications, not a box turbo
- Custom Built To BD Specifications Not A Box Turbo
- Downpipe, V-Band Clamp, Band Clamp
- 12 Month Or 12000 Mile Warranty
- Quick Spool-Up With No Surging
- Turbine Wheel: 74mm 2.91in
- Cooler EGTs And Less Smoke
- Forged Milled Billet Wheel
- Cooler EGTs & less smoke
- Comp Wheel: 58mm 2.28in
- 870 CFM / 450 HP
- A/R Ratio: 0.80
Out of stock
The BD Diesel Super B Single Turbo Kit, part number 1045220, is engineered for high-performance diesel applications, specifically designed to fit 1994-2002 Dodge Ram 2500 and 3500 trucks equipped with 5.9L engines. This turbocharger features a SX S358 model with a billet wheel, providing superior durability and efficiency. The kit includes a 74mm turbine wheel with an A/R ratio of 0.80, along with a 58mm compressor wheel, enabling up to 450 horsepower and 870 CFM airflow capacity. Its design emphasizes quick spool-up with no surging, ensuring responsive acceleration and sustained power during towing or heavy-duty work.
Constructed with a dual volute T3 turbine housing, this turbo utilizes low rpm exhaust pulses for improved turbine response and reduced turbo lag. The turnbuckle boost control system allows for precise tuning adjustments, adaptable to altitude and driving conditions for optimal performance. The assembly features special low inertia, full-floating six-pad thrust bearings, which enhance durability and reduce wear under severe duty cycles. BD’s high-duty wastegate and mounting bracket effectively hold boost pressure and prevent over-speed damage, contributing to reliable long-term operation.
Designed for ease of installation, the BD Diesel Super B Turbo is a perfect fit to the stock turbocharger inlet points. It is built to BD specifications, not a generic or box turbo, ensuring a high-quality, custom-built component with thorough engineering standards. The kit includes downpipe, V-band clamp, and hardware, facilitating a straightforward upgrade. Backed by a 12-month or 12,000-mile warranty, this turbo ensures dependable performance, cooler exhaust gas temperatures, and less smoke, making it an ideal choice for demanding diesel users seeking increased power, efficiency, and reliability.
Features:
- Heavy-duty turbocharger designed for high torque capacity and severe towing conditions
- Premium forged milled billet wheel for durability and high efficiency
- Enhanced thermal capacity to prevent boost loss and turbo damage under heavy loads
- Optimized for long-term drivetrain reliability with quick spool-up and minimal surging
Fitment:
Dodge Ram 2500 Base 1994 to 2002
Dodge Ram 3500 Base 1994 to 2002
| Weight | 65.4 lbs |
|---|---|
| Dimensions | 64 × 12 × 12 in |
| air_freight_prohibited | false |
| not_carb_approved | true |
| carb_acknowledgement_required | true |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025001077 |
| brand | BD Diesel |
| part_number | 1045220 |
