BD Diesel Super B Special SX-E S363 Turbo Kit – Part # 1045257
$3,140.99
All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds.

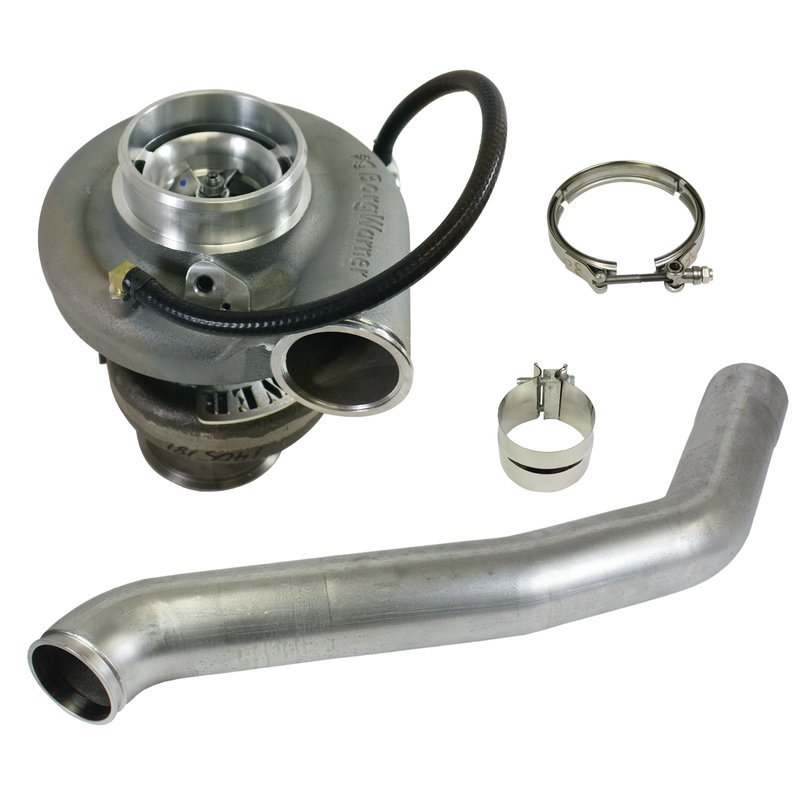

Super B Special Turbo Kit; SX-E S363; A/R Ration 0.80; Incl. Killer B Single Turbo/Downpipe V-Band Clamp/4 in. Stainless Steel Clamp/4 in. Downpipe/Oil Drain Gasket;
- BD Single Turbo kits cover a range of turbos that are an easy complete bolt-on performance replacement for your OEM turbo, providing enough air for more power, response and reliability
- Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
- Larger Compressor Blade Surface But w/Smaller Inducer Results In Quicker Spooling/More Flow Than Similar Sized Wheels
- The Sx-E Turbo Was Designed For Performance With A 360 Thrust Bearing And Enhanced Compressor Wheel And Housing
- BD Exclusive Feature Of A Heavy Sprung Waste-Gated T3 Turbine Housing That Mounts Onto Stock Exhaust Manifolds
- The High Strength Fmw Forged Milled Wheels Are Lighter And Stronger And Withstand Higher Wheel Speeds
- Turnbuckle Boost Control Allows For Ease Of Adjustment For Altitude And Extreme Tuning
- BD’s HD Waste gate and bracket holds boost and prevents over speed damage
- BD HD Waste Gate And Bracket Holds Boost And Prevents Over Speed Damage
- Approximate rated 550hp (depending on truck configuration)
- Kit comes with downpipe, V-band clamp, band clamp
- Kit Comes With Downpipe/V-Band Clamp/Band Clamp
- Approx. Rated 550 hp – Depends On Truck Config
- Turbine Wheel: 80mm 3.15in
- Comp Wheel: 63mm 2.48in
- Flow: 79 Lb./min
- A/R Ratio: 0.80
Out of stock
The BD Diesel Super B Special SX-E S363 Turbo Kit offers a comprehensive bolt-on upgrade designed for 1994-2002 Dodge Ram 2500 and 3500 trucks equipped with 5.9L Cummins engines. This kit includes all necessary components for an easy installation, such as a downpipe, V-band clamp, and stainless steel band clamp, ensuring a seamless fit and reliable performance. The SX-E S363 turbo features a high-flow compressor wheel with a 63mm inducer and an 80mm turbine wheel, providing increased airflow and boosting power output up to approximately 550 horsepower, depending on your truck configuration. Its A/R ratio of 0.80 strikes a balance between spool time and top-end flow, catering to both street and towing applications.
Designed with durability and performance in mind, the SX-E turbo incorporates a 360 thrust bearing, enhanced compressor wheel, and a heavy-sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds. The high-strength forged wheel components are lightweight yet durable, capable of withstanding higher wheel speeds and thermal stresses. The turbo’s exclusive features include a turnbuckle boost control for precise tuning and a BD heavy-duty wastegate and bracket that prevent over-speed damage and maintain consistent boost levels. This system is engineered for serious diesel enthusiasts seeking increased response, power, and reliability in heavy-duty applications.
Whether used for towing, performance upgrades, or fleet operations, this turbo kit ensures high thermal capacity and long-term drivetrain reliability. Proper installation and adherence to recommended break-in procedures are critical for optimal performance, including replacing associated components like the pilot bearing, throwout bearing, and resurfacing or replacing the flywheel. With the BD Diesel Super B Special SX-E S363 Turbo Kit, you gain a robust and efficient upgrade tailored for demanding diesel performance needs.
Features:
- Heavy-duty diesel and fleet torque capacity up to approximately 550 hp depending on truck configuration
- Premium high-flow compressor wheel and turbine for increased airflow and quicker spool times
- Enhanced thermal capacity with built-in features to prevent clutch slippage and over-speed damage
- Designed for long-term drivetrain reliability with durable forged wheels and robust housing
Fitment:
Dodge Ram 2500 Base 1994 to 2002
Dodge Ram 3500 Base 1994 to 2002
| Weight | 62 lbs |
|---|---|
| Dimensions | 56 × 13 × 13 in |
| air_freight_prohibited | false |
| not_carb_approved | true |
| carb_acknowledgement_required | true |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025018372 |
| brand | BD Diesel |
| part_number | 1045257 |
