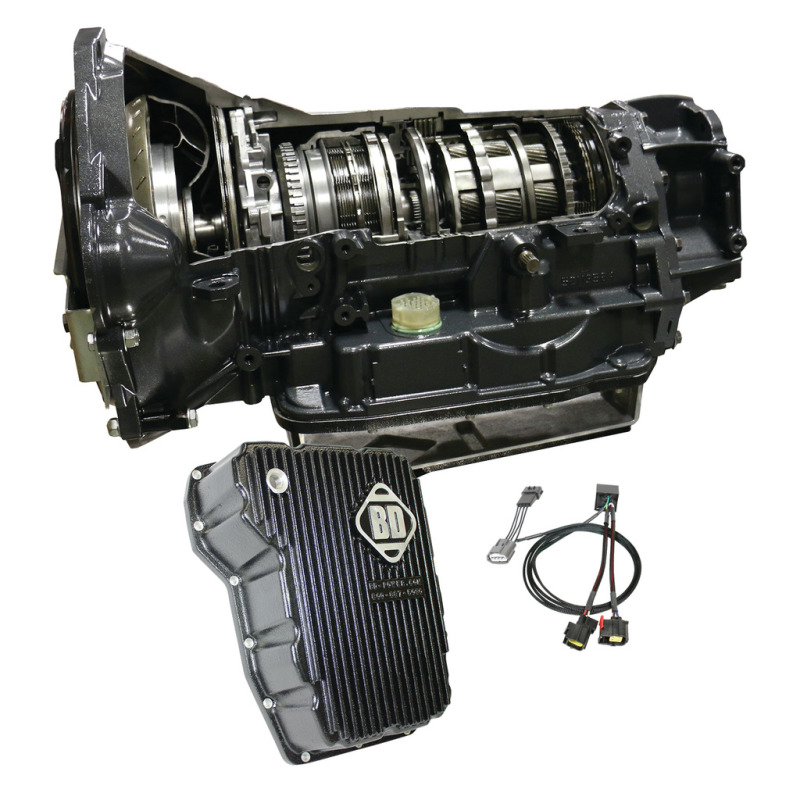

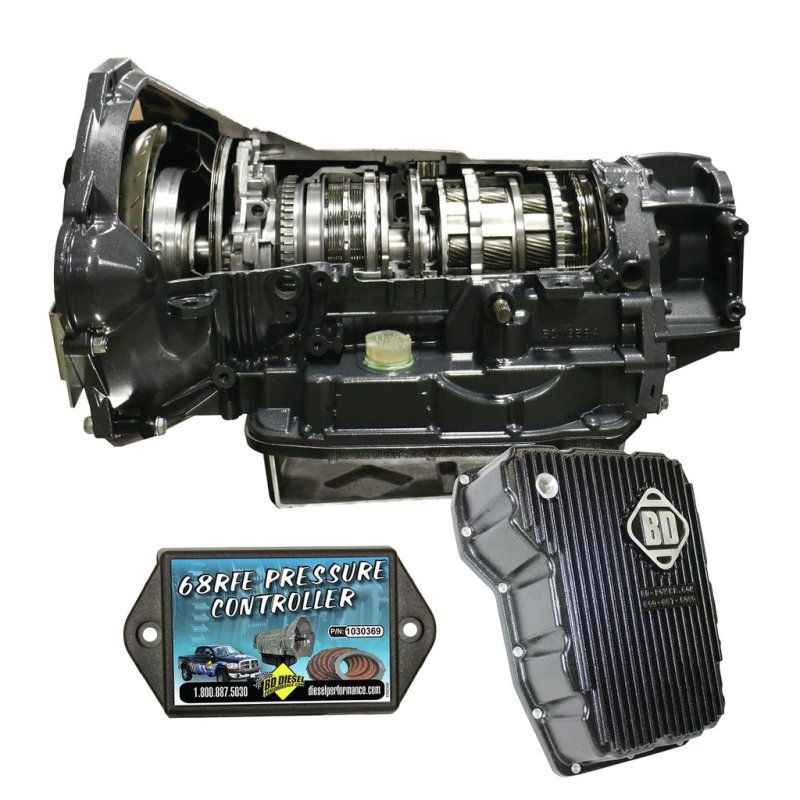

BD Diesel Transmission – 2007.5-2018 Dodge 68RFE 4WD with Billet Input Shaft – Part # 1064264B
$11,025.99
Hard anodized valve body and new solenoid pack installed in every unit; Custom valve body separator plate with gaskets increases line pressure while stopping internal cross leaks; Heavy duty cam & roller design low reverse one way clutch; New 4C billet spring retainer; Steel girdle added to 2C piston to allow for more clutches and broader apply area; BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum; Clutch count increased to hold high torque level – Over Drive 17% increase, Under Drive 20%, 2C 33% increase; BD reinforced accumulator plate; TCC limit valve machined and sleeved to address high wear area with in pump; BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex; BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required

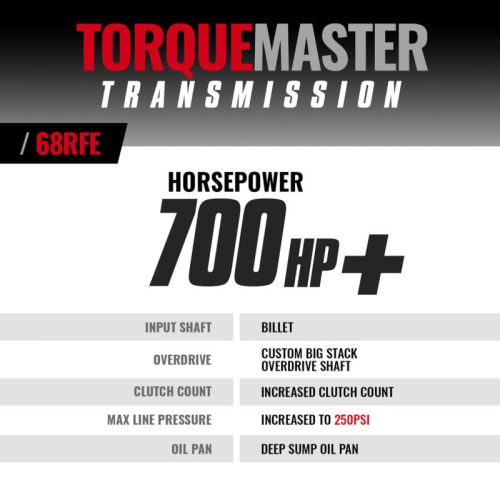

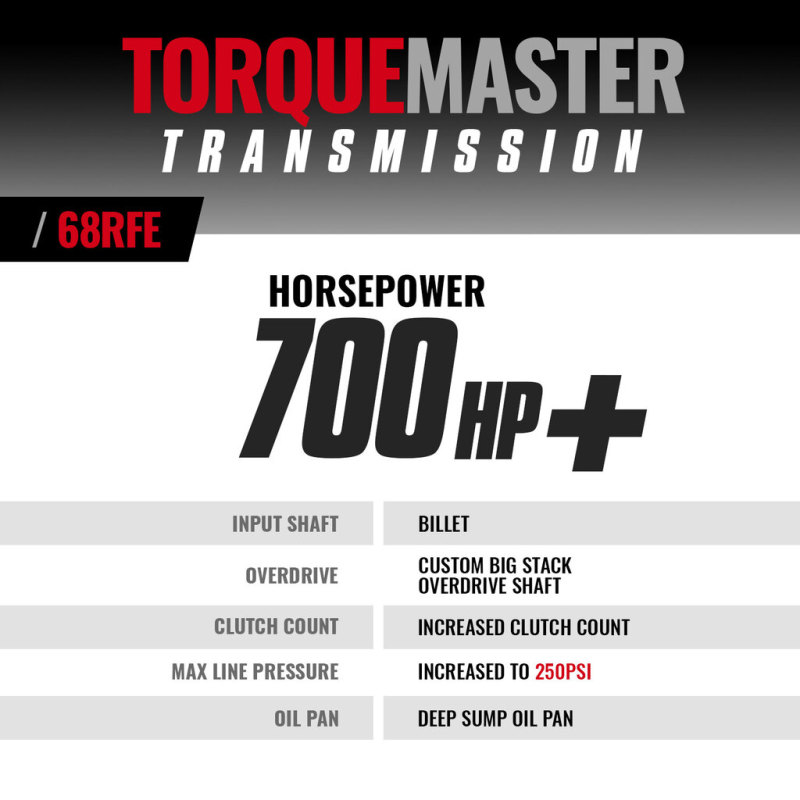

BD TorqueMaster Dodge 68RFE Transmission – 2007.5-2018 4wd c/w Billet Input Shaft
- Performance Transmission but with the added touch of a Billet Input Shaft to take the “snap” from rapid throttle and high horsepower
- BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- TCC limit valve machined and sleeved to address high wear area with in pump
- Hard anodized valve body and new solenoid pack installed in every unit
- Over Drive clutches 33% increase & 2C clutches 33% increase
- Heavy duty cam & roller design low reverse one way clutch
- Valve Body Separator Plate Stops Internal Cross Leaks
- QT100 Pressure Plates For Increased Clutch Counts
- 36 Month/150000 Mile Limited Warranty

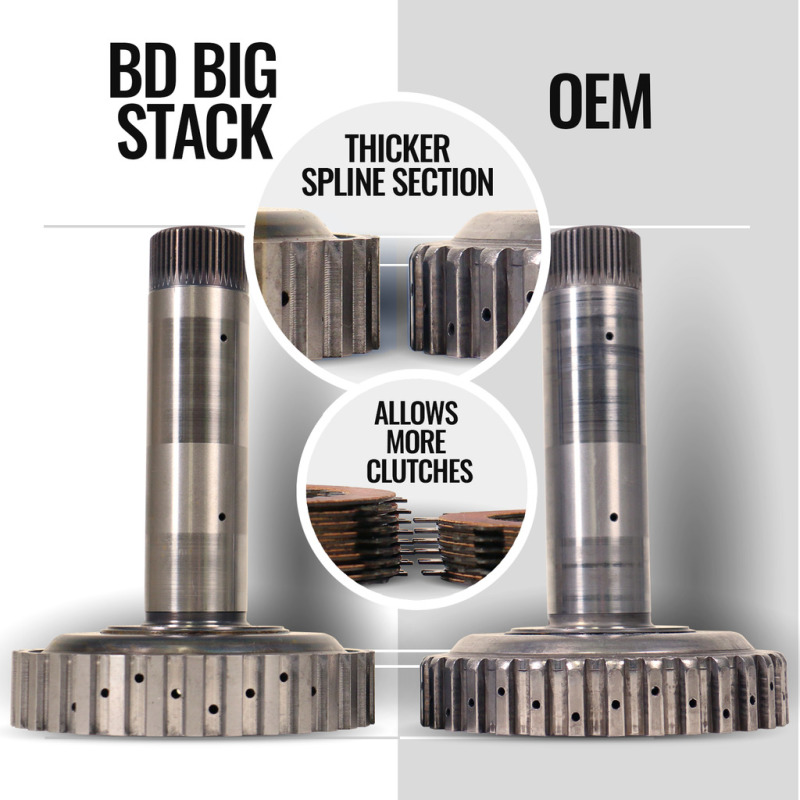

- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- New 4C billet spring retainer
- Has Stronger Internals
- No Race Abuse Covered
Out of stock
The BD Diesel 68RFE transmission for Dodge models from 2007.5 to 2018 combines heavy-duty performance with advanced internal upgrades to handle high torque and demanding towing conditions. This transmission features a hard anodized valve body and a new solenoid pack installed in every unit, ensuring reliable operation and precise shift control. The custom valve body separator plate with gaskets increases line pressure and prevents internal cross leaks, contributing to overall drivetrain durability. An upgraded steel girdle added to the 2C piston allows for more clutches and a broader apply area, enhancing torque capacity and shift firmness. The QT100 pressure plates are designed for increased clutch counts, reducing deflection and distortion within the clutch drum, which improves long-term durability under severe loads.
Features:
- Heavy-duty torque capacity with overdrive clutches increased by 33% and 2C clutches increased by 33%, supporting high horsepower and towing demands.
- Premium friction materials ensure smooth engagement and consistent shift quality, reducing slip and wear.
- Enhanced thermal capacity with BD Deep sump oil pan provides additional fluid volume and cooling capacity, minimizing heat buildup during heavy-duty operation.
- Long-term drivetrain reliability achieved through reinforced internal components, a durable pressure control module, and a custom-designed overdrive shaft for increased strength and longevity.
Fitment:
Dodge Ram 2500 Laramie 2007 to 2010
Dodge Ram 2500 SLT 2007 to 2010
Dodge Ram 2500 ST 2007 to 2010
Dodge Ram 2500 SXT 2008 to 2010
Dodge Ram 2500 TRX 2010
Dodge Ram 3500 Laramie 2007 to 2010
Dodge Ram 3500 SLT 2007 to 2010
Dodge Ram 3500 Sport 2007
Dodge Ram 3500 ST 2007 to 2010
Dodge Ram 3500 SXT 2008 to 2009
Ram 2500 Big Horn 2013 to 2018
Ram 2500 Laramie 2011 to 2018
Ram 2500 Laramie Limited 2014 to 2015
Ram 2500 Laramie Longhorn 2011 to 2018
Ram 2500 Limited 2016 to 2018
Ram 2500 Lone Star 2013 to 2015
Ram 2500 Outdoorsman 2012 to 2016
Ram 2500 SLT 2011 to 2018
Ram 2500 ST 2011 to 2013
Ram 2500 Tradesman 2013 to 2018
Ram 3500 Big Horn 2013 to 2018
Ram 3500 Laramie 2011 to 2018
Ram 3500 Laramie Limited 2014 to 2015
Ram 3500 Laramie Longhorn 2011 to 2018
Ram 3500 Limited 2016 to 2018
Ram 3500 Lone Star 2013 to 2015
Ram 3500 Lone Star 2017
Ram 3500 SLT 2011 to 2018
Ram 3500 ST 2011 to 2013
Ram 3500 Tradesman 2013 to 2018
| Weight | 240 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 1800 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025018273 |
| brand | BD Diesel |
| part_number | 1064264B |
