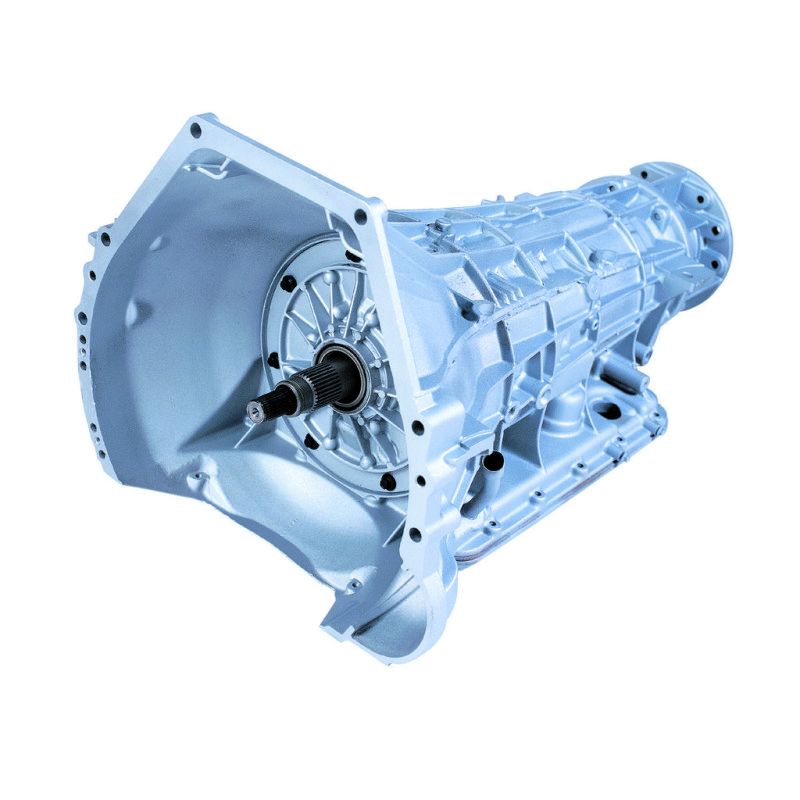

BD Diesel Transmission Kit – 1999-2003 Ford 4R100 2WD PTO – Part # 1064442FPTO
$7,370.99
Machined center support; Machined intermediate piston; Machined low/reverse pressure plate; Machined rear ring gear hub; Added lube circuits to OD planet; Added lube and support to output and intermediate shafts; Replaced all aluminum planetaries with steel; Drilled and tapped direct and intermediate feeds to prevent leaks at case; Re-programmed accumulator body; Full shift kit with line mod valve to increase pressures; Accumulator body enhanced oil flow; Increased cooler pressure; Increased pressure to converter; Creates positive clutch application; Created lube circuit for towing in overdrive; 1990-2003 include auxiliary frame mounted full flow filter kit; Clutch Count: COAST CLUTCH 2; Clutch Count: FORWARD 5; Clutch Count: DIRECT 5; Clutch Count: LOW REVERSE 7; Clutch Count: INTERMEDIATE 4; Clutch Count: OVERDRIVE 4; Pan adds 6qt extra oil capacity; Fully rollerized geartrain; Tighter clutch packs that provide a quicker shift; 30%-40% more clutch material with additional steels; Improved internal lubrication by adding high power boost valves; Reworked front pump; Improved bearing designs; Upgrade supports; Upgraded sprags; Sure-loc snap rings; Solenoids hard wiring providing high temperature resistance; Increase the durability of your drivetrain; Revised oil circuits; Handles up to 300% more power and torque than the stock transmission; Extra clutches and stronger internals; BD rigid aluminum heavy duty transmission pan; Pan reduces case flex; Pan reduces case flex; Pan reduces internal oil leakage; Pan heat-dissipating fins keep temperature down; Pan magnetic drain plug
Transmission Kit; Incl. HD Transmission Pan and Fluid Filter Kit; PTO; Stage 4;
- Drilled and tapped direct and intermediate feeds to prevent leaks at case
- Use Of Third Party Or OE Converter Will Invalidate Trans. Warranty

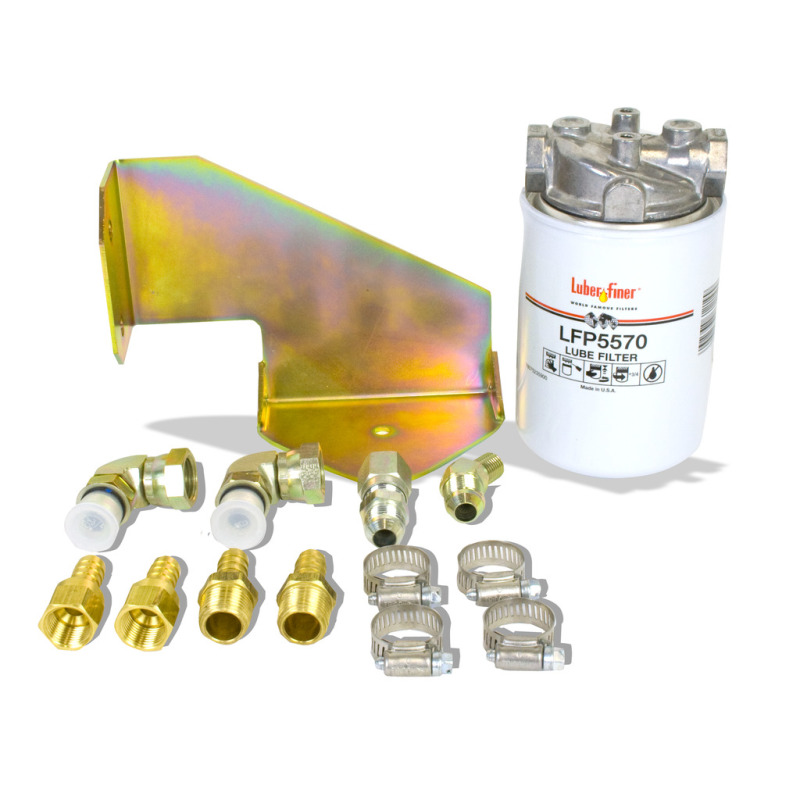

- 1990-2003 include auxiliary frame mounted full flow filter kit
- Full shift kit with line mod valve to increase pressures
- Added lube and support to output and intermediate shafts
- Clutch Count: INTERMEDIATE 4 (33% increase over stock)
- BD aluminum HD deep pan, increases oil capacity by 6qt
- Clutch Count: LOW REVERSE 7 (17% increase over stock)
- Clutch Count: OVERDRIVE 4 (33% increase over stock)
- Clutch Count: FORWARD 5 (25% increase over stock)
- Handles Up To 300% More Power/Torque Than Stock
- Increase the durability of your drivetrain
- Not Warranted For Race Or Sled Pull Use
- 36 Month/150000 Mile Limited Warranty
- Revised Oil Circuits/Extra Clutches
- OEM equipt transmission mounted PTO
- Each Transmission Is Dyno Tested
- Added lube circuits to OD planet
- Increased pressure to converter
- Re-calibrated accumulator body
- Incl. BD Pan And PressureLoc
- Clutch Count: COAST CLUTCH 2
- Fully rollerized geartrain
- Machined center support
- Has Stronger Internals
- Clutch Count: DIRECT 5
- Quicker, firmer shifts
- No Race Abuse Covered
- Upgraded OD snap ring
- Reworked front pump
Out of stock
The BD Diesel 4R100 Transmission Kit, part number 1064442FPTO, is engineered to significantly enhance the durability and performance of heavy-duty Ford trucks from 1999 to 2003. This comprehensive upgrade features a machined center support, intermediate piston, low/reverse pressure plate, and rear ring gear hub, all designed for maximum strength and reliability. The kit incorporates added lubrication circuits to the output and intermediate shafts, ensuring consistent internal lubrication for high-power applications. All aluminum planetaries are replaced with steel counterparts to withstand increased torque loads, while drilled and tapped feeds prevent leaks at the case, improving overall system integrity.
The full shift kit with line mod valve increases internal pressure, creating positive clutch engagement for quicker, more responsive shifts. Reprogrammed accumulator body and enhanced oil flow through increased cooler pressure and converter pressure optimize transmission operation under severe towing and power demands. The included BD aluminum heavy-duty transmission pan adds six quarts of extra oil capacity, reducing heat buildup and internal wear. The pan’s heat-dissipating fins and magnetic drain plug further aid in maintaining optimal operating temperatures and cleanliness.
Designed for high torque capacity, this transmission upgrade handles up to 300% more power and torque than stock, making it suitable for demanding towing, fleet, and performance applications. The kit features tighter clutch packs, 30-40% more clutch material, and additional steels, resulting in quicker, firmer shifts and enhanced drivetrain longevity. Fully rollerized geartrain, reworked front pump, upgraded supports, and stronger internals ensure long-term reliability. Each transmission is dyno-tested before installation, with OEM-style PTO compatibility and a 36-month/150,000-mile limited warranty. Note that use of third-party or OEM converters may affect warranty coverage.
This upgrade is essential for fleet operators and serious enthusiasts seeking maximum drivetrain durability and performance in heavy-duty Ford trucks. Proper installation, including replacing related components and following break-in procedures, is critical to achieving optimal results.
Features:
- Handles up to 300% more power and torque than stock for heavy-duty towing and fleet applications
- Premium internal friction materials and tighter clutch packs for quicker, firmer shifts
- Enhanced thermal capacity with upgraded oil flow and heat dissipation to prevent slippage under severe loads
- Long-term drivetrain reliability with stronger internals, reworked components, and comprehensive lubrication enhancements
Fitment:
Ford F-250 Super Duty Lariat 1999 to 2003
Ford F-250 Super Duty XL 1999 to 2003
Ford F-250 Super Duty XLT 1999 to 2003
Ford F-350 Super Duty King Ranch 2003
Ford F-350 Super Duty Lariat 1999 to 2003
Ford F-350 Super Duty XL 1999 to 2003
Ford F-350 Super Duty XLT 1999 to 2003
| Weight | 260 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 1200 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025004948 |
| brand | BD Diesel |
| part_number | 1064442FPTO |
