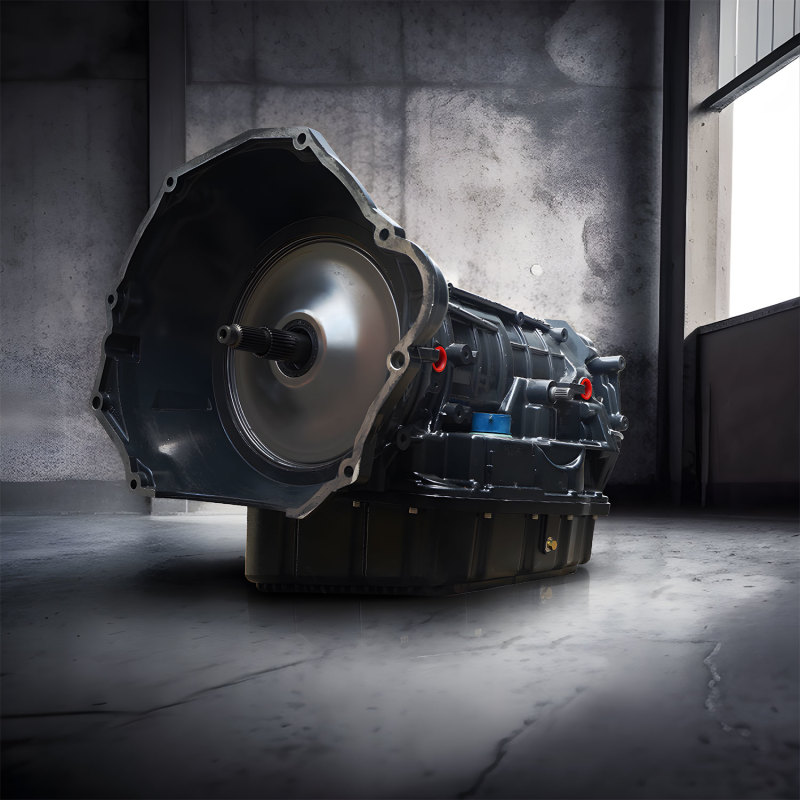

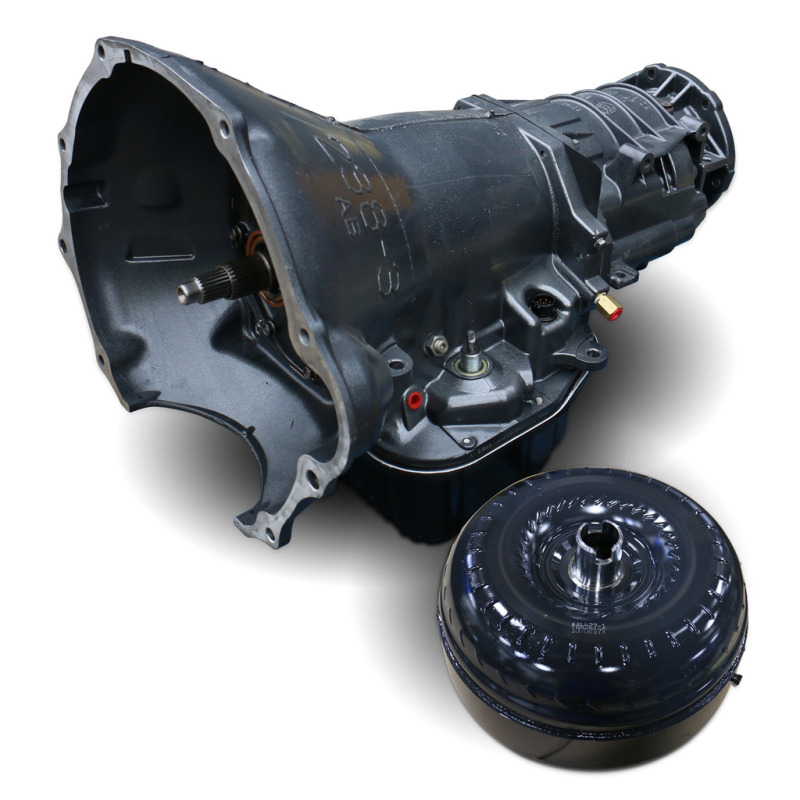

BD Diesel Transmission Kit – 2000-2002 Dodge 47RE 4WD – Part # 1064184SS
$6,519.99
Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower. Billet ‘Big’ fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall. Torque Multiplying cast aluminum stators. Lower RPM Response than the stock converter. More efficient operation, less heat and better fuel economy. Stamp-forged steel front cover, furnace brazed fins, up to triple the mount of lockup clutch material. Warranty- 36 Month/150,000 Miles on Parts, 12 Month/24000 miles on Labor.
Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
- Upgraded governor solenoid – Twice the burst pressure than stock
- Stock thrust bushings replaced with roller Torrington bearings
- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- Up to triple the amount of lock-up clutch material
- Upgraded governor pressure transducer (47RE/48RE)
- Pan heat-dissipating fins keep temperature down
- Modified manual valve for lube in all positions
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Enhanced Stall – Street/Towing applications
- Lower rpm response than the stock converter
- Increase the durability of your drivetrain
- Torque multiplying cast aluminum stators
- Not warranted for Race or Sled Pull use
- Every transmission is tested on a dyno
- Upgraded Governor Pressure Transducer
- Increased line pressure to 190-200psi
- Less heat and better fuel economy
- High temp/energy Raybestos band
- Torque Convertor Enhanced Stall
- Pan adds 2qt extra oil capacity
- Stamp-forged steel front cover
- No Shuttle Shifting Problems
- Stamped Forged 1 Piece Cover
- Upgraded Governor Solenoid
- Clutch Count: OD DIRECT 10
- More Efficient Operation
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- Upgraded 48RE sunshell
- No Race Abuse Covered
- Billet barrel strut
- Magnetic drain plug
- Upgraded Valve body
- Furnace-brazed fins
- Furnace Brazed Fins
- Clutch Count: OD 6
- TORQUE CONVERTOR:
- Billet band lever
- Aluminum HD Pan
- TRANSMISSION:
Out of stock
The BD Diesel Transmission Kit (c/w Filter) for 2000-2002 Dodge Ram 2500 and 3500 with 47RE transmission offers a comprehensive upgrade designed to enhance durability, performance, and reliability in severe fleet and towing applications. This complete transmission overhaul includes an upgraded valve body, high-performance governor solenoid, and an upgraded governor pressure transducer that provides twice the burst pressure of stock components. These enhancements result in increased line pressure of 190-200 psi, ensuring better torque transfer and more precise shifting under heavy loads. The modification of the manual valve for lubrication in all positions guarantees smoother operation, while the replacement of stock thrust bushings with roller Torrington bearings significantly extends component lifespan.
The kit features a high-temp Raybestos band and billet components such as the band lever and billet strut, along with a billet input shaft capable of handling rapid throttle inputs and high horsepower. The drilled intermediate shaft improves lubrication, reducing wear and heat buildup. A BD rigid aluminum heavy-duty transmission pan adds two quarts of extra oil capacity, with heat-dissipating fins that maintain optimal operating temperatures. The inclusion of a magnetic drain plug allows for easy debris collection, aiding in drivetrain longevity. For added protection, the kit incorporates a BD auxiliary full flow filter, and the cooler line case saver prevents damage during severe duty. Each transmission is dyno-tested to ensure quality and performance.
The torque converter is enhanced with a higher stall speed suited for street and towing applications, featuring torque-multiplying cast aluminum stators for improved efficiency. The converter’s lower RPM response reduces heat generation and improves fuel economy. The transmission case benefits from a stamped-forged steel front cover with furnace-brazed fins, providing up to three times the lockup clutch material of stock units for increased durability. Backed by a 36-month/150,000-mile warranty on parts and a 12-month/24,000-mile warranty on labor, this kit delivers long-term reliability for demanding diesel applications. Designed for ease of installation and built to withstand severe conditions, the BD Diesel Transmission Kit is a robust solution for heavy-duty diesel trucks requiring enhanced performance and durability.
Fitment:
Dodge Ram 2500 Base 2000 to 2002
Dodge Ram 3500 Base 2000 to 2002
| Weight | 329 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 2500 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025020658 |
| brand | BD Diesel |
| part_number | 1064184SS |
