BD Diesel Transmission – Part # 1064262SS
$12,005.99
BD Diesel Performance is unique among its peers in that it designs, manufactures and distributes a wide range of products specifically engineered for performance diesel applications. Located in Abbotsford, British Columbia, Canada, BD’s state-of-the-art facility covers 65,000 square feet, and employs 60 plus highly-trained individuals. The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning diesel pick-up truck market. BD’s roots, however, actually date back to 1972, when Valley Fuel Injection, Ltd. first opened its doors. Today, Valley Fuel Injection and BD Diesel Performance are one, with eight specialty divisions that focus on diesel power train components: Fuel Injection Calibration Department, Exhaust Brake Manufacturing, Electronic Circuit Design and Assembly, Transmission and Torque Converter Design and Remanufacturing, Turbocharger Design, Installation and Research and Development. BD’s comprehensive approach to the diesel performance aftermarket ensures not only quality products, but educated dealers and satisfied customers. Thank you for your interest in BD Diesel Performance!
Roadmaster Transmission Kit; Complete Trans; Incl. ProForce Converter Package; Stage 4;
- BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- TCC limit valve machined and sleeved to address high wear area with in pump
- Billet forged front cover with thicker walls and stronger mounting pads
- Hard anodized valve body and new solenoid pack installed in every unit
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Over Drive clutches 33% increase & 2C clutches 33% increase
- Heavy duty cam & roller design low reverse one way clutch
- Ideal replacement for stock torque converter
- Lower rpm response than the stock converter
- Great for street and towing applications
- High performance Enhanced stall stator

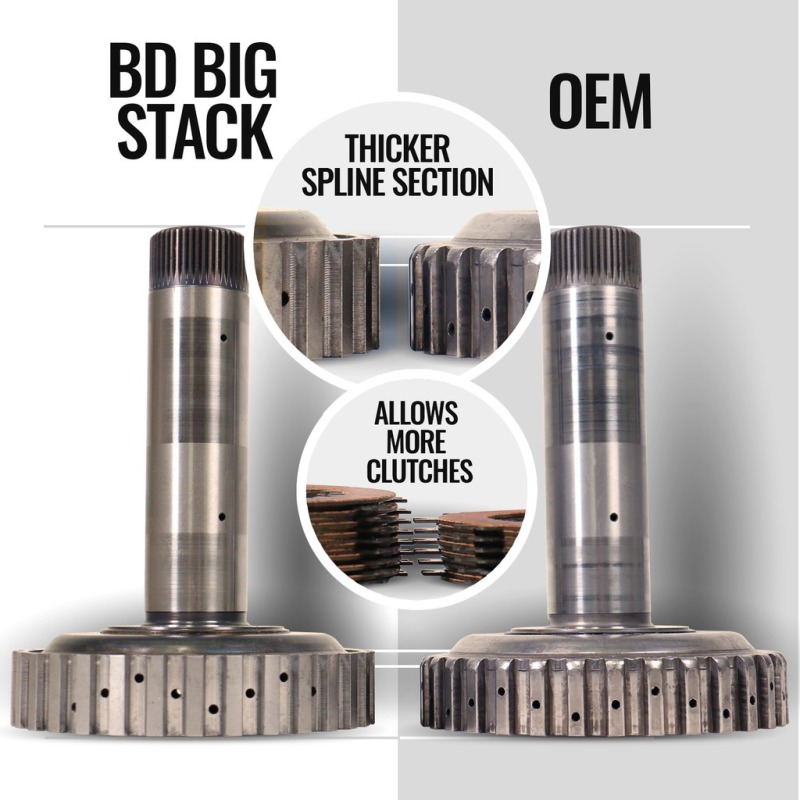

- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- New 4C billet spring retainer
- Good for 550 flywheel HP
- Damper springs replaced
- 11.625 inch dual-clutch
- PROFORCE CONVERTER:
- TRANSMISSION:
Out of stock

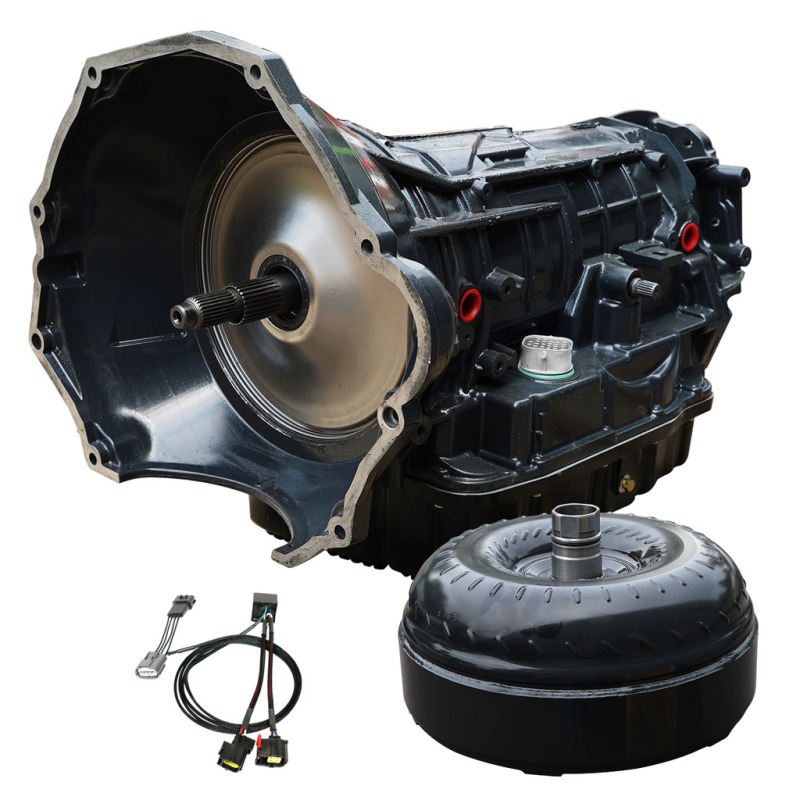

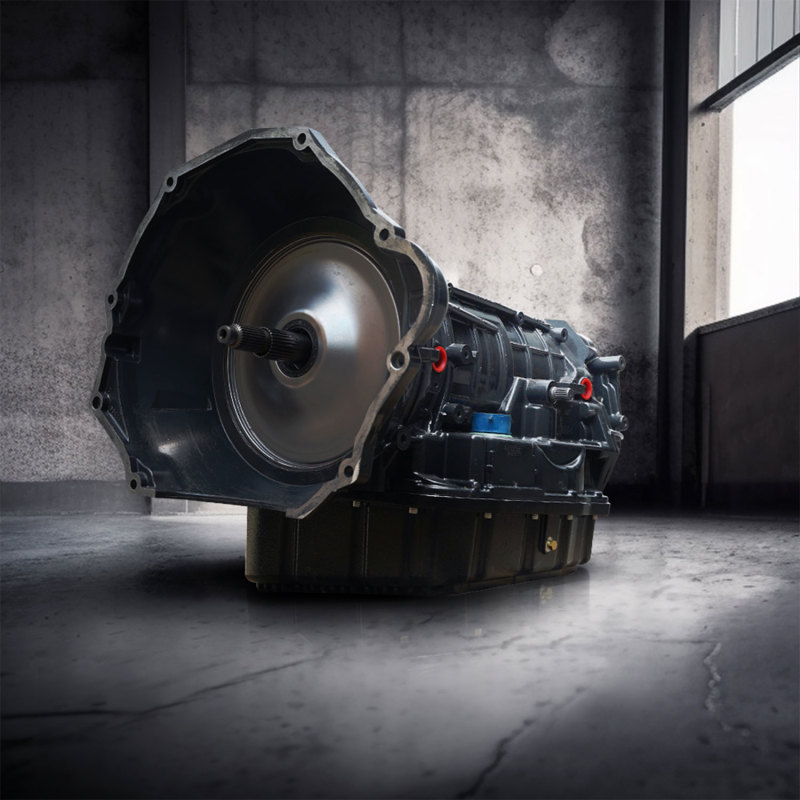

The BD Diesel 1064262SS transmission is a high-performance replacement designed specifically for heavy-duty diesel trucks such as the Dodge Ram 2500 models from 2007.5 through 2018, including 2WD configurations. This Stage 4 transmission includes a comprehensive ProForce converter package, engineered to deliver increased torque capacity and improved towing performance. The assembly features a durable QT100 pressure plate that reduces clutch deflection and distortion, ensuring consistent engagement under severe load conditions. Additionally, the custom bonded gasket valve body separator plate enhances line pressure and prevents internal cross leaks, promoting reliable operation over time.
The transmission’s deep sump oil pan adds extra fluid capacity and cooling efficiency, which is essential for maintaining optimal operating temperatures during heavy-duty towing or high-stress applications. Reinforced components such as the billet forged front cover with thicker walls and stronger mounting pads increase structural integrity, while the steel girdle on the 2C piston allows for more clutches and a broader apply area. The TCC limit valve has been machined and sleeved to address high-wear areas within the pump, further improving durability. Each unit is assembled with a hard anodized valve body and a new solenoid pack, ensuring precise control and longevity.
Furnaced brazed turbine fins improve fluid coupling efficiency, while the overdrive clutches and 2C clutches are increased by 33%, providing enhanced torque capacity for demanding applications. The heavy-duty cam and roller design low reverse one-way clutch, along with the high-performance stall stator and custom overdrive shaft, contribute to smoother shifts and better response at lower RPMs—ideal for street and towing use. This transmission is an excellent replacement for stock units, capable of handling up to 550 flywheel horsepower, with features designed to improve overall drivability and reliability in severe fleet or performance diesel applications.
Features:
- Heavy-duty diesel and fleet torque capacity for demanding towing and hauling
- Premium friction materials for smooth and consistent clutch engagement
- Enhanced thermal capacity to prevent clutch slippage under severe towing conditions
- Long-term drivetrain reliability through reinforced components and advanced design
Fitment:
Dodge Ram 2500 Laramie 2007 to 2010
Dodge Ram 2500 SLT 2007 to 2010
Dodge Ram 2500 ST 2007 to 2010
Dodge Ram 2500 SXT 2008 to 2010
Dodge Ram 2500 TRX 2010
Dodge Ram 3500 Laramie 2007 to 2010
Dodge Ram 3500 SLT 2007 to 2010
Dodge Ram 3500 Sport 2007
Dodge Ram 3500 ST 2007 to 2010
Dodge Ram 3500 SXT 2008 to 2009
Ram 2500 Big Horn 2013 to 2018
Ram 2500 Laramie 2011 to 2018
Ram 2500 Laramie Limited 2014 to 2015
Ram 2500 Laramie Longhorn 2011 to 2018
Ram 2500 Limited 2016 to 2018
Ram 2500 Lone Star 2013 to 2015
Ram 2500 Outdoorsman 2012 to 2016
Ram 2500 SLT 2011 to 2018
Ram 2500 ST 2011 to 2013
Ram 2500 Tradesman 2013 to 2018
Ram 3500 Big Horn 2013 to 2018
Ram 3500 Laramie 2011 to 2018
Ram 3500 Laramie Limited 2014 to 2015
Ram 3500 Laramie Longhorn 2011 to 2018
Ram 3500 Limited 2016 to 2018
Ram 3500 Lone Star 2013 to 2015
Ram 3500 Lone Star 2017
Ram 3500 SLT 2011 to 2018
Ram 3500 ST 2011 to 2013
Ram 3500 Tradesman 2013 to 2018
| Weight | 315 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 2500 |
| regular_stock | false |
| units_per_sku | 1 |
| brand | BD Diesel |
| part_number | 1064262SS |
