BD Diesel Xtruded Transmission Oil Cooler – Part # 1030606-5/8 inch Cooler Lines
$900.99
BDs High Performance CP3 (HPCP3) Injection Pump with up to a 72-percent increase in capacity / displacement delivers enough fuel to support up to 750hp while maintaining 24,000psi of rail pressure. The HPCP3 pump replaces the existing injection pump and simply bolts in place to produce up to 5.25 LPM versus the stock 3.05 LPM. That is right, all that fuel without going to a dual pump system – no extra pulleys, belts or pumps to install. BDs HPCP3 pumps are engineered with an enhanced metering unit and new design cam shaft with modified plungers and stroke. Plus, the HPCPS eliminates the off throttle fuel spikes common with stock pumps that can potentially damage injector nozzle tips when trying to produce more than 500hp. All of these modifications deliver long-term durability with consistent high fuel pressure supply on demand that provides efficient atomization resulting in more power, better combustion and lower EGTs. Designed for street, towing and race track applications, each HPCP3 injection pump is fully tested before leaving our facility. Chevy Duramax 6.6L and Dodge 6.7L engine applications coming soon!

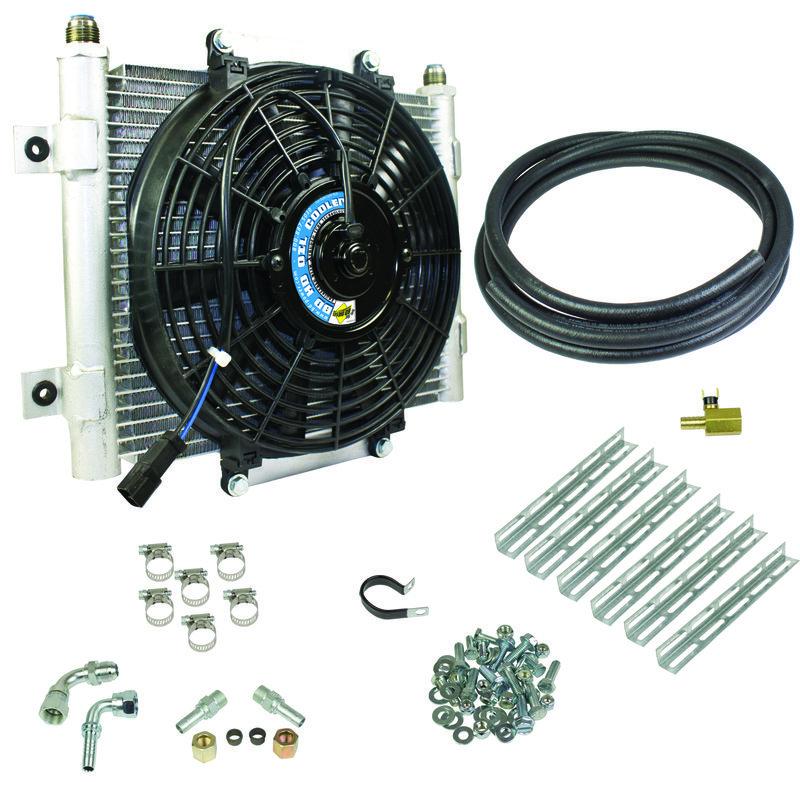

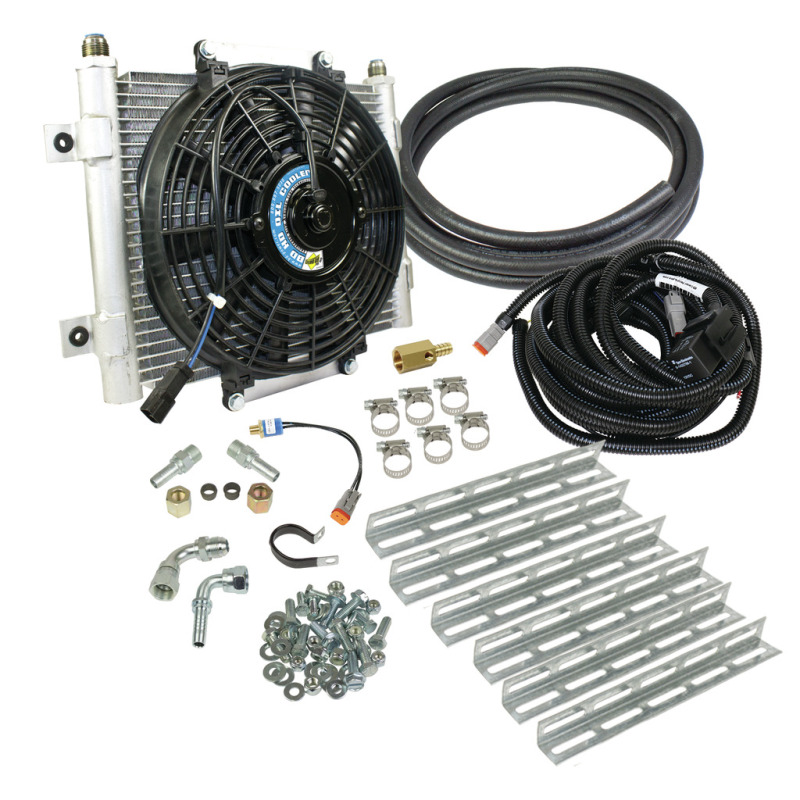

Xtruded Auxiliary Transmission Oil Cooler Kit; 5/8in. Tubing; Incl. Cooler/Brackets/Wiring Harness/Fittings/Temp Sensor/Sensor Adapter/Hoses/Bypass Frt/Rear Tube Eliminator/Hdw;

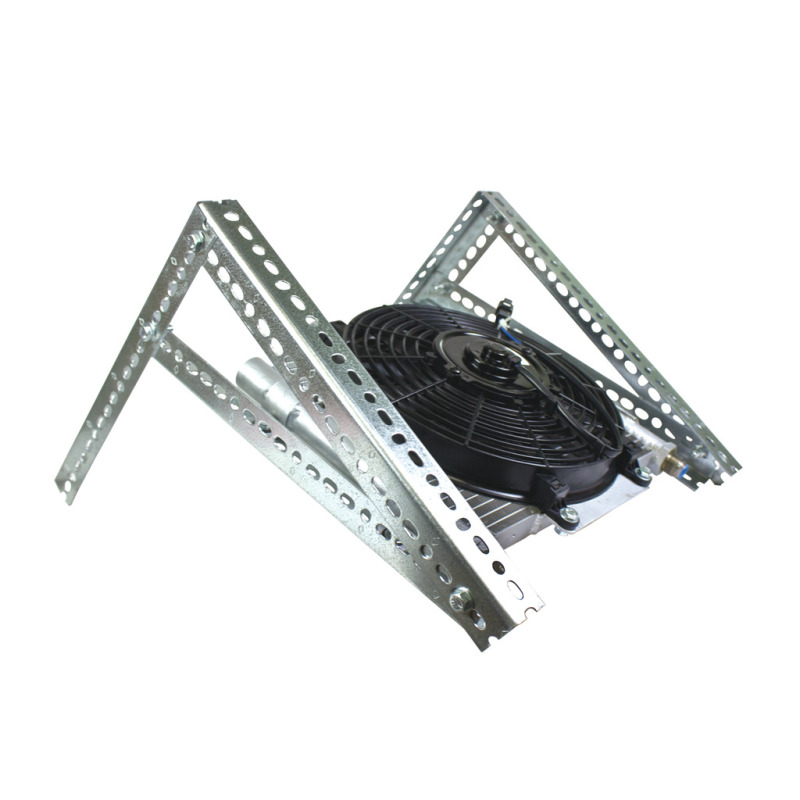

- Build-It-Yourself galvanized bracket kit for quick and easy installation – no wasting time fabricating brackets out of scrap metal
- The pre-wired loomed harness with fuse and relay comes with plug-in connectors
- Thermostatically controlled 80-watt, 10-inch, 800 CFM electric fan

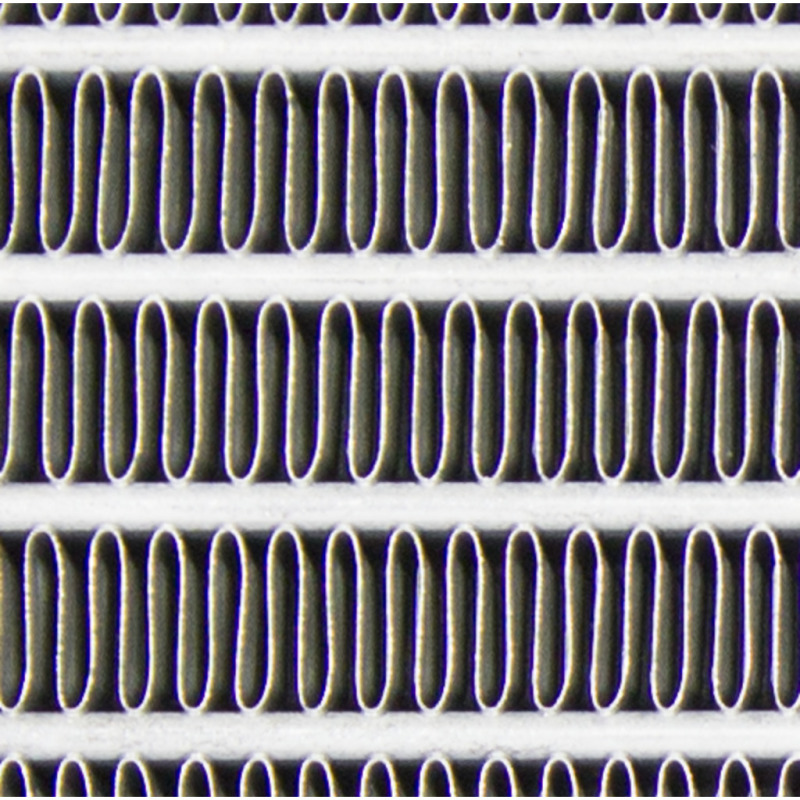

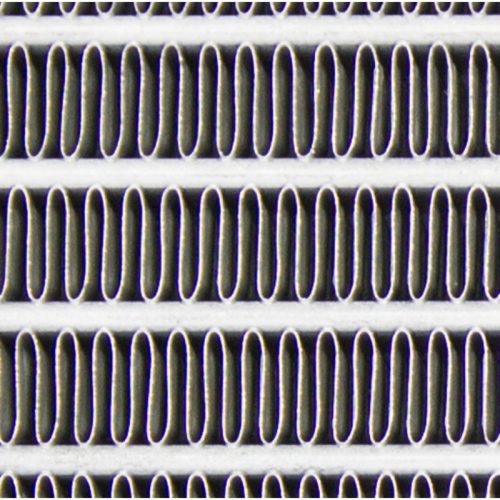

- Large Surface Area To Transfer Heat For External Air Flow Cooling
- Thermostatically Controlled 80-watt 10-inch 800 CFM Electric Fan
- Build-It-Yourself Galvanized Bracket Kit For Quick Installation
- Pre-Wired Loomed Harness w/Fuse And Relay w/Plug In Connectors
- Furnace Brazed Rails Have Been Tested to 300psi of Pressure
- Kits complete with all fittings, clamps, hoses and hardware
- Turbulent Oil Flow Design Promotes a More Complete Cooling
- Large 5/8-inch Ports Prevents Inlet/Outlet Restriction
- 22 Percent More Cooling Over Other Designs
- 33,930 BTU/HR and in excess of 30,000 GVW!
- Chevy Allison 1000 – 5/8-inch Cooler Lines
- Motor Is IP54 With 65 Percent Duty Cycle
- 22% more cooling over other designs
- 12 Months or 24000 Mile Warranty

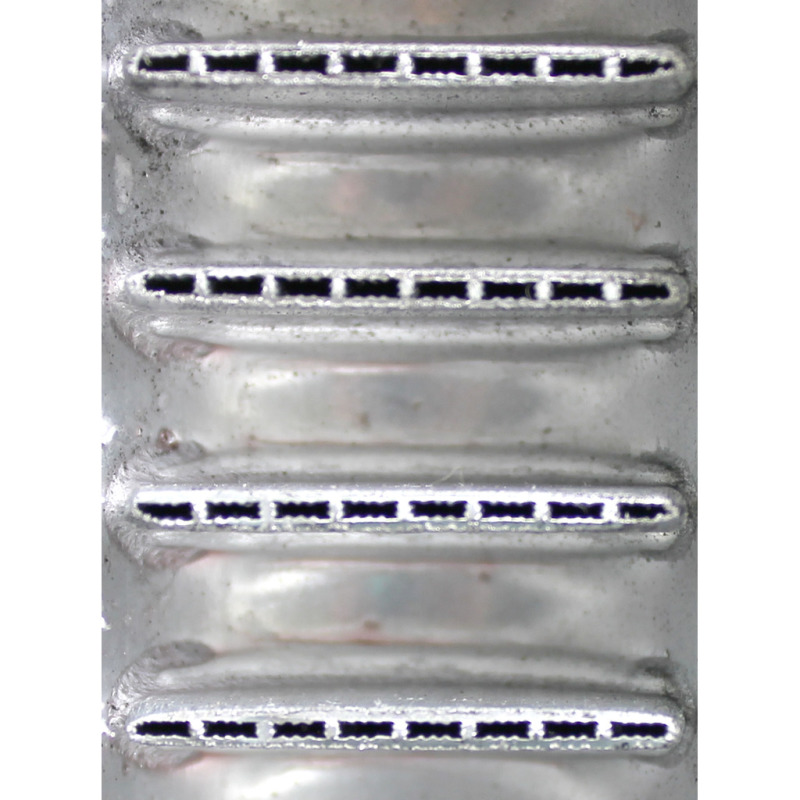

- 200 Micro Extruded passages
- 33930 BTU/HR
Out of stock
The BD Diesel 1030606-5/8 inch transmission oil cooler is engineered for heavy-duty diesel applications, providing enhanced cooling capacity and reliable performance under severe operating conditions. Designed specifically for models like the 2010 GMC Sierra 2500 HD and 3500 HD, this cooler features a robust extruded core with 200 micro passages that promote turbulent oil flow for more effective heat transfer. The large 5/8-inch ports ensure minimal inlet and outlet restrictions, facilitating increased oil volume flow and improved cooling efficiency. This design helps maintain optimal transmission fluid temperatures, extending component life and ensuring consistent operation during towing, hauling, or high-performance driving.
The cooler assembly includes a galvanized bracket kit for easy installation, eliminating the need for custom fabrication. The pre-wired harness with fuse and relay provides a straightforward connection, while the thermostatically controlled 80-watt, 10-inch electric fan with an 800 CFM airflow rating offers active cooling when needed. The fan’s thermostatic control ensures it operates only when necessary, reducing electrical load and noise. Furnace-brazed rails withstand pressures up to 300 psi, ensuring durability in demanding environments. All fittings, clamps, hoses, and hardware are included for a complete installation. The turbulent oil flow design, combined with large surface area and high airflow capacity, delivers 22% more cooling efficiency compared to conventional designs, preventing heat soak and reducing operating temperatures to improve transmission longevity.
Built to meet the demands of fleet and heavy-duty trucks, this cooler supports vehicles with a gross vehicle weight of over 30,000 pounds and is rated for 33,930 BTU per hour. It is suitable for use with Chevy Allison 1000 transmissions and is constructed to meet rigorous standards, including the Prop 65 requirement. Backed by a 12-month or 24,000-mile warranty, the BD Diesel extruded transmission oil cooler ensures long-term reliability and optimal transmission performance in demanding driving conditions.
Features:
- Heavy-duty design with large surface area and 5/8-inch ports for high volume oil flow and efficient cooling
- Built-in thermostatically controlled electric fan with 800 CFM airflow for active heat dissipation
- Galvanized bracket kit and comprehensive hardware for quick, no-fabrication installation
- Durable construction with furnace-brazed rails tested to 300 psi, supporting high-pressure operation
Fitment:
Chevrolet Silverado 2500 HD Base 2001 to 2005
Chevrolet Silverado 2500 HD High Country 2015 to 2017
Chevrolet Silverado 2500 HD LS 2001 to 2006
Chevrolet Silverado 2500 HD LT 2001 to 2017
Chevrolet Silverado 2500 HD LTZ 2007 to 2017
Chevrolet Silverado 2500 HD WT 2003 to 2017
Chevrolet Silverado 2500 HD Classic LS 2007
Chevrolet Silverado 2500 HD Classic LT 2007
Chevrolet Silverado 2500 HD Classic WT 2007
Chevrolet Silverado 3500 Base 2001 to 2005
Chevrolet Silverado 3500 LS 2001 to 2006
Chevrolet Silverado 3500 LT 2001 to 2006
Chevrolet Silverado 3500 WT 2004
Chevrolet Silverado 3500 WT 2006
Chevrolet Silverado 3500 Classic LS 2007
Chevrolet Silverado 3500 Classic LT 2007
Chevrolet Silverado 3500 Classic WT 2007
Chevrolet Silverado 3500 HD High Country 2015 to 2017
Chevrolet Silverado 3500 HD LT 2007 to 2017
Chevrolet Silverado 3500 HD LTZ 2007 to 2017
Chevrolet Silverado 3500 HD WT 2007 to 2017
GMC Sierra 2500 HD Base 2002 to 2005
GMC Sierra 2500 HD Base 2015 to 2017
GMC Sierra 2500 HD Denali 2011 to 2017
GMC Sierra 2500 HD SL 2001 to 2002
GMC Sierra 2500 HD SL 2006
GMC Sierra 2500 HD SLE 2001 to 2017
GMC Sierra 2500 HD SLT 2001 to 2017
GMC Sierra 2500 HD WT 2003 to 2014
GMC Sierra 2500 HD Classic SL 2007
GMC Sierra 2500 HD Classic SLE 2007
GMC Sierra 2500 HD Classic SLT 2007
GMC Sierra 2500 HD Classic WT 2007
GMC Sierra 3500 Base 2002 to 2005
GMC Sierra 3500 SL 2001 to 2002
GMC Sierra 3500 SL 2006
GMC Sierra 3500 SLE 2001 to 2006
GMC Sierra 3500 SLT 2001 to 2006
GMC Sierra 3500 WT 2004 to 2006
GMC Sierra 3500 Classic SL 2007
GMC Sierra 3500 Classic SLE 2007
GMC Sierra 3500 Classic SLT 2007
GMC Sierra 3500 Classic WT 2007
GMC Sierra 3500 HD Base 2015 to 2017
GMC Sierra 3500 HD Denali 2011 to 2017
GMC Sierra 3500 HD SLE 2007 to 2017
GMC Sierra 3500 HD SLT 2007 to 2017
GMC Sierra 3500 HD WT 2007 to 2014
| Weight | 17.6 lbs |
|---|---|
| Dimensions | 22 × 15.6 × 10.8 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | false |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025010710 |
| brand | BD Diesel |
| part_number | 1030606-5/8 |
