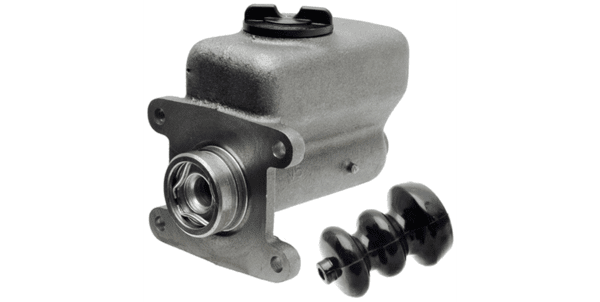

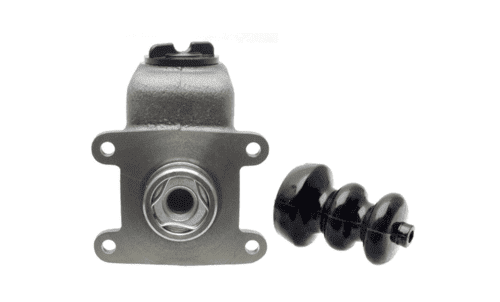

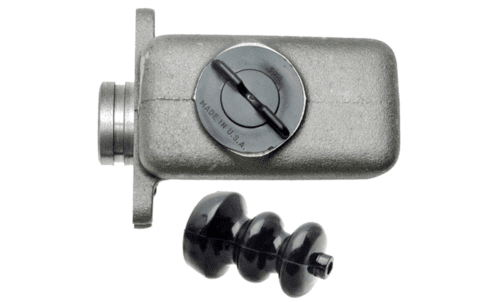

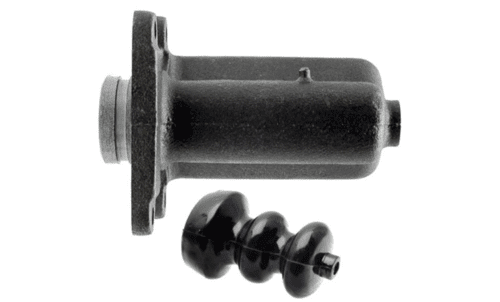

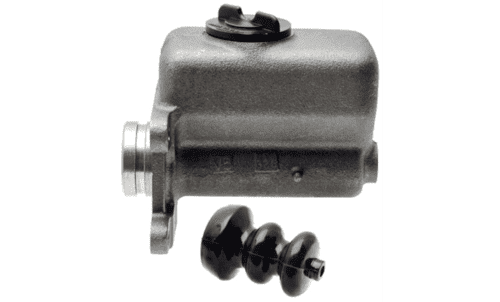

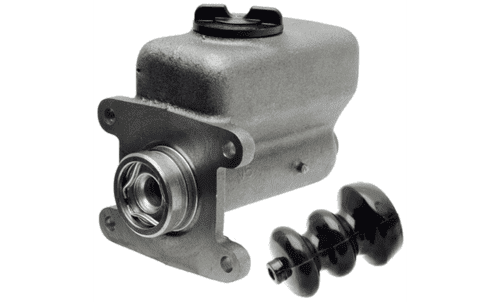

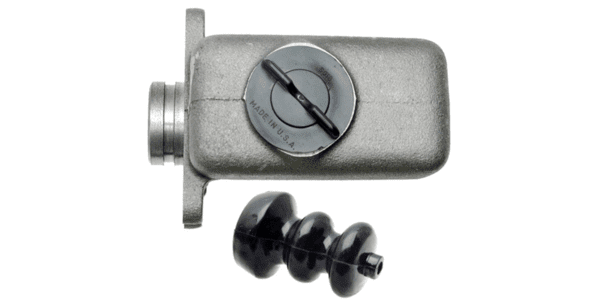

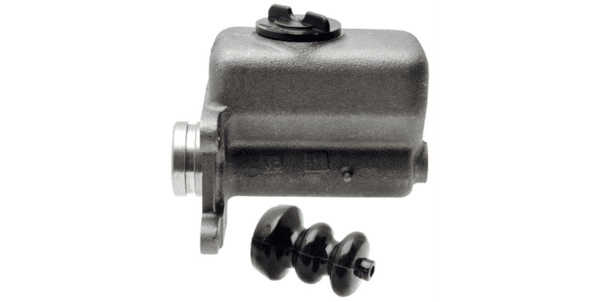

New Brake Master Cylinder 1-1/4-inch bore size FE23127 23127 23127C
Bexar Pro Components: Heavy-Duty Reliability for Fleet & Industry.
Key Specifications & Expert Features
- Bore Diameter: 1-1/4-inch bore size (Essential for pressure calibration)
- Outlet Size: 1/2-20 INV (Rear-exit port for secure line connection)
- Application: Heavy-duty automotive and industrial machinery.
- Companion Repair Kit: 199MK (View Compatible Kit)
Verified Casting & Part Numbers
Matching your existing part number is the most reliable method to ensure correct fitment. This unit replaces:
- FE23127
- 23127
- 23127C
- 5461392
- 616706
- 617076
- B234
Expert Installation & Field Note
Based on our shop experience specializing in heavy-duty brakes since 1985: Improper pushrod alignment is the leading cause of “spongy” pedal feel or premature seal failure. When replacing large-bore industrial cylinders, ensure total linkage alignment to prevent side-loading. Our master cylinders feature specially honed bores to resist wear under heavy cycling, providing quality you can feel with every stop.
⚠ CRITICAL: Verify Specifications
To ensure safety, verify that this master cylinder’s 1-1/4-inch bore size and 1/2-20 INV outlet match your existing unit before purchasing.
| Weight | 8 lbs |
|---|---|
| Dimensions | 11 × 6 × 4 in |
