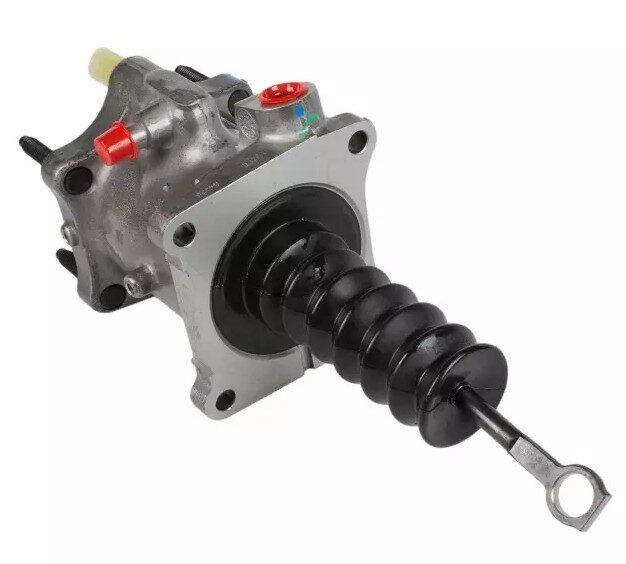

New Hydromax Brake Booster (2772114) replacement unit for Ford F53, F59, F650, and F750 Super Duty Trucks.

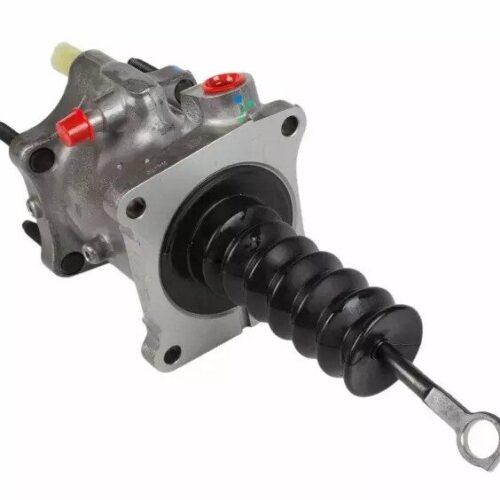

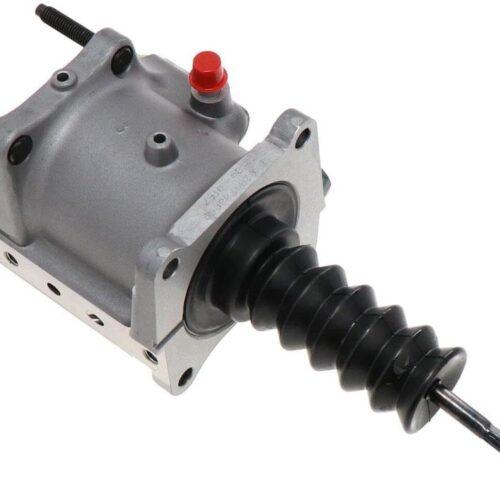

Front angle view of the Hydromax Brake Booster body, focusing on the single eyelet push rod and protective boot assembly.

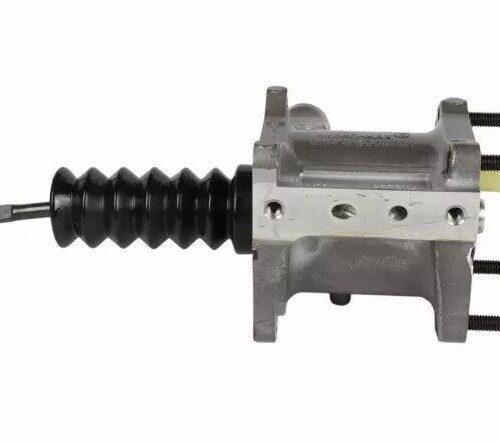

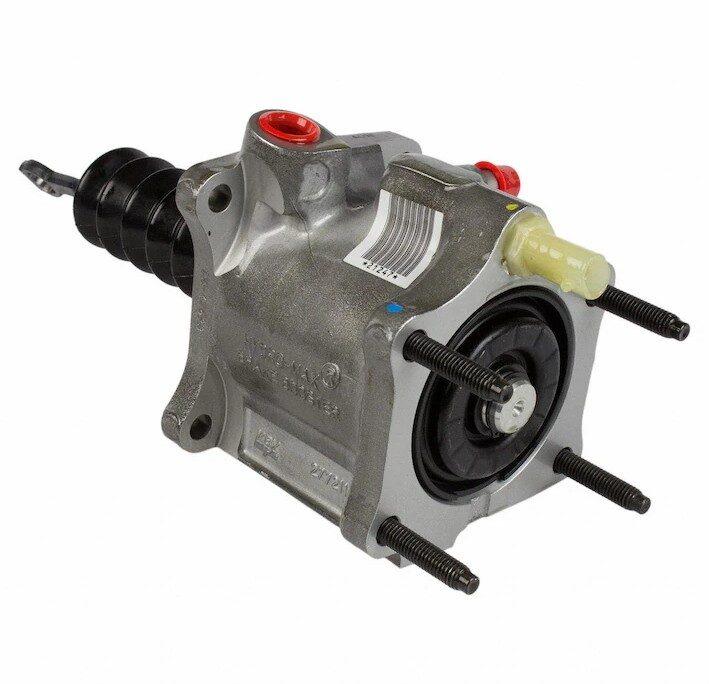

Bottom view of Hydromax Brake Booster, clearly showing the mounting points for the pump motor assembly.

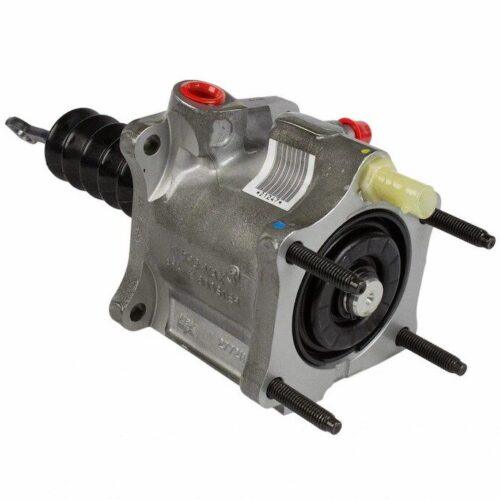

Automobile engine component with visible bolts.

Hydromax Brake Booster (Casting #2772114) – Direct Replacement for Ford F53, F59, F650, F750 Super Duty Chassis

Name: Hydromax Brake Booster (Casting #2772114) – Direct Replacement for Ford F53, F59, F650, F750 Super Duty Chassis
Brand: Bexar Pro Componets
SKU: 52981063
Availability: InStock

$400.00

Fitment Lookup:

Select your vehicle to verify compatibility before ordering.

SKU: 52981063 Categories: Hydromax Brake Boosters, VIEW ALL PRODUCTS Brand: Bexar Pro Componets

Casting #2772114 Hydromax Booster | Multi-Fit RV GMC, Chevy, International, Ford & Industrial

SKU: 52981063

Bexar Pro Components Grade

Bexar Pro Components: Precision Parts for Uncompromising Performance and Safety.

Manufactured by Bexar Pro Components, a trusted leader in heavy-duty braking components, this brand new Hydromax brake booster is engineered for precise hydraulic performance.
Built for heavy-duty fleet reliability, this direct replacement unit features a single eyelet, flat-ended pedal rod, and is a guaranteed fit for vehicles originally equipped with casting numbers 2772114 or 0204745907.

Rely on our expertise for uncompromising quality and safe braking performance in the most demanding commercial and RV chassis applications.

Core Specifications & Critical Cross-Reference

Specification	Detail	Verification Note
Condition	NEW	Non-remanufactured, factory fresh component.
Body Casting #	2772114 / 0204745907	Match one of these numbers on your existing unit.
Pedal Rod Design	Single Eyelet, Flat End	Pre-installed; crucial pedal fitment for Ford F53/F59.
Sealing Components	Oval O-rings	Included for proper sealing to the backup pump motor.

Confirmed Application Search

Ford F-53 Stripped Chassis (2004-2025)
Ford F-650 Super Duty (2016-2026)

Ford F-750 Super Duty (2016-2026)
Ford F59 Commercial Chassis

⚠ Expert Installation & Field Note

Based on our shop experience specializing in heavy-duty brakes since 1985:

Hardware Note: The pedal rod is pre-installed. However, some original mounting studs or flange nuts may need to be cleaned and reused from your old booster depending on your specific chassis year.
Sealing: Always use the new Oval O-rings provided in the box. Reusing old seals is the primary cause of hydraulic leaks between the booster and the backup pump motor.
Pushrod Depth: Verify that the single eyelet flat end matches your existing linkage precisely. Improper rod geometry can lead to incorrect pedal height and “spongy” feel.
