BD Diesel 1064494SM 6.4L Transmission & Converter Package for Ford F-250 2008-2010
$9,588.99
Transmission-Upgraded Valvebody, Increased line pressure to 190-200psi. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 5, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall. Torque Multiplying cast aluminum stators. Lower RPM Response than the stock converter. More efficient operation, less heat and better fuel economy. Stamp-forged steel front cover, furnace brazed fins, up to triple the mount of lockup clutch material. Warranty- 36 Month/150,000 Miles on Parts, 12 Month/24000 miles on Labor.
Transmission Kit; Complete Trans; Incl. Auxiliary Filter Kit; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
- Heavy duty snap ring and blow-off valve to prevent runaway pressure damaging case
- Improvements made to increase cooling and lubrication of the clutch plates
- HD Damper assembly absorbs close to twice the stock capacity shock load
- Replace plastic pressure plugs in valve body with aluminum
- Clutch Count: INTERMEDIATE 5 (67% increase over stock)
- BD aluminum HD deep pan, increases oil capacity by 6qt
- Clutch Count: OVERDRIVE 5 (67% increase over stock)
- Modified stator enhances torque multiplying effect
- Clutch Count: DIRECT 6 (20% increase over stock)
- Lower rpm response than the stock converter
- Enhanced Stall – Street/Towing applications
- Increase The Durability Of Your Drivetrain
- High Yield Strength forged machined piston
- Three high performance clutch surfaces
- Furnace-brazed pump and turbine fins
- Aluminum HD Deep Transmission Pan
- Less heat and better fuel economy
- Each transmission is dyno tested
- Torque Convertor Enhanced Stall
- Stamp-forged steel front cover
- Stamped Forged 1 Piece Cover
- Clutch Count: COAST CLUTCH 3
- Clutch Count: LOW REVERSE 6
- More Efficient Operation
- Clutch Count: FORWARD 4
- No Race Abuse Covered
- Upgraded Sump Filter
- Reworked Front Pump
- Furnace Brazed Fins
- TORQUE CONVERTOR:
- TRANSMISSION:
1 in stock

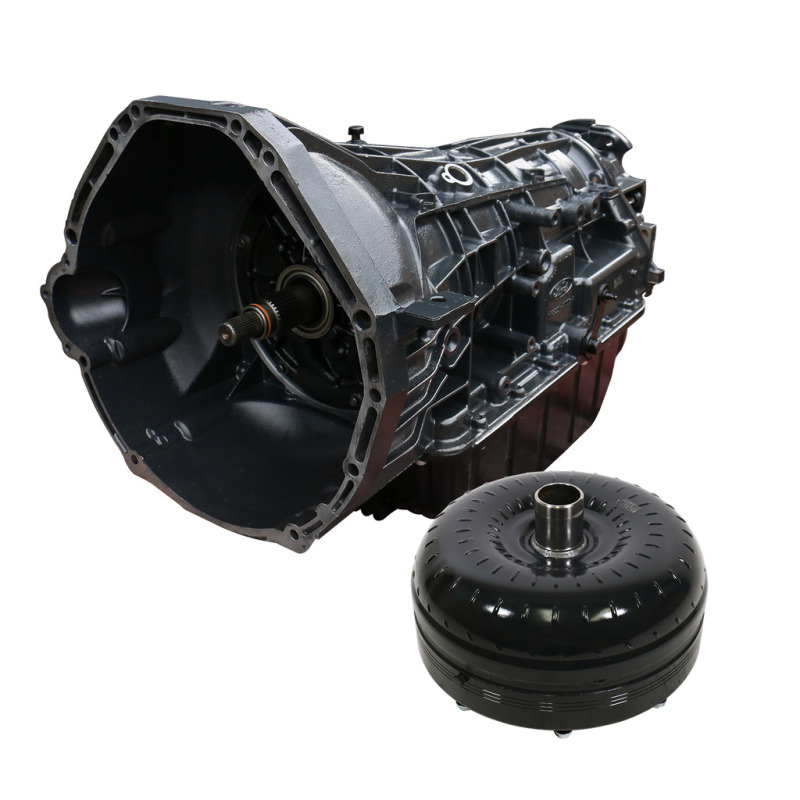

This BD Diesel 1064494SM transmission and converter package is designed for heavy-duty Ford F-250 Super Duty trucks from 2008 to 2010 equipped with the 6.4L engine. Built for durability and high performance, this complete upgrade combines a reinforced transmission with an enhanced torque converter to meet the demands of towing, fleet operations, and high horsepower applications. The transmission features increased line pressure, upgraded clutch counts, and heavy-duty components such as billet input shafts and billet band struts, ensuring improved strength and longevity under severe workload. The inclusion of a BD aluminum deep transmission pan adds an extra 6 quarts of oil capacity, aiding in heat dissipation and maintaining optimal operating temperatures, while the heat-dissipating fins further enhance cooling efficiency. Every transmission is dyno tested to ensure reliability before installation.
The torque converter is engineered with an enhanced stall to improve street and towing performance, providing a lower RPM response and more efficient operation. Cast aluminum stators multiply torque effectively, reducing stress on drivetrain components during heavy loads. The package also includes a full-flow auxiliary filter for extra protection, a high-performance Raybestos band, and a magnetic drain plug for ease of maintenance. The design incorporates improved lubrication and cooling features, such as a reworked front pump and furnace-brazed fins, which help reduce heat and prevent slippage. Built with high-yield strength forged pistons and multiple clutch surfaces, this system offers superior durability, capable of handling increased torque and shock loads.
Suitable for demanding fleet and automotive applications, this transmission and converter package is an essential upgrade for owners seeking maximum performance and reliability from their Ford F-250 Super Duty trucks. It is backed by a 36-month or 150,000-mile warranty on parts, and a 12-month or 24,000-mile warranty on labor, ensuring peace of mind. Installation should adhere to manufacturer guidelines, especially regarding break-in procedures, to preserve the integrity of the upgrades and achieve optimal performance.
Features:
- Heavy-duty torque converter with enhanced stall for improved towing and street performance
- Increased clutch counts and reinforced components for superior durability under severe loads
- Aluminum deep transmission pan with heat-dissipating fins and additional oil capacity for optimal cooling
- Premium friction materials and thermal capacity enhancements to prevent slippage and extend drivetrain life
Fitment:
Ford F-250 Super Duty Cabela’s 2009 to 2010
Ford F-250 Super Duty FX4 2008 to 2009
Ford F-250 Super Duty Harley-Davidson Edition 2008 to 2010
Ford F-250 Super Duty King Ranch 2008 to 2010
Ford F-250 Super Duty Lariat 2008 to 2010
Ford F-250 Super Duty XL 2008 to 2010
Ford F-250 Super Duty XLT 2008 to 2010
Ford F-350 Super Duty Cabela’s 2009 to 2010
Ford F-350 Super Duty FX4 2008 to 2009
Ford F-350 Super Duty Harley-Davidson Edition 2008 to 2010
Ford F-350 Super Duty King Ranch 2008 to 2010
Ford F-350 Super Duty Lariat 2008 to 2010
Ford F-350 Super Duty XL 2008 to 2010
Ford F-350 Super Duty XLT 2008 to 2010
| Weight | 293 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 2000 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025020887 |
| brand | BD Diesel |
| part_number | 1064494SM |
