BD Diesel 48RE Transmission & Converter Stage 4 Package – Part # 1064192SS
$6,636.99
Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower. Billet ‘Big’ fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall – Street/Towing applications. Torque multiplying cast aluminum stators. Lower rpm response than the stock converter. More efficient operation. Less heat and better fuel economy. Stamp-forged steel front cover. Furnace-brazed fins. Up to triple the amount of lock-up clutch material. Warranty-> Parts 36 Month/150,000 miles, Labor 12 Month 24000 Miles
Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
- Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock
- Stock thrust bushings replaced with roller Torrington bearings
- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- Up to triple the amount of lock-up clutch material
- Modified manual valve for lube in all positions
- Pan heat-dissipating fins keep temperature down
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Enhanced Stall – Street/Towing applications
- Lower rpm response than the stock converter
- Increase the durability of your drivetrain
- Torque multiplying cast aluminum stators
- Not warranted for Race or Sled Pull use
- Every transmission is tested on a dyno
- Upgraded Governor Pressure Transducer
- Increased line pressure to 190-200psi
- Less heat and better fuel economy
- High temp/energy Raybestos band
- Torque Convertor Enhanced Stall
- Pan adds 2qt extra oil capacity
- Stamp-forged steel front cover
- No Shuttle Shifting Problems
- Stamped Forged 1 Piece Cover
- Upgraded Governor Solenoid
- Clutch Count: OD DIRECT 10
- More Efficient Operation
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- No Race Abuse Covered
- Furnace-brazed fins
- Magnetic drain plug
- Furnace Brazed Fins
- Upgraded Valve body
- Clutch Count: OD 6
- TORQUE CONVERTOR:
- Billet band lever
- Billet band strut
- Aluminum HD Pan
- TRANSMISSION:
Out of stock

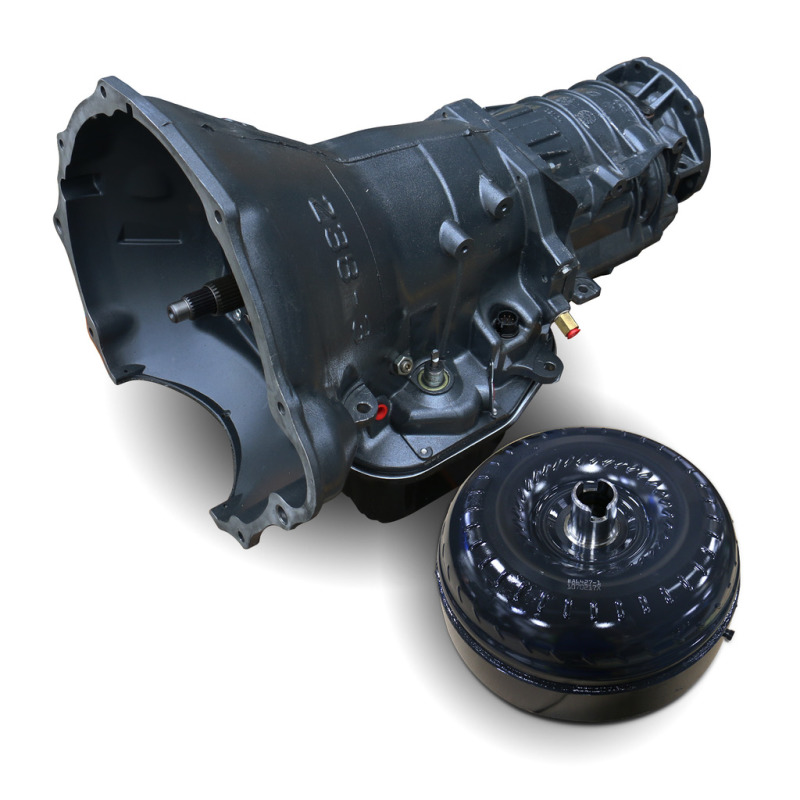

The BD Diesel 48RE Transmission & Converter Stage 4 Package, part number 1064192SS, is designed to enhance the durability and performance of your heavy-duty Dodge Ram 2500 and 3500 trucks from 2003 to 2004. This comprehensive upgrade includes a fully rebuilt transmission featuring an upgraded valve body, a high-capacity billet input shaft, and an aluminum heavy-duty pan with heat-dissipating fins, providing increased oil capacity and temperature control for demanding towing and hauling applications. The package also includes a high-performance torque converter with an enhanced stall speed, cast aluminum stators, and a custom-designed full-flow filter for superior fluid protection. The combination of these components ensures smoother shifting, increased torque capacity, and improved fuel efficiency while reducing heat buildup and component wear.
The transmission is assembled with high-quality Raybestos high-temperature bands, billet band levers, and roller Torrington bearings replacing stock thrust bushings, all contributing to increased longevity and resistance to high-stress conditions. Every unit undergoes dyno testing to verify performance and reliability, making it suitable for severe fleet duty, towing, and high-horsepower applications. The package also includes essential components like a cooler line case saver, a magnetic drain plug, and a 2-quart extra capacity pan with heat dissipation fins that help maintain optimal operating temperatures. Designed specifically for 2003-2004 Dodge Ram 2500 and 3500 trucks, this Stage 4 upgrade provides a significant boost in drivetrain durability, efficiency, and operational response.
Please note, this product is not intended for race or sled pull use. It comes with a 36-month/150,000-mile parts warranty and a 12-month/24,000-mile labor warranty, ensuring peace of mind with your investment. Proper installation and adherence to the manufacturer’s break-in procedures are recommended for maximum lifespan and performance. This package is an ideal choice for fleet operators and off-road enthusiasts seeking reliable, high-performance transmission upgrades for severe-duty applications.
Features:
- Heavy-duty torque capacity suitable for towing and high-performance applications
- Premium friction materials ensure smooth, chatter-free engagement
- Enhanced thermal capacity prevents slippage and overheating under severe loads
- Long-term drivetrain reliability with durable components and comprehensive protection
Fitment:
Dodge Ram 2500 Laramie 2003
Dodge Ram 2500 SLT 2003 to 2004
Dodge Ram 2500 ST 2003 to 2004
Dodge Ram 3500 Laramie 2003 to 2004
Dodge Ram 3500 SLT 2003 to 2004
Dodge Ram 3500 ST 2003 to 2004
| Weight | 339 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 2500 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025020672 |
| brand | BD Diesel |
| part_number | 1064192SS |
