BD Diesel Transmission Kit – 2000-2002 Dodge 47RE 2WD – Part # 1064182SS
$6,636.99
Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower. Billet ‘Big’ fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall – Street/Towing applications. Machined pistons, HD springs absorb shock of engagement, Stamp forged 1-piece cover, Eliminates warpage from clutch heat, Taller cover can be rebuilt more often. Trapezoid teeth design, Engineered tighter tolerances. Self-centering teeth design increases contact decreases wear and chatter. Thrust bearings – not plastic thrust washers. Riveting process ensures alignment & eliminates vibration or embrittlement from welding. Cast stator designs maximizes torque. New sprag components ensure long term durability. Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency. Reduced overall weight by 12lbs compared to competitors. Warranty-> Parts 36 Month/150,000 miles, Labor 12 Month 24000 Miles
Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
- Upgraded governor solenoid – Twice the burst pressure than stock
- Stock thrust bushings replaced with roller Torrington bearings
- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- Up to triple the amount of lock-up clutch material
- Upgraded governor pressure transducer (47RE/48RE)
- Pan heat-dissipating fins keep temperature down
- Modified manual valve for lube in all positions
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Enhanced Stall – Street/Towing applications
- Lower rpm response than the stock converter
- Increase the durability of your drivetrain
- Torque multiplying cast aluminum stators
- Not warranted for Race or Sled Pull use
- Every transmission is tested on a dyno
- Upgraded Governor Pressure Transducer
- Increased line pressure to 190-200psi
- Less heat and better fuel economy
- High temp/energy Raybestos band
- Torque Convertor Enhanced Stall
- Pan adds 2qt extra oil capacity
- Stamp-forged steel front cover
- No Shuttle Shifting Problems
- Stamped Forged 1 Piece Cover
- Upgraded Governor Solenoid
- Clutch Count: OD DIRECT 10
- More Efficient Operation
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- Upgraded 48RE sunshell
- No Race Abuse Covered
- Billet barrel strut
- Magnetic drain plug
- Upgraded Valve body
- Furnace-brazed fins
- Furnace Brazed Fins
- Clutch Count: OD 6
- TORQUE CONVERTOR:
- Billet band lever
- Aluminum HD Pan
- TRANSMISSION:
1 in stock

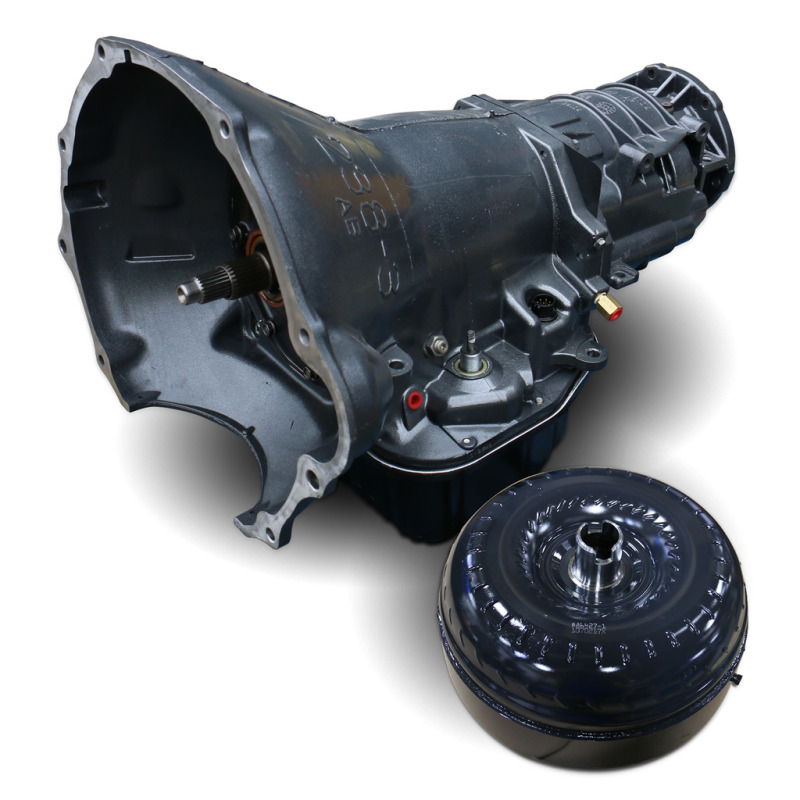

This BD Diesel transmission kit is designed specifically for 2000-2002 Dodge Ram 2500 and 3500 models equipped with the 47RE 2WD transmission. Built for heavy-duty performance, this comprehensive upgrade enhances durability, torque capacity, and shift quality, making it ideal for towing, high-performance applications, and fleet use. The kit includes an upgraded valve body, a high-capacity torque converter with enhanced stall features, and an auxiliary full flow filter for superior fluid filtration. The upgraded governor solenoid and pressure transducer provide increased line pressure—up to 200 psi—helping prevent shifting issues and ensuring consistent engagement under demanding conditions. The billet input shaft, billet band lever, and drilled intermediate shaft improve strength and lubrication, reducing wear and extending component life.
The aluminum heavy-duty transmission pan adds an extra 2 quarts of oil capacity, with heat-dissipating fins that help maintain optimal operating temperatures. Every transmission is tested on a dynamometer prior to shipping to ensure performance consistency. The included cooler line case saver and magnetic drain plug contribute to long-term reliability by protecting vital components and facilitating maintenance. This kit’s robust construction employs furnace-brazed fins and cast aluminum components, optimizing fluid flow and heat management while reducing weight by approximately 12 pounds compared to similar aftermarket offerings. Designed with a focus on high torque capacity, the components feature self-centering teeth, riveted assemblies, and forged steel covers for maximum engagement and durability.
The torque converter is engineered for street and towing applications, with features such as a stamped forged one-piece cover and shock-absorbing springs. It offers a lower RPM response for improved efficiency and better fuel economy. The entire assembly is built for long-term use, with high-temperature Raybestos bands and a furnace-brazed fin design to minimize internal leakage and improve fluid coupling. Backed by a 36-month/150,000-mile parts warranty and a 12-month/24,000-mile labor warranty, this transmission upgrade ensures reliability and peace of mind. Whether you’re replacing a worn-out transmission or upgrading for increased towing capacity, this BD Diesel transmission kit provides the strength and performance needed for severe fleet and heavy-duty applications.
Features:
- Heavy-duty torque capacity with reinforced internal components for demanding towing and high-performance use
- Premium friction materials for smooth gear engagement and reduced chatter
- Enhanced thermal management with heat-dissipating fins and upgraded oil capacity to prevent slipping under severe loads
- Long-term drivetrain reliability through forged components, riveted assemblies, and tested dynamometer performance
Fitment:
Dodge Ram 2500 Base 2000 to 2002
Dodge Ram 3500 Base 2000 to 2002
| Weight | 339 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 2500 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025020634 |
| brand | BD Diesel |
| part_number | 1064182SS |
