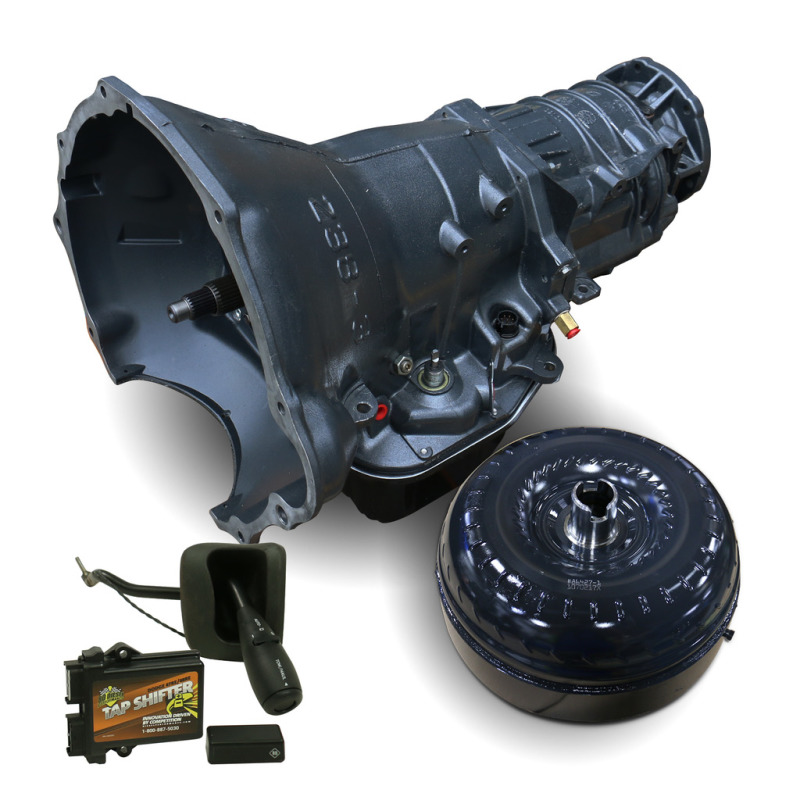

BD Diesel Transmission Kit – 1064234SST for 2005-2007 Dodge 48RE 4WD with Tap Shifter and Filter
$11,397.99
Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower. Billet ‘Big’ fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall – Street/Towing applications. Machined pistons, HD springs absorb shock of engagement, Stamp forged 1-piece cover, Eliminates warpage from clutch heat, Taller cover can be rebuilt more often. Trapezoid teeth design, Engineered tighter tolerances. Self-centering teeth design increases contact decreases wear and chatter. Thrust bearings – not plastic thrust washers. Riveting process ensures alignment & eliminates vibration or embrittlement from welding. Cast stator designs maximizes torque. New sprag components ensure long term durability. Reduced overall weight by 12lbs compared to competitors. Warranty-> Parts 36 Month/150,000 miles, Labor 12 Month 24000 Miles
Transmission Kit; Complete Trans; Incl. Auxiliary Filter/Tap Shifter Kit/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
- Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock
- Stock thrust bushings replaced with roller Torrington bearings
- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- Up to triple the amount of lock-up clutch material
- Modified manual valve for lube in all positions
- Pan heat-dissipating fins keep temperature down
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Enhanced Stall – Street/Towing applications
- Lower rpm response than the stock converter
- Increase the durability of your drivetrain
- Torque multiplying cast aluminum stators
- Not warranted for Race or Sled Pull use
- Every transmission is tested on a dyno
- Upgraded Governor Pressure Transducer
- Increased line pressure to 190-200psi
- Less heat and better fuel economy
- High temp/energy Raybestos band
- Torque Convertor Enhanced Stall
- Pan adds 2qt extra oil capacity
- Stamp-forged steel front cover
- No Shuttle Shifting Problems
- Stamped Forged 1 Piece Cover
- Upgraded Governor Solenoid
- Clutch Count: OD DIRECT 10
- More Efficient Operation
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- No Race Abuse Covered
- Furnace-brazed fins
- Magnetic drain plug
- Furnace Brazed Fins
- Upgraded Valve body
- Clutch Count: OD 6
- TORQUE CONVERTOR:
- Billet band lever
- Billet band strut
- Aluminum HD Pan
- TRANSMISSION:
Out of stock
The BD Diesel 1064234SST transmission kit is designed for heavy-duty applications on 2005 to 2007 Dodge Ram 2500 and 3500 models equipped with the 48RE transmission. This comprehensive upgrade package combines high-performance components with durable construction to enhance your vehicle’s towing capacity, shift quality, and overall drivetrain longevity. The kit includes an upgraded valve body, enhanced governor solenoid, and a high-pressure transducer rated at twice the burst pressure of stock units, ensuring greater reliability under severe operational conditions. The increased line pressure to 190-200 psi facilitates more consistent shift engagement and improved torque transfer, making it suitable for towing and high-horsepower scenarios. Internal modifications such as a modified manual valve for lubrication in all positions and a drilled intermediate shaft for increased lubrication contribute to smoother operation and extended component life. The use of billet steel components—such as the billet input shaft, billet band lever, and billet band strut—provides superior strength to withstand rapid throttle inputs and high torque loads. The heavy-duty aluminum transmission pan, with heat-dissipating fins and a magnetic drain plug, adds two quarts of oil capacity and helps maintain optimal operating temperatures. Additionally, the BD auxiliary full flow filter kit offers extra protection by filtering out debris, while the cooler line case saver prevents damage during cooling operations. Every transmission is dyno-tested to ensure performance consistency before installation. The included torque converter features an enhanced stall suitable for street and towing applications, with a design that reduces overall weight by approximately 12 pounds compared to competitors. This kit is engineered for long-term durability, featuring a cast aluminum stator, new sprag components, and self-centering teeth to maximize torque and minimize wear. Backed by a 36-month/150,000-mile parts warranty and a 12-month/24,000-mile labor warranty, this transmission upgrade delivers reliable performance under demanding conditions. Whether for towing, hauling, or increasing power, the BD Diesel 1064234SST provides a robust solution for your heavy-duty drivetrain needs.
Features:
- Heavy-duty diesel and fleet torque capacity with reinforced internal components
- Premium friction materials for smooth, consistent engagement
- Enhanced thermal capacity to prevent clutch slippage during severe towing
- Designed for long-term drivetrain reliability and increased durability
Fitment:
Dodge Ram 2500 Laramie 2005 to 2007
Dodge Ram 2500 SLT 2005 to 2007
Dodge Ram 2500 Sport 2006 to 2007
Dodge Ram 2500 ST 2005 to 2007
Dodge Ram 2500 TRX4 2006 to 2007
Dodge Ram 3500 Laramie 2005 to 2007
Dodge Ram 3500 SLT 2005 to 2007
Dodge Ram 3500 Sport 2006 to 2007
Dodge Ram 3500 ST 2005 to 2007
| Weight | 329 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 2500 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025021020 |
| brand | BD Diesel |
| part_number | 1064234SST |
