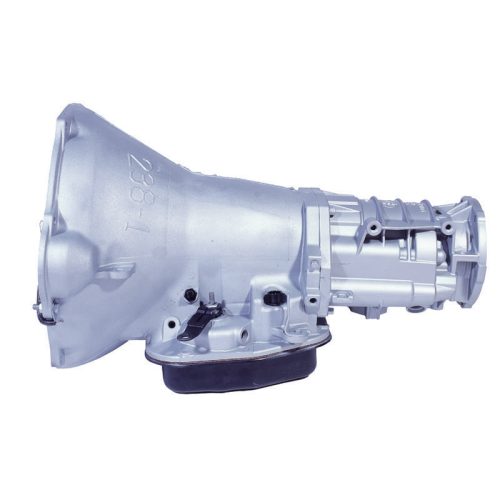

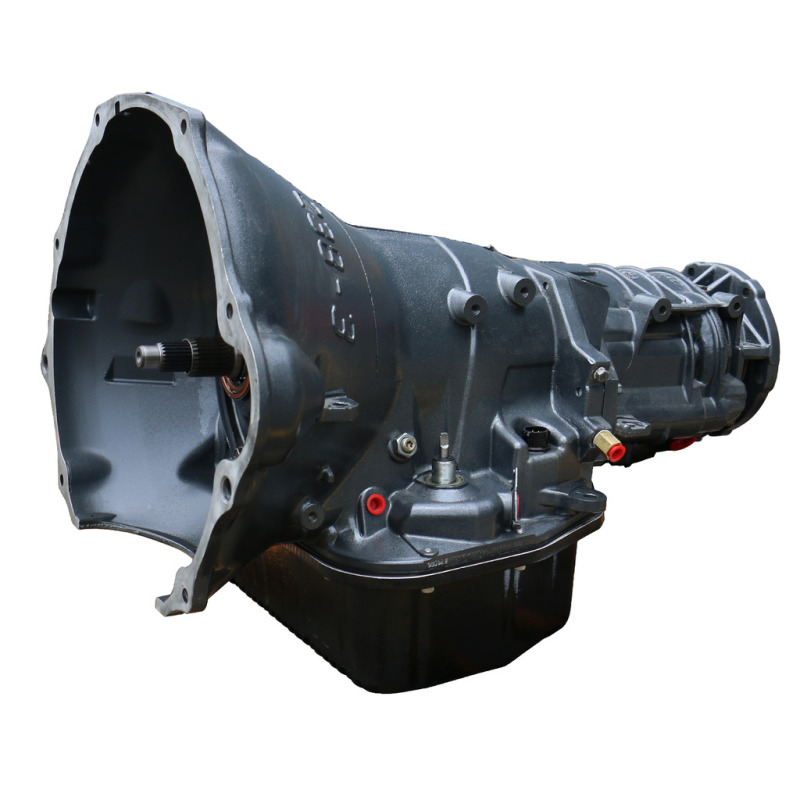

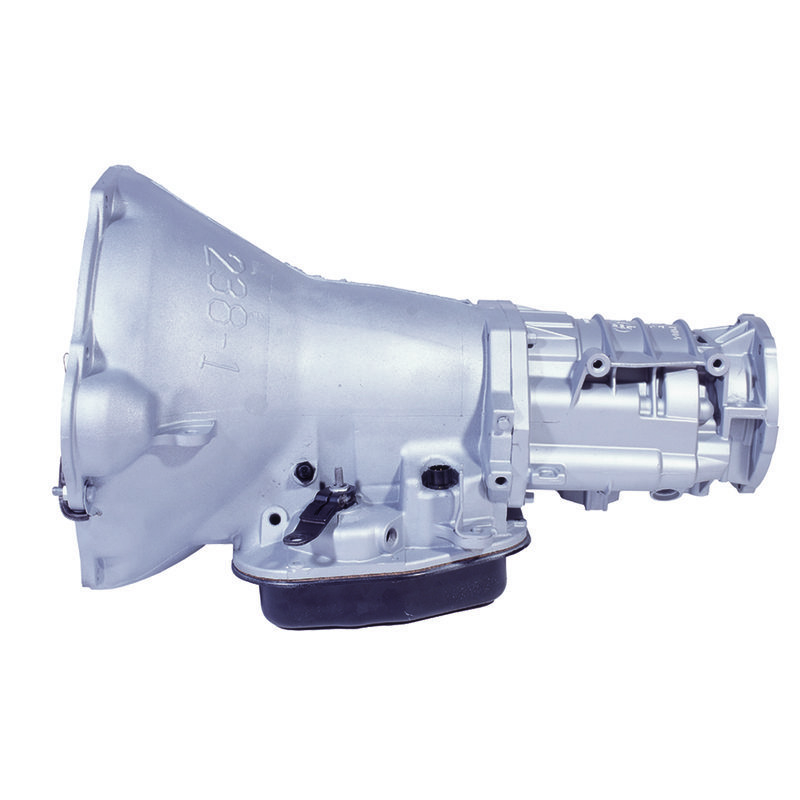

BD Diesel 48RE Transmission Kit – Part # 1064234BF
$9,039.99
All new bushings; New design valve body; Stock thrust washers replaced with roller Torrington bearings saves governor solenoids and reduces friction; Drilled intermediate shaft for increased lube; Modified manual valve for lube in all positions; 47RE transmissions upgraded with more rugged 48RE components; Performance Transmission but with the added touch of a Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower; Clutch Count: OD 6; Clutch Count: OD DIRECT 10; New input shafts and hub; Pan adds 1qt extra oil capacity; Up to 80% higher clutch apply pressures over the stock unit; Pressure increase starts at much lower engine rpm’s and at lighter throttle pedal position movement; Light throttle shift firmness is also maintained; No shuttle shifting problems; Upgraded governor pressure transducer (47RE/48RE); Upgraded governor solenoid – Twice the burst pressure than stock; Cooler line case saver in every transmission; Added heavy-duty clutches with up to 25% more material than stock; Machined forward (rear) beveled pressure plate; Machined overdrive brake (front & rear) pressure plate; Machined direct clutch (front) piston; High temp/energy Raybestos band; Billet band strut & anchor; Billet dual ring accumulator piston; BD auxiliary full flow filter kit for extra protection; Clutch Count: FORWARD 5; Fully rollerized geartrain; Clutch Count: DIRECT 6; Increase the durability of your drivetrain; Revised oil circuits; Handles up to 300% more power and torque than the stock transmission; Extra clutches and stronger internals; BD rigid aluminum heavy duty transmission pan; Pan reduces case flex; Pan reduces internal oil leakage; Pan heat-dissipating fins keep temperature down; Pan magnetic drain plug; Pan magnetic drain plug
BD TorqueMaster Dodge 48RE Transmission – 2005-2007 4wd w/TVV Stepper Motor – c/w Auxiliary Filter & Billet Input
- Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock
- Billet Input Shaft to take the “snap” from rapid throttle and high horsepower
- Use Of Third Party Or OE Converter Will Invalidate Trans. Warranty
- Stock thrust bushings replaced with roller Torrington bearings

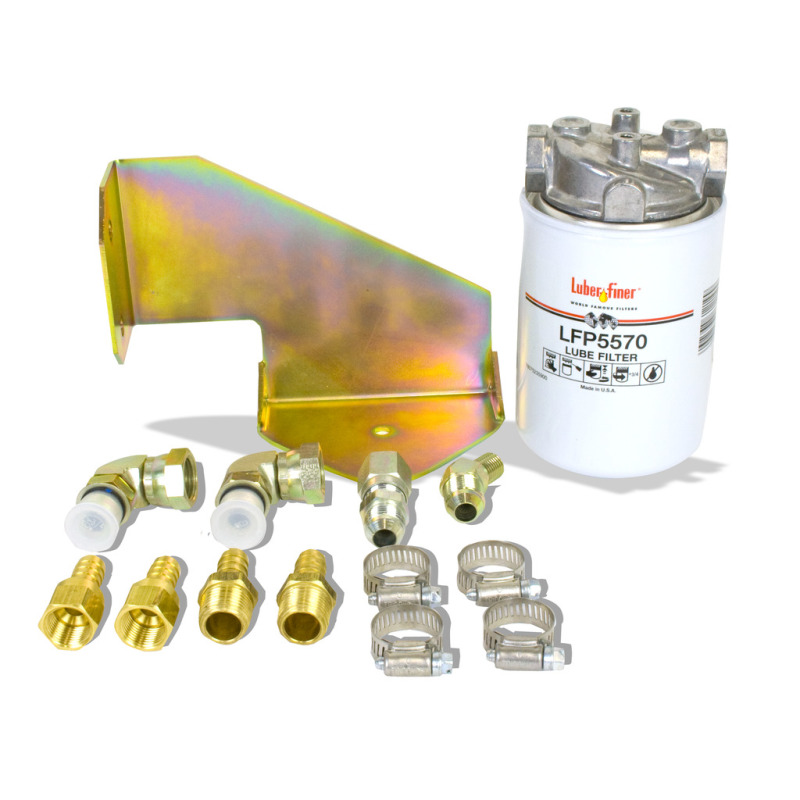

- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- Modified manual valve for lube in all positions
- Pan heat-dissipating fins keep temperature down
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Increase the durability of your drivetrain
- Not Warranted For Race Or Sled Pull Use
- Every transmission is tested on a dyno
- Increased line pressure to 190-200psi
- 36 Month/150000 Mile Limited Warranty
- Billet “Big” fine spline input shaft
- Pan Adds 1 Qt. Extra Oil Capacity
- Each Transmission Is Dyno Tested
- Pan adds 2qt extra oil capacity
- High temp/energy Raybestos band
- No shuttle shifting problems
- Clutch Count: OD DIRECT 10
- Upgraded governor solenoid
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- New Design Valve Body
- No Race Abuse Covered
- Upgraded Valve body
- Magnetic drain plug
- Clutch Count: OD 6
- Billet band lever
- Billet band strut
Out of stock
The BD Diesel 48RE Transmission Kit, part number 1064234BF, is engineered for heavy-duty Dodge Ram trucks from 2006 to 2007, providing superior durability and performance. This transmission features an upgraded billet input shaft designed to withstand the harsh demands of high horsepower and rapid throttle inputs, reducing the risk of snap failures during intense towing or performance driving. Additionally, it incorporates a fully rollerized geartrain and heavy-duty clutches with up to 25% more material than stock, ensuring increased longevity under severe fleet duty.
The transmission includes a redesigned valve body with a new design that improves shift quality and responsiveness, along with an upgraded governor pressure transducer that offers twice the burst pressure of the stock component. The modifications extend to oil circulation, with drilled intermediate shafts for better lubrication and revised oil circuits to handle up to 300% more power and torque than the OEM units. The pan has been reinforced with heat-dissipating fins to keep temperatures down during demanding operations and includes a magnetic drain plug for easier maintenance.
This package also features a BD auxiliary full flow filter kit for enhanced protection against contaminants, a machined forward pressure plate, and a heavy-duty aluminum transmission pan that reduces case flex and internal oil leakage. The upgraded cooler line case saver helps prevent heat-related failures. The transmission is dyno-tested to ensure reliable performance and is backed by a 36-month/150,000-mile limited warranty. Designed with fleet and performance applications in mind, the kit handles increased line pressures up to 190-200 psi, delivering improved shift firmness and durability without shuttle shifting issues. Please note that use of third-party or OEM converters will invalidate the warranty. This transmission is a comprehensive upgrade designed to handle up to 300% more power and torque, making it ideal for towing, high-performance, and fleet applications requiring long-term reliability and enhanced torque capacity.
Features:
- Heavy-duty diesel and fleet torque capacity up to 300% higher than stock units
- Premium friction materials for smooth, consistent engagement and long service life
- Enhanced thermal capacity with heat-dissipating pan fins to prevent clutch slippage under severe towing conditions
- Long-term drivetrain reliability through upgraded internals, increased line pressure, and reinforced components
Fitment:
Dodge Ram 2500 Laramie 2005 to 2007
Dodge Ram 2500 SLT 2005 to 2007
Dodge Ram 2500 Sport 2006 to 2007
Dodge Ram 2500 ST 2005 to 2007
Dodge Ram 2500 TRX4 2006 to 2007
Dodge Ram 3500 Laramie 2005 to 2007
Dodge Ram 3500 SLT 2005 to 2007
Dodge Ram 3500 Sport 2006 to 2007
Dodge Ram 3500 ST 2005 to 2007
| Weight | 250 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 1800 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025007857 |
| brand | BD Diesel |
| part_number | 1064234BF |
