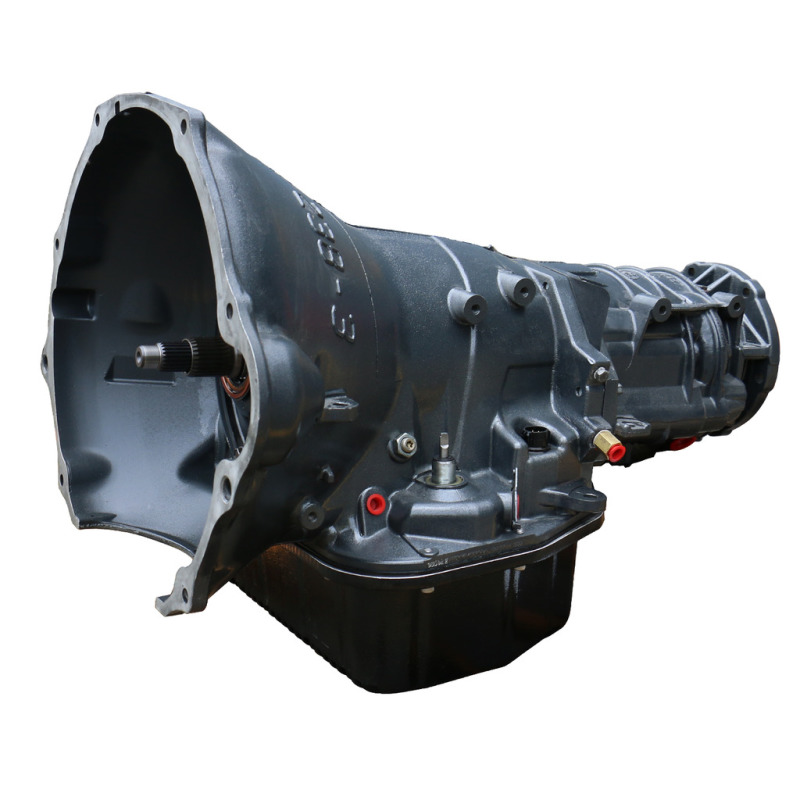

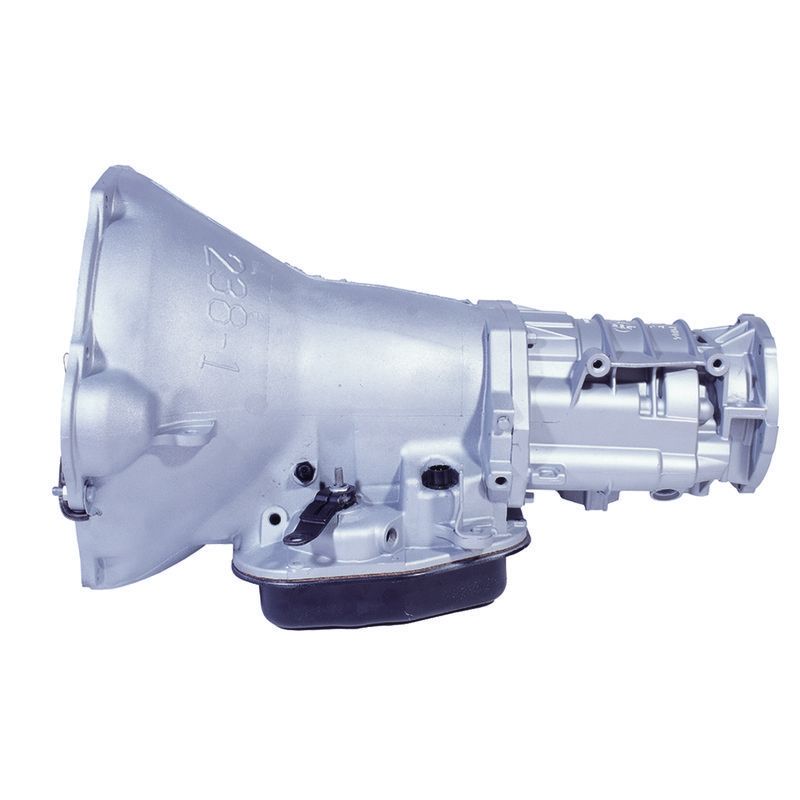

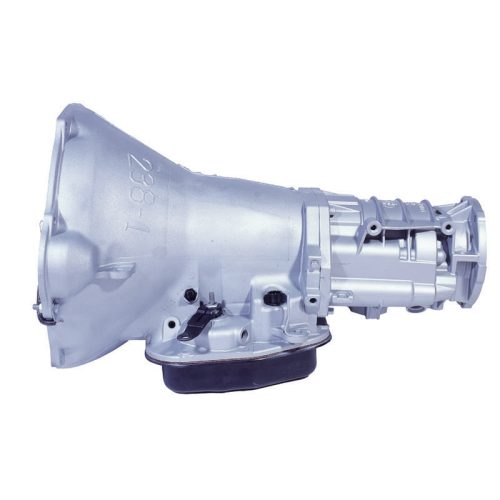

BD Diesel Transmission Kit – Part # 1064194BF for 2003-2004 Dodge Ram 2500/3500 47RE 4WD
$8,923.99
All new bushings; New design valve body; Stock thrust washers replaced with roller Torrington bearings saves governor solenoids and reduces friction; Drilled intermediate shaft for increased lube; Modified manual valve for lube in all positions; 47RE transmissions upgraded with more rugged 48RE components; Performance Transmission but with the added touch of a Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower; Clutch Count: OD 6; Clutch Count: OD DIRECT 10; New input shafts and hub; Pan adds 1qt extra oil capacity; Up to 80% higher clutch apply pressures over the stock unit; Pressure increase starts at much lower engine rpm’s and at lighter throttle pedal position movement; Light throttle shift firmness is also maintained; No shuttle shifting problems; Upgraded governor pressure transducer (47RE/48RE); Upgraded governor solenoid – Twice the burst pressure than stock; Cooler line case saver in every transmission; Added heavy-duty clutches with up to 25% more material than stock; Machined forward (rear) beveled pressure plate; Machined overdrive brake (front & rear) pressure plate; Machined direct clutch (front) piston; High temp/energy Raybestos band; Billet band strut & anchor; Billet dual ring accumulator piston; BD auxiliary full flow filter kit for extra protection; Clutch Count: FORWARD 5; Fully rollerized geartrain; Clutch Count: DIRECT 6; Increase the durability of your drivetrain; Revised oil circuits; Handles up to 300% more power and torque than the stock transmission; Extra clutches and stronger internals; BD rigid aluminum heavy duty transmission pan; Pan reduces case flex; Pan reduces internal oil leakage; Pan heat-dissipating fins keep temperature down; Pan magnetic drain plug
BD TorqueMaster Dodge 48RE Transmission – 2003-2004 4wd c/w Auxiliary Filter & Billet Input
- Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock
- Billet Input Shaft to take the “snap” from rapid throttle and high horsepower
- Use Of Third Party Or OE Converter Will Invalidate Trans. Warranty
- Stock thrust bushings replaced with roller Torrington bearings

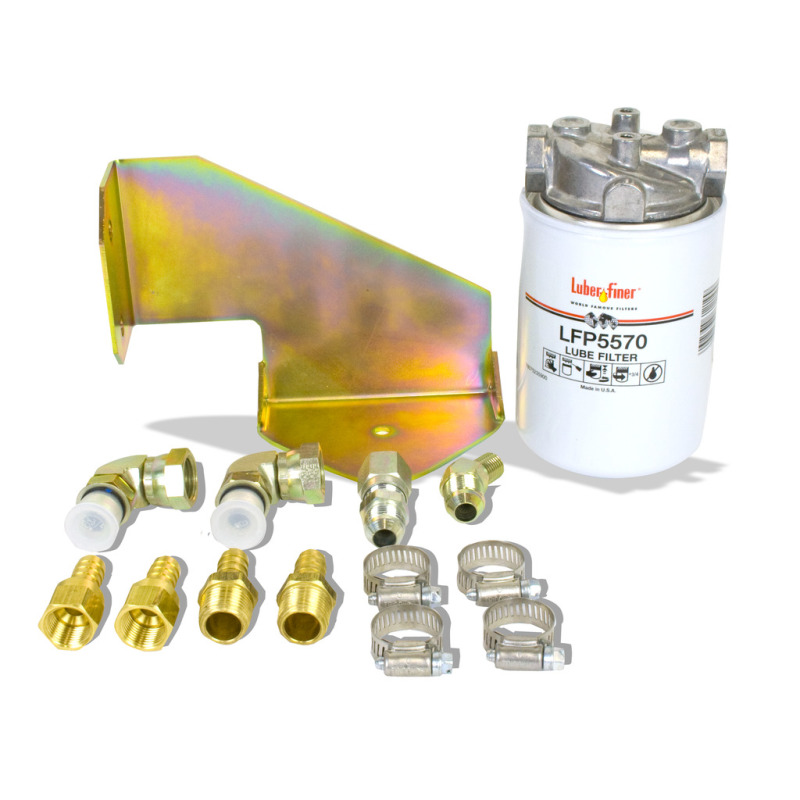

- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- Modified manual valve for lube in all positions
- Pan heat-dissipating fins keep temperature down
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Increase the durability of your drivetrain
- Not Warranted For Race Or Sled Pull Use
- Every transmission is tested on a dyno
- Increased line pressure to 190-200psi
- 36 Month/150000 Mile Limited Warranty
- Billet “Big” fine spline input shaft
- Pan Adds 1 Qt. Extra Oil Capacity
- Each Transmission Is Dyno Tested
- Pan adds 2qt extra oil capacity
- High temp/energy Raybestos band
- No shuttle shifting problems
- Clutch Count: OD DIRECT 10
- Upgraded governor solenoid
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- New Design Valve Body
- No Race Abuse Covered
- Upgraded Valve body
- Magnetic drain plug
- Clutch Count: OD 6
- Billet band lever
- Billet band strut
Out of stock
The BD Diesel 1064194BF transmission upgrade kit is engineered to enhance durability and performance for heavy-duty Dodge Ram trucks equipped with the 47RE transmission. This comprehensive assembly features a billet input shaft designed to withstand the stresses of rapid throttle inputs and high horsepower applications, offering improved responsiveness and longevity. The kit includes upgraded internal components such as heavy-duty clutches with up to 25% more material, a machined beveled pressure plate, and a reinforced overdrive brake pressure plate, all aimed at supporting increased torque capacity and reliable operation under severe towing conditions.
Enhanced lubrication features such as drilled intermediate shafts and a BD auxiliary full flow filter kit ensure proper cooling and oil flow throughout the transmission, reducing heat build-up and extending component life. The pan has been redesigned with heat-dissipating fins and added capacity to maintain optimal operating temperatures, while the case saver reduces internal case flex and oil leakage. Upgraded governor pressure transducers and solenoids provide more precise control, allowing for up to 80% higher clutch apply pressures that begin at lower engine RPMs, resulting in firmer, more consistent shifts without shuttle shifting issues. Every transmission is dyno tested to verify performance and reliability, and the entire assembly is built to handle up to 300% more power and torque than stock units.
This transmission kit also features a durable aluminum heavy-duty pan with a magnetic drain plug, ensuring long-term drivetrain stability. The inclusion of a Billet dual ring accumulator piston, billet band strut, and a high-temp Raybestos band further contribute to the robust design, making it suitable for demanding fleet and towing applications. Note that use of third-party or OEM converters may affect warranty coverage. Designed for easy installation, this kit represents a significant upgrade for those seeking increased power handling, thermal management, and drivetrain resilience in their Dodge Ram 2500 or 3500 truck.
Features:
- Heavy-duty internals and extra clutches support up to 300% more torque and power than stock units
- Premium friction materials for smooth, consistent engagement and high-temperature resistance
- Enhanced thermal capacity with heat-dissipating pan fins and increased oil capacity to prevent slippage and overheating
- Reinforced case and internal components for long-term drivetrain reliability under severe towing and performance demands
Fitment:
Dodge Ram 2500 Laramie 2003
Dodge Ram 2500 SLT 2003 to 2004
Dodge Ram 2500 ST 2003 to 2004
Dodge Ram 3500 Laramie 2003 to 2004
Dodge Ram 3500 SLT 2003 to 2004
Dodge Ram 3500 ST 2003 to 2004
| Weight | 250 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 1800 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025007826 |
| brand | BD Diesel |
| part_number | 1064194BF |
