BD Diesel 68RFE Transmission & Converter Package – Part # 1064295BM
$15,333.99

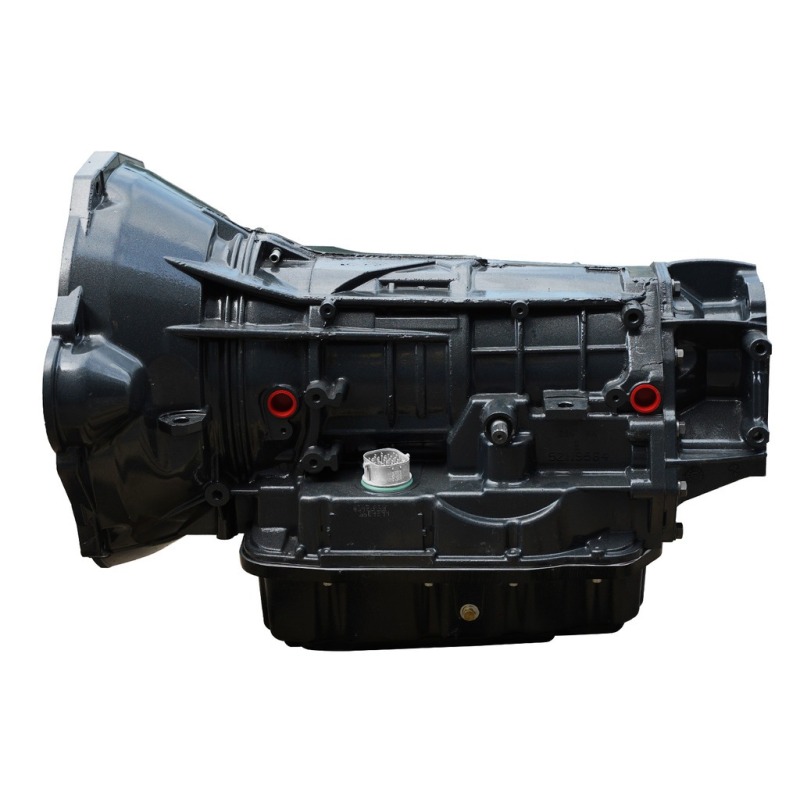

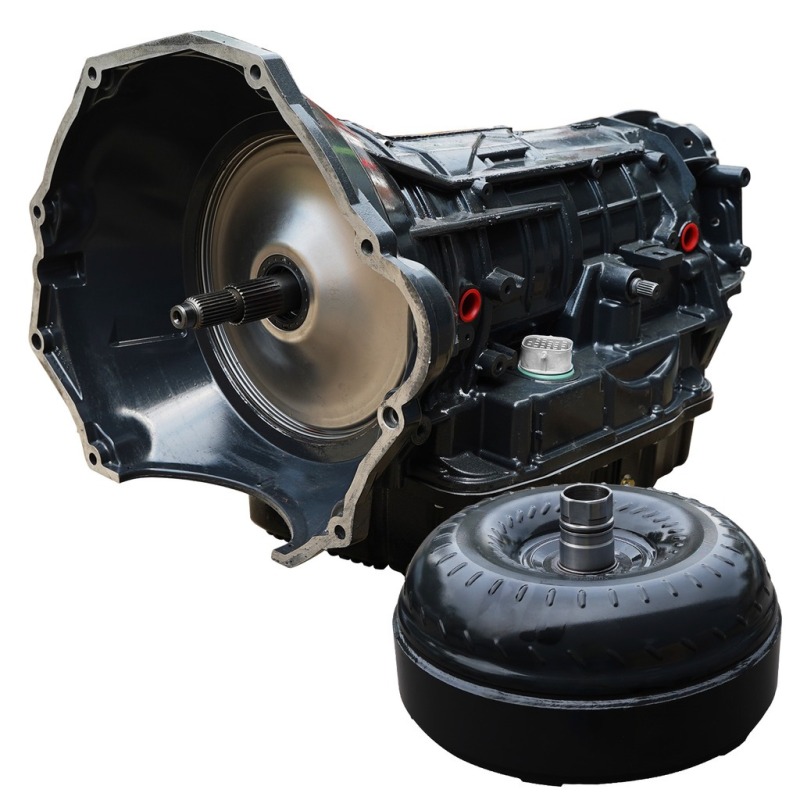

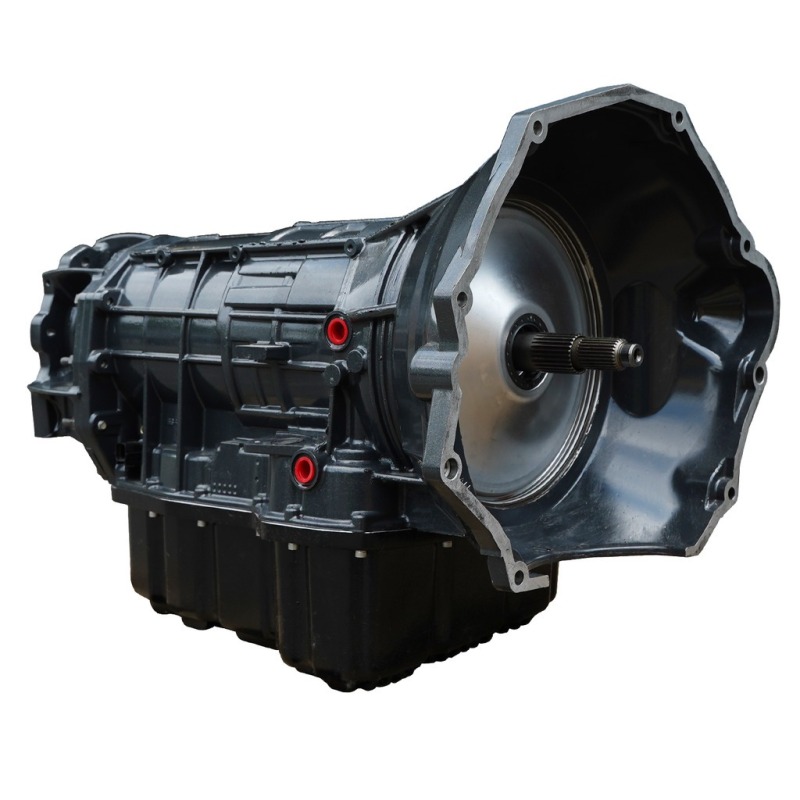

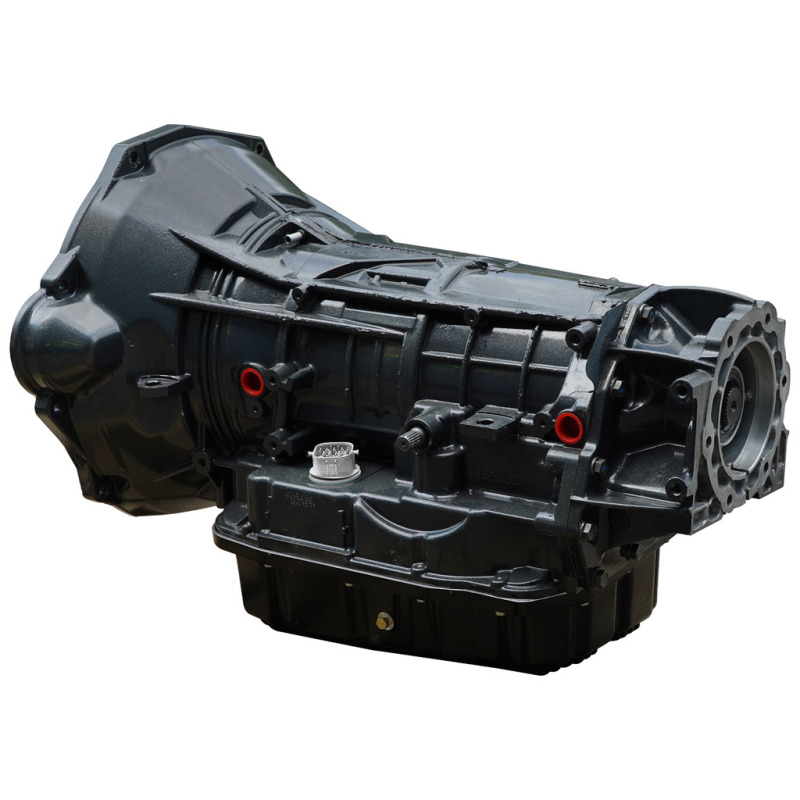

The BD TrackMaster 68RFE transmission is built for robust reliability in high-load applications! Designed for modified Cummins-equipped RAM Trucks, the TrackMaster increases strength with a modified valve body, billet input shaft, and HD Billet OD Drum. These modifications increase the torque capacity of the clutch packs, specifically with nearly 50% increased OD clutch apply! This is obtained with the oversized HD OD drum, combined with the BD Big Stack OD clutch pack, utilizing the ProTech68 valve body! The transmission also receives a BD Diesel Deep aluminum pan, for an additional 4.5 quarts of fluid, helping to keep transmission temperatures cool while towing. Every TrackMaster 68RFE transmission package includes a billet multi-disc ProForce 3D enhanced stall torque converter and is dyno tested before shipping.
Trackmaster Transmission Kit; 68RFE Transmission; Incl. Converter Package;
- Additional Clutches For Increased Torque Holding Capacity [33 Percent More C2 And OD Clutches] For Less Slip Under Load
- Additional clutches for increased torque holding capacity (33% more C2 and OD clutches), for less slip under load
- Transmission: Heavy-duty billet OD drum for increased apply area, increasing torque capacity of the OD clutch

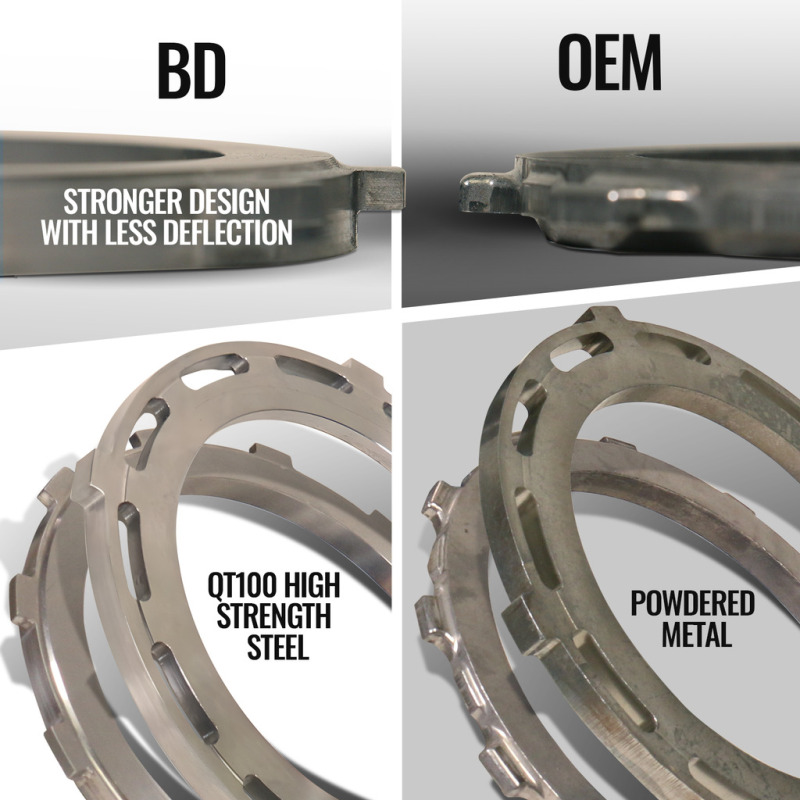

- BD QT100 billet steel pressure plates for increased clutch count, and reduced deflection and distortion
- BD QT100 Billet Steel Pressure Plates For Increased Clutch Count And Reduced Deflection And Distortion
- Deep aluminum pan for an additional 4.5 quarts of fluid capacity to help keep temperatures lower
- Heavy Duty Billet OD Drum For Increased Apply Area; Increasing Torque Capacity Of The OD Clutch
- Heavy Duty Cam And Roller Low Reverse Sprag [One Way Clutch] For Increased Sprag Load Capacity
- Riveted piston ensures alignment & eliminates vibration or embrittlement compared to welding
- Heavy-duty cam & roller low-reverse sprag (one-way clutch) for increased sprag load capacity
- OD clutch has 8+8 clutches, Rev has 2+2, 2C has 3+3, 4C has 3+3, UD has 5+5, and LR has 7+7
- Self-centering trapezoid clutch teeth design increases contact decreases wear and chatter
- Billet steel 2C piston girdle to allow increased clutch capacity and broader apply area
- ProTech68 gasket-equipped hard anodized valve body to eliminate internal cross-leaks
- ProTech68 Gasket Equipped Hard Anodized Valve Body To Eliminate Internal Cross Leaks
- TCC limit valve machined and sleeved to address high wear area, and eliminate leaks
- TCC Limit Valve Machined And Sleeved To Address High Wear Area And Eliminate Leaks

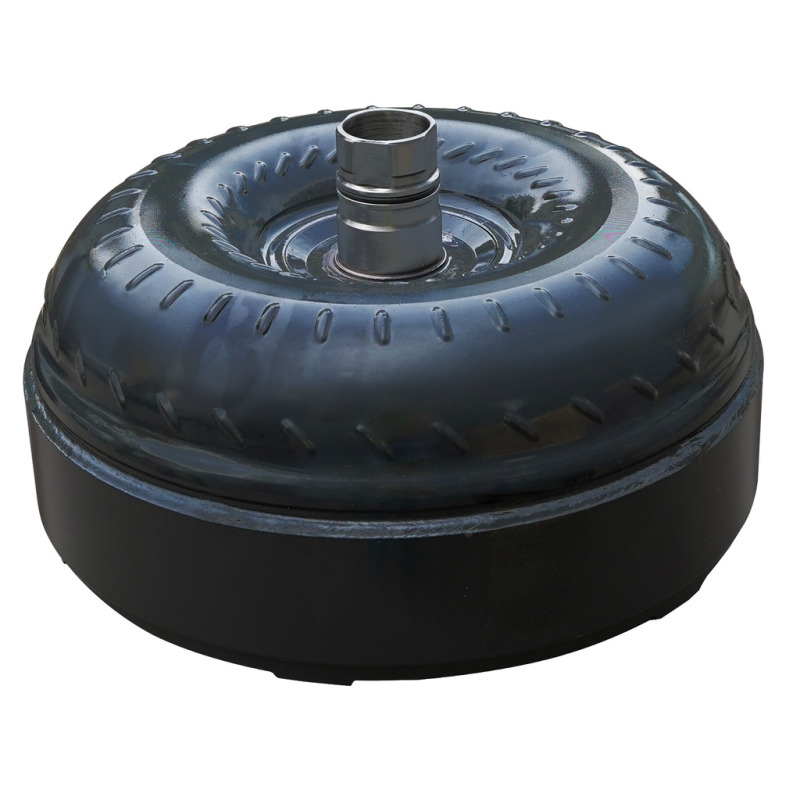

- Billet Proforce 3D Torque Converter: Enhanced Stall – Street/Towing applications
- Thicker steel BD accumulator plate to eliminate blowout and reduce leakage
- Billet steel sleeved SSV bore to eliminate common leak area in 68RFE
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Billet 4c spring retainer for better snap ring retention
- New sprag components ensure long term durability
- Billet input shaft for increased load capacity
- Thrust bearings – not plastic thrust washers

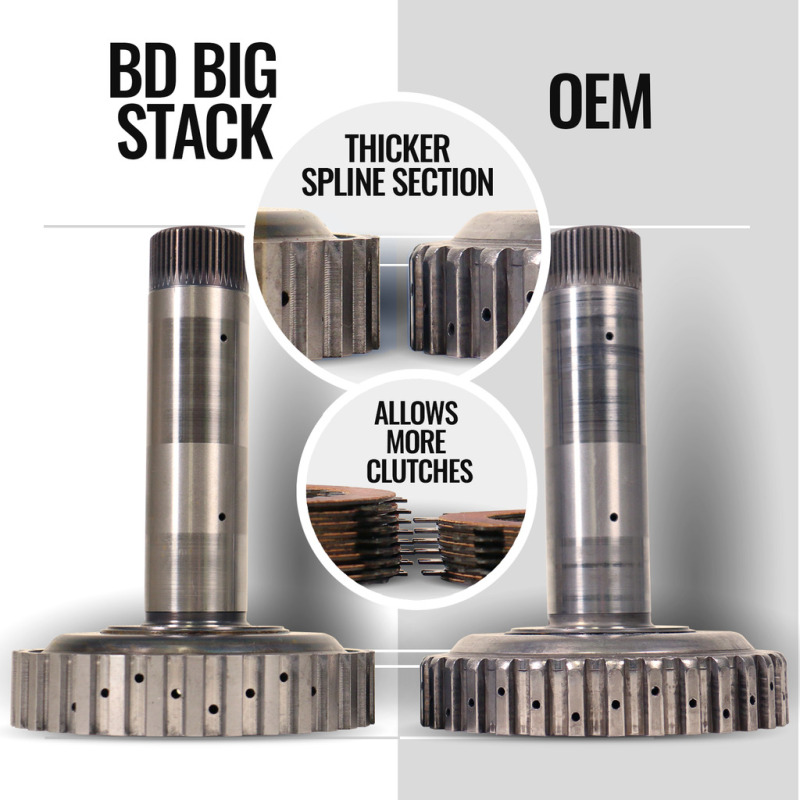

- BD Big Stack OD shaft for 16 apply surfaces
- HD springs absorb shock of engagement
- Increased three surface clutch count
- Cast stator designs maximizes torque
- Eliminates warpage from clutch heat
- Stamp forged 1-piece cover
Out of stock
The BD Diesel 68RFE Transmission & Converter Package is engineered for heavy-duty performance in high-load applications, specifically designed for 2019 Ram 2500 and 3500 trucks equipped with the 6.7L Cummins engine. This package features a robust billet input shaft and a heavy-duty billet OD drum that significantly increase torque capacity by expanding the apply area and reducing slip under severe towing and hauling conditions. The inclusion of a BD Big Stack OD clutch pack and a ProTech68 valve body enhances clutch engagement and durability, ensuring consistent performance even in demanding fleet operations. The transmission is equipped with a deep aluminum pan, providing an additional 4.5 quarts of fluid capacity, which helps maintain lower temperatures and prolongs transmission life during heavy towing cycles. Each unit undergoes dyno testing before shipping to guarantee quality and reliability.
The billet multi-disc ProForce 3D enhanced stall torque converter delivers improved stall performance, optimized for street and towing applications. Its design allows for smoother engagement and increased torque transfer, reducing stress on drivetrain components. The package includes high-strength components such as a billet steel pressure plate, a hardened TCC limit valve, and a cast stator, all working together to improve overall transmission durability and lifespan. Special features like riveted pistons, an improved sprag assembly, and thicker steel components contribute to enhanced resistance against wear and failure in extreme conditions. The BD Diesel 68RFE transmission package also incorporates oil flow improvements like a furnace brazed turbine fin and a sleeved SSV bore to ensure efficient fluid coupling and heat dissipation.
This comprehensive package is suitable for fleet operators and heavy-duty users seeking reliable, high-performance transmission upgrades. The combination of reinforced components and advanced engineering ensures longevity, torque capacity, and smooth operation under severe towing and payload demands, making it an excellent choice for demanding commercial applications.
Features:
- Heavy-duty billet input shaft and OD drum increase torque capacity and durability for high-load towing.
- Premium friction materials and a Big Stack OD clutch pack provide smooth engagement and reduced slip under severe conditions.
- Enhanced thermal capacity through a deep aluminum pan and brazed turbine fins helps prevent overheating and maintains optimal operating temperatures.
- Built with high-strength components like billet steel pressure plates, a hardened TCC limit valve, and a cast stator for long-term drivetrain reliability.
Fitment:
Ram 2500 Big Horn 2019 to 2024
Ram 2500 Laramie 2019 to 2024
Ram 2500 Laramie Longhorn 2019 to 2021
Ram 2500 Limited 2019 to 2024
Ram 2500 Limited Longhorn 2021 to 2024
Ram 2500 Lone Star 2019 to 2024
Ram 2500 Rebel 2023 to 2024
Ram 2500 Special Service 2024
Ram 2500 Tradesman 2019 to 2024
Ram 3500 Big Horn 2019 to 2024
Ram 3500 Laramie 2019 to 2024
Ram 3500 Laramie Longhorn 2019 to 2020
Ram 3500 Limited 2019 to 2024
Ram 3500 Limited Longhorn 2021 to 2024
Ram 3500 Lone Star 2019 to 2022
Ram 3500 SLT 2019 to 2024
Ram 3500 Special Service 2024
Ram 3500 Tradesman 2019 to 2024
| Weight | 315 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| carb_acknowledgement_required | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| regular_stock | t |
| core charge | 2500 |
| units_per_sku | 1 |
| upc | 990011412063 |
| brand | BD Diesel |
| part_number | 1064295BM |
