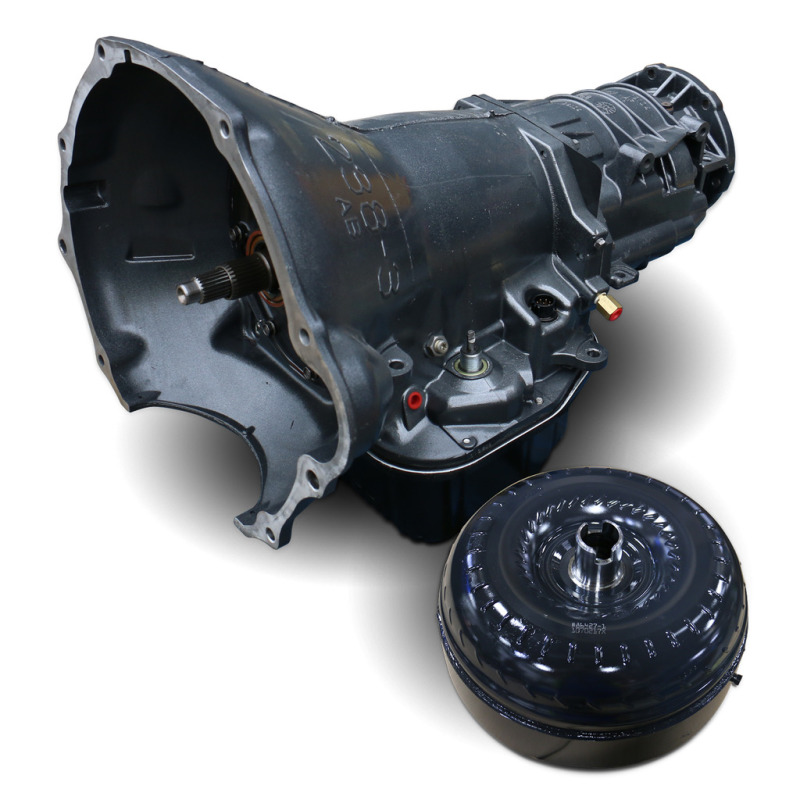

BD Diesel Stage 4 Transmission Kit – Part # 1064164SS
$6,519.99
Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower. Billet ‘Big’ fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall. Torque Multiplying cast aluminum stators. Lower RPM Response than the stock converter. More efficient operation, less heat and better fuel economy. Stamp-forged steel front cover, furnace brazed fins, up to triple the mount of lockup clutch material. Warranty- 36 Month/150,000 Miles on Parts, 12 Month/24000 miles on Labor.
Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
- Upgraded governor solenoid – Twice the burst pressure than stock
- Stock thrust bushings replaced with roller Torrington bearings
- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- Up to triple the amount of lock-up clutch material
- Upgraded governor pressure transducer (47RE/48RE)
- Pan heat-dissipating fins keep temperature down
- Modified manual valve for lube in all positions
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Enhanced Stall – Street/Towing applications
- Lower rpm response than the stock converter
- Increase the durability of your drivetrain
- Torque multiplying cast aluminum stators
- Not warranted for Race or Sled Pull use
- Every transmission is tested on a dyno
- Upgraded Governor Pressure Transducer
- Increased line pressure to 190-200psi
- Less heat and better fuel economy
- High temp/energy Raybestos band
- Torque Convertor Enhanced Stall
- Pan adds 2qt extra oil capacity
- Stamp-forged steel front cover
- No Shuttle Shifting Problems
- Stamped Forged 1 Piece Cover
- Upgraded Governor Solenoid
- Clutch Count: OD DIRECT 10
- More Efficient Operation
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- Upgraded 48RE sunshell
- No Race Abuse Covered
- Billet barrel strut
- Magnetic drain plug
- Upgraded Valve body
- Furnace-brazed fins
- Furnace Brazed Fins
- Clutch Count: OD 6
- TORQUE CONVERTOR:
- Billet band lever
- Aluminum HD Pan
- TRANSMISSION:
Out of stock

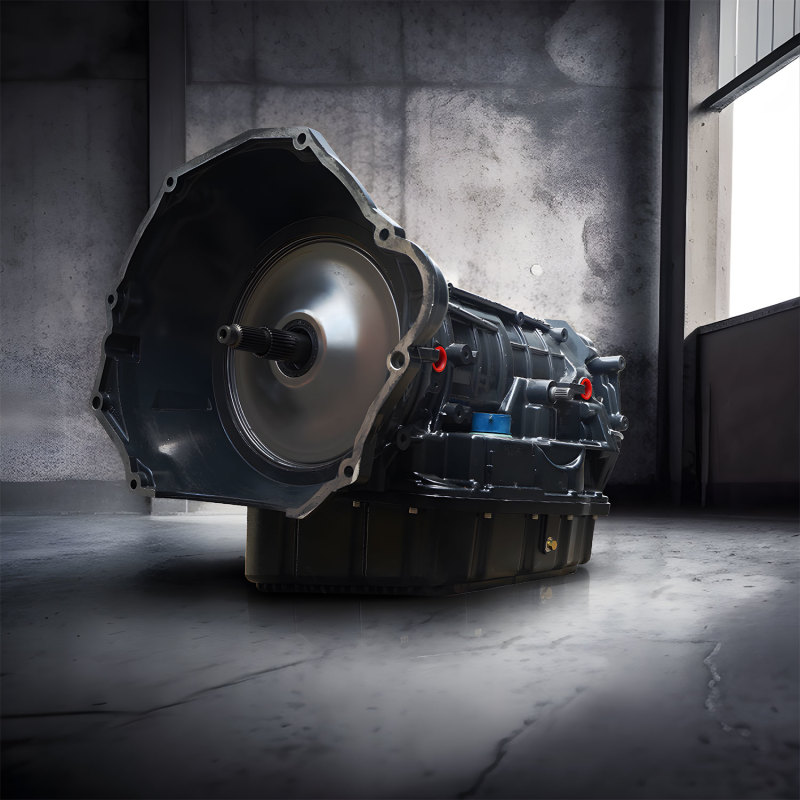

The BD Diesel Stage 4 Transmission Kit (Part # 1064164SS) is designed to optimize heavy-duty performance for 1996-1998 Dodge Ram 2500 and 3500 models equipped with the 47RE transmission. This comprehensive upgrade includes a fully rebuilt and reinforced transmission assembly with enhanced internal components that significantly improve durability, torque capacity, and operational efficiency. Features such as an upgraded governor solenoid with twice the burst pressure of stock, a high-capacity aluminum transmission pan with heat-dissipating fins, and a billet input shaft designed to handle rapid throttle and high horsepower loads make this kit ideal for demanding towing and performance applications. The inclusion of a BD auxiliary full flow filter ensures additional protection against debris, extending the lifespan of your drivetrain.
The enhanced stall torque converter offers lower RPM response, improved power transfer, and better fuel economy, making it suitable for street and towing use. The high-temp Raybestos band, billet band lever, and billet band strut contribute to increased reliability under severe conditions. Every transmission is tested on a dynamometer to guarantee quality and performance consistency. This kit also features a steel front cover with furnace-brazed fins for superior heat management, a drilled intermediate shaft for increased lubrication, and a cooler line case saver for added durability. Designed with precision, the kit includes a 2-quart extra capacity pan with heat dissipation fins, magnetic drain plug, and an upgraded 48RE sun shell.
Installation requires adherence to specific procedures, including replacing the pilot bearing and resurfacing or replacing the flywheel. Proper break-in and lubrication are critical to achieving maximum lifespan and performance. This package is backed by a 36-month/150,000-mile warranty on parts and a 12-month/24,000-mile warranty on labor, ensuring peace of mind for your investment. Suitable for high-torque applications, this kit is ideal for fleet, towing, and heavy-duty use, providing enhanced durability, thermal management, and operational efficiency for your Dodge Ram transmission system.
Features:
- Upgraded governor solenoid with twice the burst pressure of stock for reliable shifting
- High-capacity aluminum transmission pan with heat-dissipating fins to maintain optimal operating temperature
- Enhanced stall torque converter for improved power transfer and fuel efficiency
- Includes BD auxiliary full flow filter kit for extra protection against debris and contaminants
Fitment:
Dodge Ram 2500 Base 1996 to 1998
Dodge Ram 3500 Base 1996 to 1998
| Weight | 250 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 2500 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025020573 |
| brand | BD Diesel |
| part_number | 1064164SS |
