BD Diesel Transmission – 07.5-18 Dodge 68RFE 2WD – Part # 1064262
$9,740.99
BD Diesel Performance is unique among its peers in that it designs, manufactures and distributes a wide range of products specifically engineered for performance diesel applications. Located in Abbotsford, British Columbia, Canada, BD’s state-of-the-art facility covers 65,000 square feet, and employs 60 plus highly-trained individuals. The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning diesel pick-up truck market. BD’s roots, however, actually date back to 1972, when Valley Fuel Injection, Ltd. first opened its doors. Today, Valley Fuel Injection and BD Diesel Performance are one, with eight specialty divisions that focus on diesel power train components: Fuel Injection Calibration Department, Exhaust Brake Manufacturing, Electronic Circuit Design and Assembly, Transmission and Torque Converter Design and Remanufacturing, Turbocharger Design, Installation and Research and Development. BD’s comprehensive approach to the diesel performance aftermarket ensures not only quality products, but educated dealers and satisfied customers. Thank you for your interest in BD Diesel Performance!

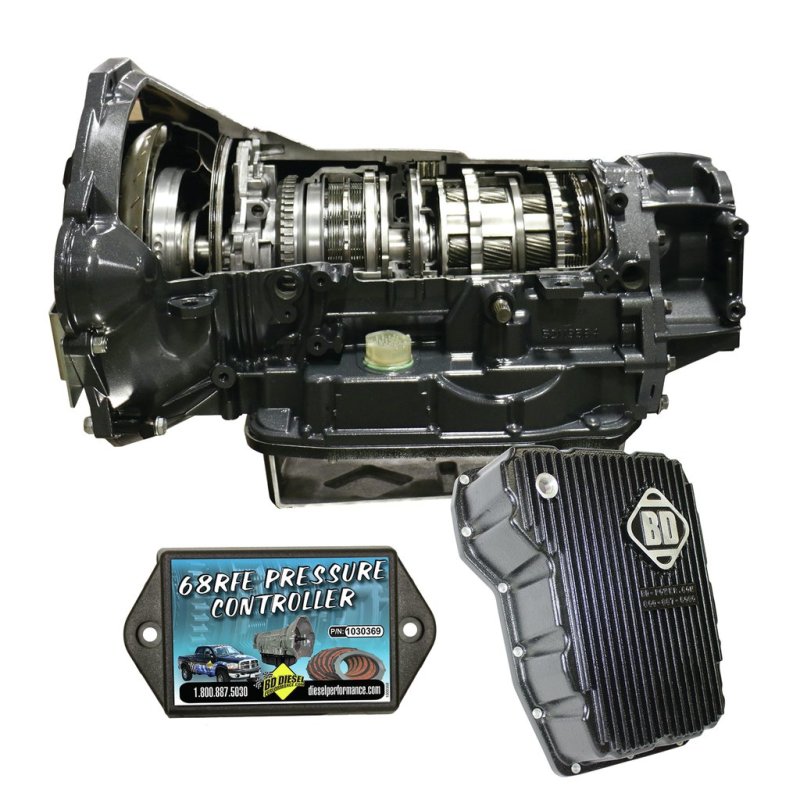

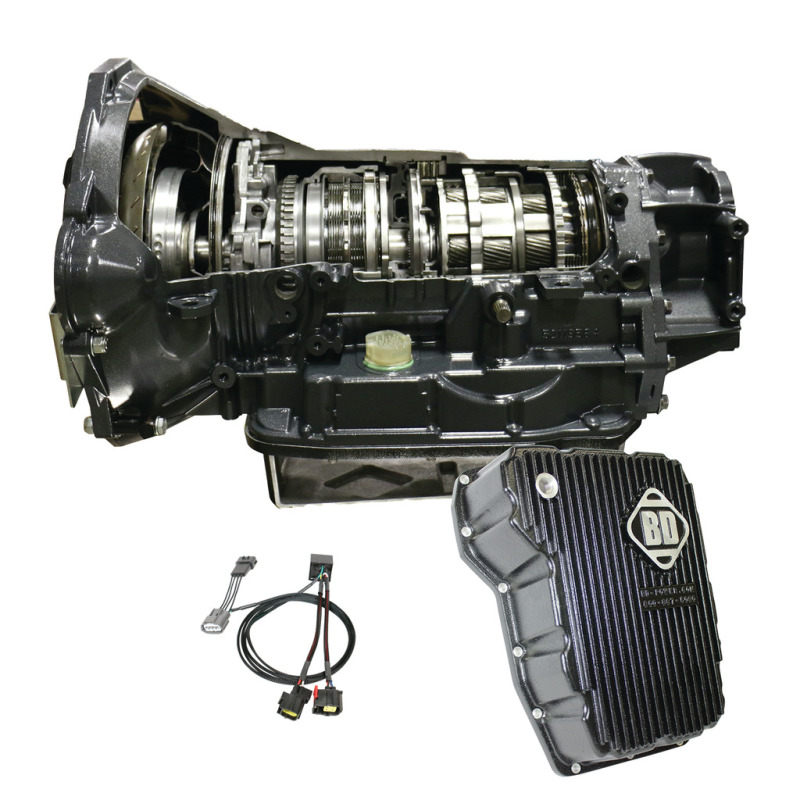

BD TowMaster Dodge 68RFE Transmission – 2007.5-2018 2wd

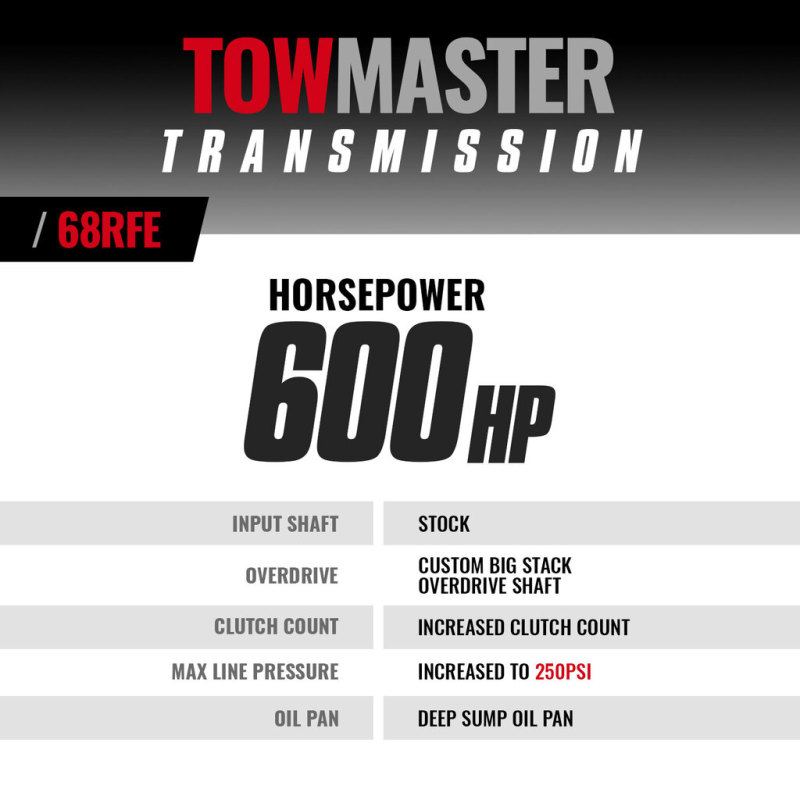

- BD ProTech68 pressure control module ramps up line pressure to 250 psi using MAP sensor to input load and adjust pressure required
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- TCC limit valve machined and sleeved to address high wear area with in pump
- Hard anodized valve body and new solenoid pack installed in every unit
- Use Of Third Party Or OE Converter Will Invalidate Trans. Warranty
- Heavy Duty Cam And Roller Design Low Reverse One Way Clutch
- Over Drive clutches 33% increase & 2C clutches 33% increase
- Heavy duty cam & roller design low reverse one way clutch
- Valve Body Separator Plate Stops Internal Cross Leaks
- QT100 Pressure Plates For Increased Clutch Counts
- 36 Month/150000 Mile Limited Warranty

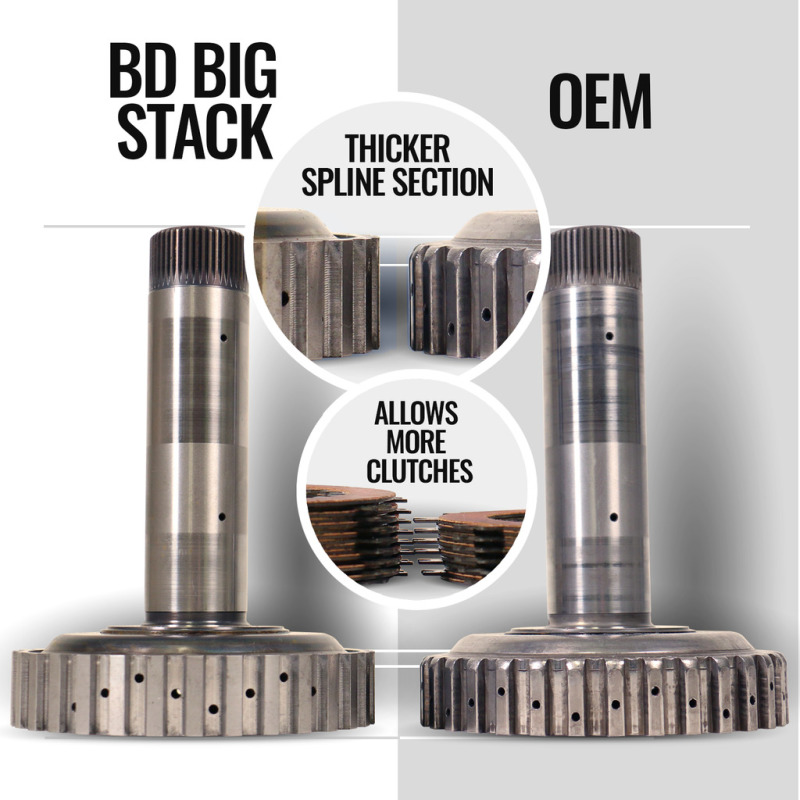

- Custom Big Stack overdrive shaft
- BD reinforced accumulator plate
- New 4C billet spring retainer
- No Race Abuse Covered
Out of stock
The BD Diesel 68RFE Transmission for Dodge trucks from 2007.5 to 2018 is engineered for heavy-duty performance and durability. Designed specifically for 2WD applications, this transmission unit incorporates advanced features to enhance shift quality, torque capacity, and overall reliability under demanding conditions. The pressure control module, BD ProTech68, ramps up line pressure to 250 psi based on load input from the MAP sensor, ensuring precise control during high-stress towing and hauling. Additionally, durable QT100 pressure plates allow for increased clutch counts, while reducing deflection and distortion within the clutch drum for improved longevity and consistent performance. The custom bonded gasket valve body separator plate enhances line pressure and prevents internal cross leaks, contributing to smoother operation and increased durability.
The deep sump oil pan provides additional fluid capacity and cooling capabilities, which are critical for maintaining optimal operating temperatures during severe towing or heavy-duty use. Reinforcements like the steel girdle on the 2C piston and the machined and sleeved TCC limit valve address high-wear areas, extending transmission life. The valve body features a hard anodized finish, and a new solenoid pack is installed in every unit to ensure reliable electrical operation. To maximize durability, this transmission includes heavy-duty components such as a low reverse one-way clutch, overdrive clutches with a 33% increase in capacity, and a custom big stack overdrive shaft.
The BD Diesel 68RFE transmission is backed by a 36-month/150,000-mile limited warranty, ensuring confidence in its performance. It is crucial to note that using third-party or OEM converters will invalidate the warranty. This product is a high-performance upgrade designed for severe fleet duty, towing, and power-enhanced applications, providing long-term drivetrain reliability and improved shift response under demanding conditions. Proper installation, including replacing the pilot bearing and resurfacing or replacing the flywheel, is essential for optimal performance and longevity.
Fitment:
Dodge Ram 2500 Laramie 2007 to 2010
Dodge Ram 2500 SLT 2007 to 2010
Dodge Ram 2500 ST 2007 to 2010
Dodge Ram 2500 SXT 2008 to 2010
Dodge Ram 2500 TRX 2010
Dodge Ram 3500 Laramie 2007 to 2010
Dodge Ram 3500 SLT 2007 to 2010
Dodge Ram 3500 Sport 2007
Dodge Ram 3500 ST 2007 to 2010
Dodge Ram 3500 SXT 2008 to 2009
Ram 2500 Big Horn 2013 to 2018
Ram 2500 Laramie 2011 to 2018
Ram 2500 Laramie Limited 2014 to 2015
Ram 2500 Laramie Longhorn 2011 to 2018
Ram 2500 Limited 2016 to 2018
Ram 2500 Lone Star 2013 to 2015
Ram 2500 Outdoorsman 2012 to 2016
Ram 2500 SLT 2011 to 2018
Ram 2500 ST 2011 to 2013
Ram 2500 Tradesman 2013 to 2018
Ram 3500 Big Horn 2013 to 2018
Ram 3500 Laramie 2011 to 2018
Ram 3500 Laramie Limited 2014 to 2015
Ram 3500 Laramie Longhorn 2011 to 2018
Ram 3500 Limited 2016 to 2018
Ram 3500 Lone Star 2013 to 2015
Ram 3500 Lone Star 2017
Ram 3500 SLT 2011 to 2018
Ram 3500 ST 2011 to 2013
Ram 3500 Tradesman 2013 to 2018
| Weight | 240 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 1800 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025018242 |
| brand | BD Diesel |
| part_number | 1064262 |
