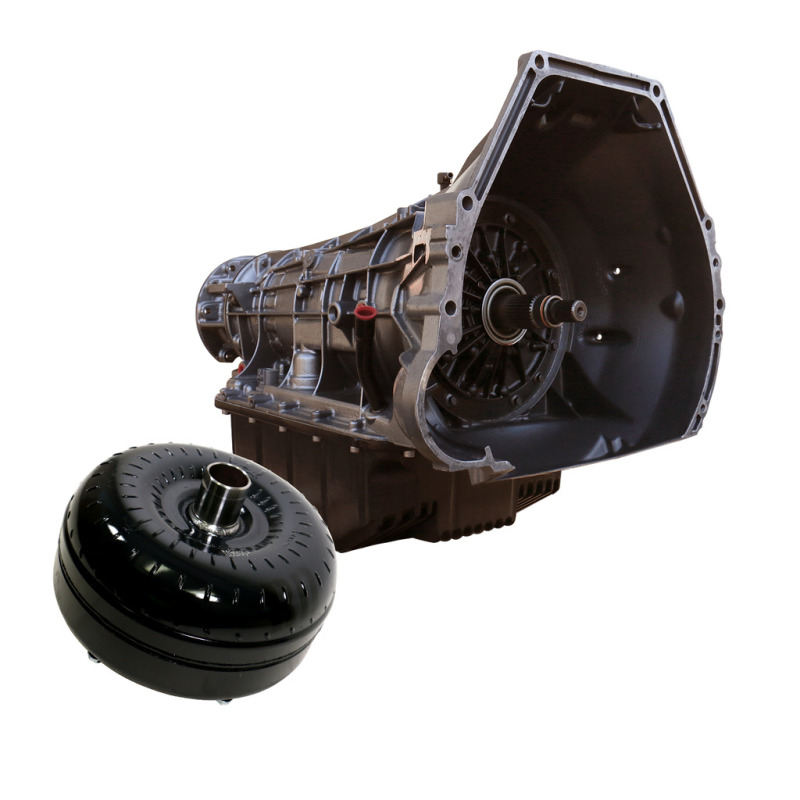

BD Diesel 4R100 Transmission and Converter Package – Part # 1064444SM
$8,736.99
Transmission- Increase the durability of your drivetrain. BD aluminum HD deep pan, increases oil capacity by 6qt. Re-calibrated accumulator body, Quicker, firmer shifts. Full shift kit with line mod valve to increase pressures. Increased pressure to converter. Added lube circuits to OD planet. Added lube and support to output and intermediate shafts. Drilled and tapped direct and intermediate feeds to prevent leaks at case. Upgraded OD snap ring. Machined center support. Reworked front pump, Fully rollerized geartrain. Clutch Count: COAST CLUTCH 2, Clutch Count: FORWARD 5, Clutch Count: LOW REVERSE 7, Clutch Count: INTERMEDIATE 4, Clutch Count: OVERDRIVE 4. Each transmission is dyno tested. Torque Convertor- Enhanced Stall – Street/Towing applications. Torque multiplying cast aluminum stators. Lower rpm response than the stock converter. More efficient operation. Less heat and better fuel economy. Stamp-forged steel front cover, Furnace-brazed fins. Up to triple the amount of lock-up clutch material. Warranty-> Parts- 36 Month/150,000 miles; Labor- 12 Month/24000 Miles.
Transmission Kit; Complete Trans; Incl. Auxiliary Filter Kit; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
- Drilled and tapped direct and intermediate feeds to prevent leaks at case
- 1990-2003 include auxiliary frame mounted full flow filter kit
- Full shift kit with line mod valve to increase pressures
- Added lube and support to output and intermediate shafts
- BD aluminum HD deep pan, increases oil capacity by 6qt
- Clutch Count: INTERMEDIATE 4 (33% increase over stock)
- Clutch Count: LOW REVERSE 7 (17% increase over stock)
- Clutch Count: OVERDRIVE 4 (33% increase over stock)
- Up to triple the amount of lock-up clutch material
- Clutch Count: FORWARD 5 (25% increase over stock)
- Lower rpm response than the stock converter
- Enhanced Stall – Street/Towing applications
- Increase The Durability Of Your Drivetrain
- Torque multiplying cast aluminum stators
- Torque Convertor Has Machined Positions
- Aluminum HD Deep Transmission Pan
- Less heat and better fuel economy
- Added lube circuits to OD planet
- Each transmission is dyno tested
- Increased pressure to converter
- Stamp-forged steel front cover
- Re-calibrated accumulator body
- Stamped Forged 1 Piece Cover
- Clutch Count: COAST CLUTCH 2
- Fully Rollerized Geartrain
- More Efficient Operation
- Machined center support
- Clutch Count: DIRECT 5
- Quicker, firmer shifts
- Quicker Firmer Shifts
- No Race Abuse Covered
- Upgraded OD snap ring
- Furnace Brazed Fins
- Furnace-brazed fins
- Reworked front pump
- TORQUE CONVERTOR:
- TRANSMISSION:
2 in stock
Enhance the durability and performance of your Ford F-250 Super Duty with the BD Diesel 4R100 Transmission and Converter Package, designed for models from 2000 to 2003. This comprehensive upgrade includes a fully rebuilt transmission featuring a high-performance stage 4 shift kit with line mod valve to increase pressure and improve shift firmness, along with a reinforced aluminum deep pan that increases oil capacity by six quarts for better cooling and lubrication. The transmission incorporates drilled and tapped feeds to prevent leaks, a re-calibrated accumulator body for precise control, and a fully rollerized geartrain to ensure long-term reliability under heavy-duty conditions. Clutch counts have been increased across the board—intermediate by 33%, overdrive by 33%, forward by 25%, and low reverse by 17%—to handle higher torque loads and towing demands. Each transmission is dyno tested to guarantee performance, and the package includes an upgraded torque converter with an enhanced stall for street and towing applications, featuring a cast aluminum stator for improved torque multiplication and efficiency. The converter’s lower RPM response translates into better fuel economy and less heat generation, extending component life. Additional features include a furnace-brazed steel front cover with fins for heat dissipation, an upgraded snap ring, and a machined center support for increased robustness. This package also includes an auxiliary full-flow filter kit for 1990-2003 models, ensuring clean fluid flow for prolonged component life. Designed with heavy-duty applications in mind, this assembly improves drivetrain durability, provides smoother shifts, and ensures reliable operation under demanding conditions. Each unit is built to meet the rigorous standards of fleet and commercial use, backed by a 36-month/150,000-mile parts warranty and a 12-month/24,000-mile labor warranty. Proper installation and break-in procedures are essential for optimal performance and longevity of this high-performance transmission and torque converter package.
Features:
- Heavy-duty drivetrain upgrade with increased clutch counts for enhanced torque capacity
- Premium friction materials designed for smooth engagement and durability under severe towing
- Enhanced thermal capacity to prevent clutch slippage and reduce heat under heavy loads
- Long-term reliability with dyno-tested units, reinforced components, and a comprehensive warranty
Fitment:
Ford F-250 Super Duty Lariat 1999 to 2003
Ford F-250 Super Duty XL 1999 to 2003
Ford F-250 Super Duty XLT 1999 to 2003
Ford F-350 Super Duty King Ranch 2003
Ford F-350 Super Duty Lariat 1999 to 2003
Ford F-350 Super Duty XL 1999 to 2003
Ford F-350 Super Duty XLT 1999 to 2003
| Weight | 289 lbs |
|---|---|
| Dimensions | 45 × 28 × 24 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 1500 |
| regular_stock | t |
| units_per_sku | 1 |
| upc | 019025020825 |
| brand | BD Diesel |
| part_number | 1064444SM |
