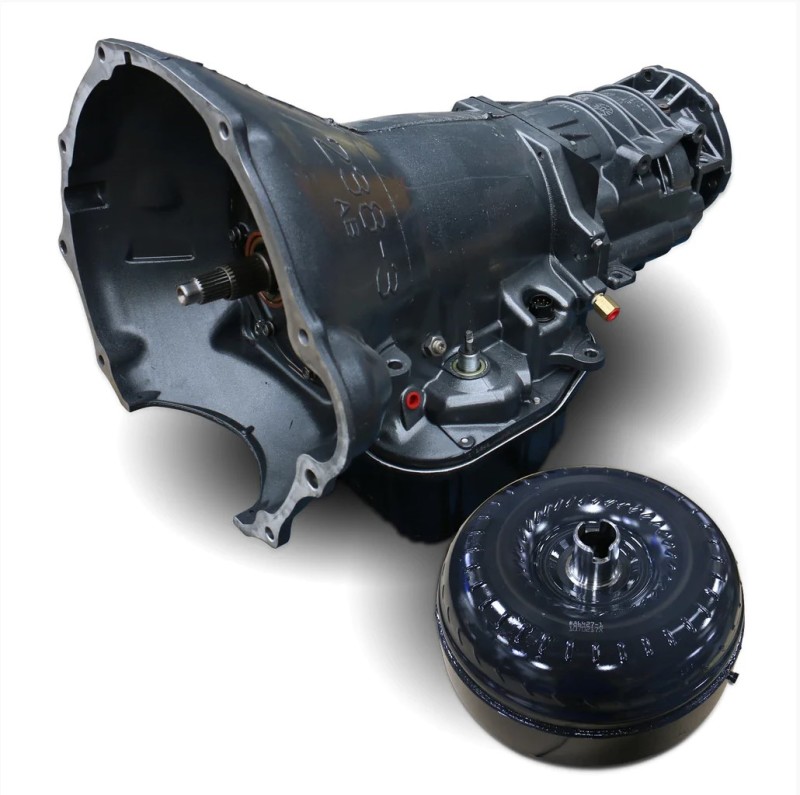

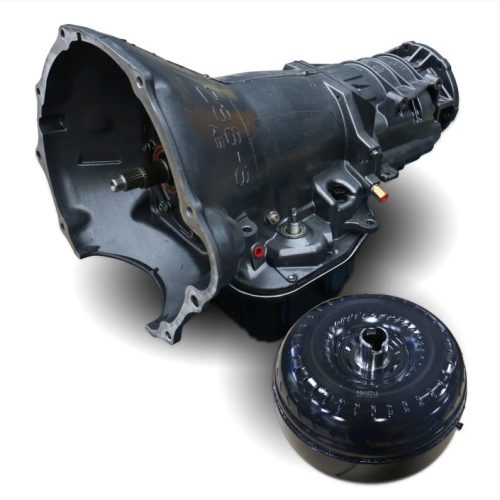

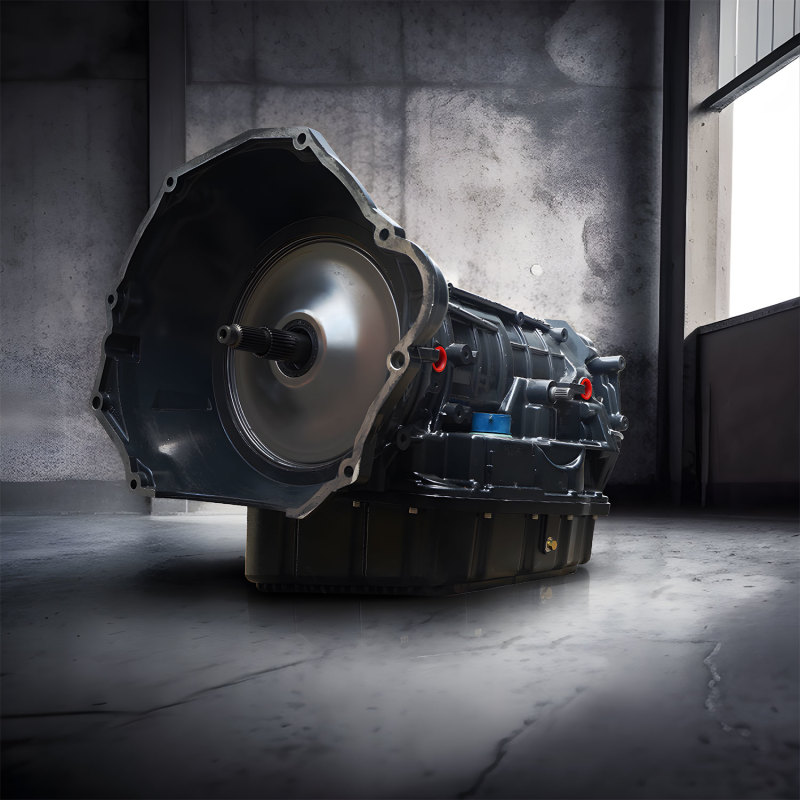

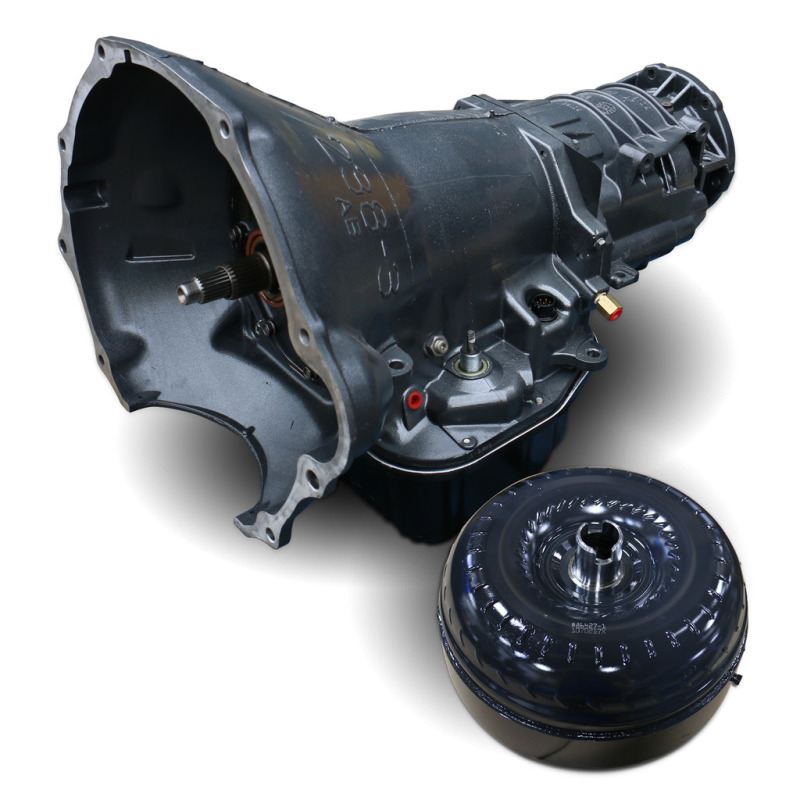

BD Diesel Transmission Kit – 1998.5-1999 Dodge 47RE 4WD – Stage 4 Package – Part # 1064174SS
$6,636.99
Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower. Billet ‘Big’ fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall – Street/Towing applications. Machined pistons, HD springs absorb shock of engagement, Stamp forged 1-piece cover, Eliminates warpage from clutch heat, Taller cover can be rebuilt more often. Trapezoid teeth design, Engineered tighter tolerances. Self-centering teeth design increases contact decreases wear and chatter. Thrust bearings – not plastic thrust washers. Riveting process ensures alignment & eliminates vibration or embrittlement from welding. Cast stator designs maximizes torque. New sprag components ensure long term durability. Furnaced brazed fins reduces internal leakage for improved fluid coupling efficiency. Reduced overall weight by 12lbs compared to competitors. Warranty-> Parts 36 Month/150,000 miles, Labor 12 Month 24000 Miles
Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
- Upgraded governor solenoid – Twice the burst pressure than stock
- Stock thrust bushings replaced with roller Torrington bearings
- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- Up to triple the amount of lock-up clutch material
- Upgraded governor pressure transducer (47RE/48RE)
- Pan heat-dissipating fins keep temperature down
- Modified manual valve for lube in all positions
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Enhanced Stall – Street/Towing applications
- Lower rpm response than the stock converter
- Increase the durability of your drivetrain
- Torque multiplying cast aluminum stators
- Not warranted for Race or Sled Pull use
- Every transmission is tested on a dyno
- Upgraded Governor Pressure Transducer
- Increased line pressure to 190-200psi
- Less heat and better fuel economy
- High temp/energy Raybestos band
- Torque Convertor Enhanced Stall
- Pan adds 2qt extra oil capacity
- Stamp-forged steel front cover
- No Shuttle Shifting Problems
- Stamped Forged 1 Piece Cover
- Upgraded Governor Solenoid
- Clutch Count: OD DIRECT 10
- More Efficient Operation
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- Upgraded 48RE sunshell
- No Race Abuse Covered
- Billet barrel strut
- Magnetic drain plug
- Upgraded Valve body
- Furnace-brazed fins
- Furnace Brazed Fins
- Clutch Count: OD 6
- TORQUE CONVERTOR:
- Billet band lever
- Aluminum HD Pan
- TRANSMISSION:
Out of stock
The BD Diesel transmission kit for 1998.5-1999 Dodge Ram 2500 and 3500 with 47RE 4WD offers a comprehensive upgrade designed for heavy-duty performance and durability. This Stage 4 package features a fully remanufactured transmission with high-performance components, including an upgraded valve body, a high-capacity torque converter, and reinforced internal parts to withstand demanding towing, hauling, and horsepower increases. The kit is engineered with precision-machined pistons, heavy-duty springs, and a stamp-forged steel front cover to optimize engagement and longevity under severe conditions. The enhanced stall converter lowers rpm response for better street and towing performance, while the upgraded governor pressure transducer and increased line pressure of 190-200 psi ensure consistent shift quality and improved fluid flow.
The transmission pan is constructed from billet aluminum, providing an extra 2 quarts of oil capacity and equipped with heat-dissipating fins that help maintain optimal operating temperatures under heavy loads. Additional features include a magnetic drain plug for debris collection, a BD auxiliary full flow filter kit for extra protection, and a cooler line case saver to prevent damage during extreme towing. The internal components, such as the billet band lever, billet band strut, and furnace-brazed fins, are designed to withstand high thermal and mechanical stress, ensuring long-term reliability. Every transmission is thoroughly tested on a dynamometer to verify performance before installation.
This upgrade not only improves torque capacity and shift smoothness but also enhances overall drivetrain durability, making it suitable for demanding fleet and performance applications. The kit also includes an upgraded governor solenoid, drilled intermediate shaft for increased lubrication, and a high-temp Raybestos band for consistent operation. Designed for ease of installation, it requires no race or sled pull use and comes with a 36-month/150,000-mile parts warranty and a 12-month/24,000-mile labor warranty, providing peace of mind for heavy-duty users.
Features:
- Heavy-duty performance with increased torque capacity and durability for fleet and towing applications
- Premium friction materials and reinforced internal components for smooth engagement and long-term reliability
- Enhanced thermal capacity with heat-dissipating fins and upgraded cooling features to prevent clutch slippage under severe loads
- Thoroughly tested on a dynamometer to ensure optimal performance and longevity in demanding conditions
Fitment:
Dodge Ram 2500 Base 1998 to 1999
Dodge Ram 3500 Base 1998 to 1999
| Weight | 329 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 2500 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025020610 |
| brand | BD Diesel |
| part_number | 1064174SS |
