BD Diesel Transmission Kit – 2003-2004 Dodge 47RE 4WD – Part # 1064194F
$7,907.99
All new bushings; new design valve body; stock thrust washers replaced with Roller Torrington bearings saves governor solenoids and reduces friction; Drilled intermediate shaft for increased lube; Modified manual valve for lube in all positions; 47RE transmissions upgraded with more rugged 48RE components; Clutch Count: OD 6; Clutch Count: OD DIRECT 10; New input shafts and hub; Pan adds 1qt extra oil capacity; Up to 80% higher clutch apply pressures over the stock unit; Pressure increase starts at much lower engine rpm’s and at lighter throttle pedal position movement; Light throttle shift firmness is also maintained; No shuttle shifting problems; Upgraded governor pressure transducer (47RE/48RE); Upgraded governor solenoid – Twice the burst pressure than stock; Cooler line case saver in every transmission; Added heavy-duty clutches with up to 25% more material than stock; Machined forward (rear) beveled pressure plate; Machined overdrive brake (front & rear) pressure plate; Machined overdrive brake (front & rear) pressure plate; Machined direct clutch (front) piston; High temp/energy Raybestos band; Billet band strut & anchor; Billet dual ring accumulator piston; BD auxiliary full flow filter kit for extra protection; Clutch Count: FORWARD 5; Fully rollerized geartrain; Clutch Count: DIRECT 6; Increase the durability of your drivetrain; Revised oil circuits; Handles up to 300% more power and torque than the stock transmission; Extra clutches and stronger internals; BD rigid aluminum heavy duty transmission pan; Pan reduces case flex; Pan reduces internal oil leakage; Pan heat-dissipating fins keep temperature down; Pan magnetic drain plug
Transmission Kit; Includes Heavy Duty Pan And Auxiliary Fluid Filter Kit; Stage 4;
- Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock
- Use Of Third Party Or OE Converter Will Invalidate Trans. Warranty
- Stock thrust bushings replaced with roller Torrington bearings

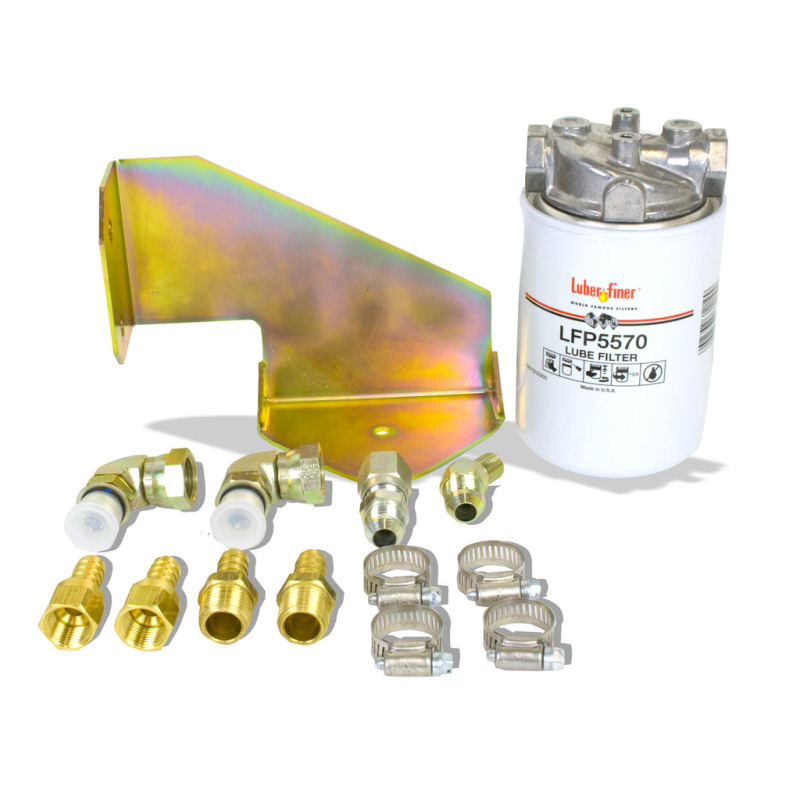

- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- Modified manual valve for lube in all positions
- Pan heat-dissipating fins keep temperature down
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Increase the durability of your drivetrain
- Not Warranted For Race Or Sled Pull Use
- Every transmission is tested on a dyno
- Increased line pressure to 190-200psi
- 36 Month/150000 Mile Limited Warranty
- Each Transmission Is Dyno Tested
- High temp/energy Raybestos band
- Pan adds 2qt extra oil capacity
- No shuttle shifting problems
- Clutch Count: OD DIRECT 10
- Upgraded governor solenoid
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- Has Stronger Internals
- New Design Valve Body
- No Race Abuse Covered
- Upgraded Valve body
- Magnetic drain plug
- Clutch Count: OD 6
- Billet band lever
- Billet band strut
Out of stock

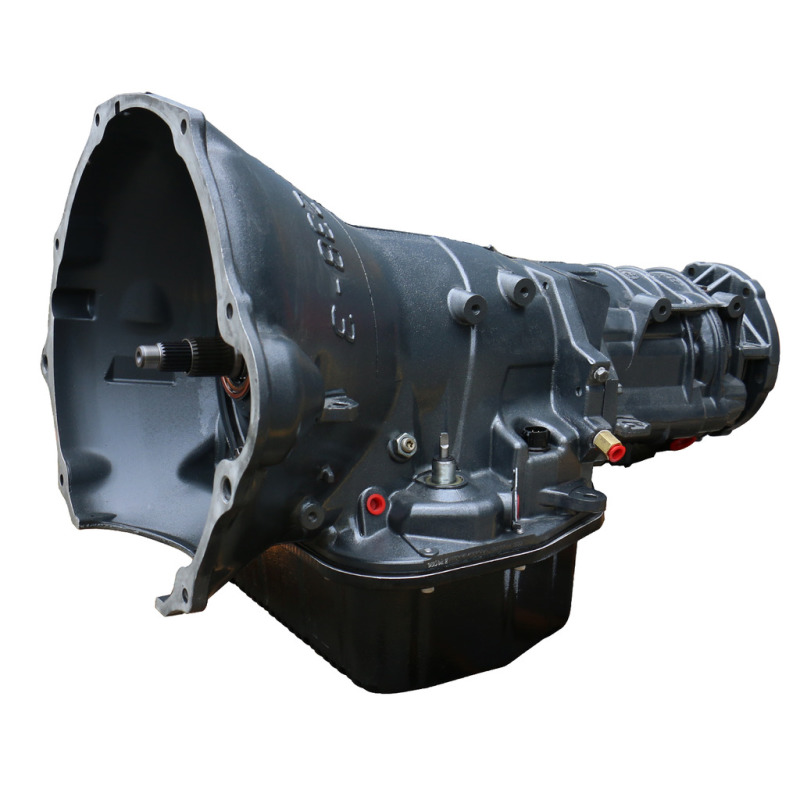

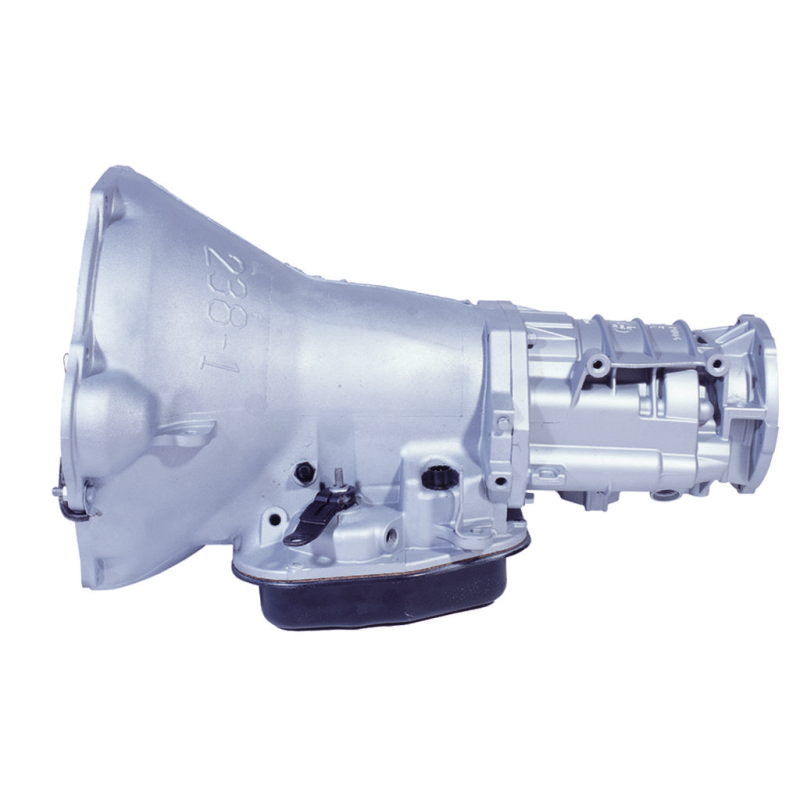

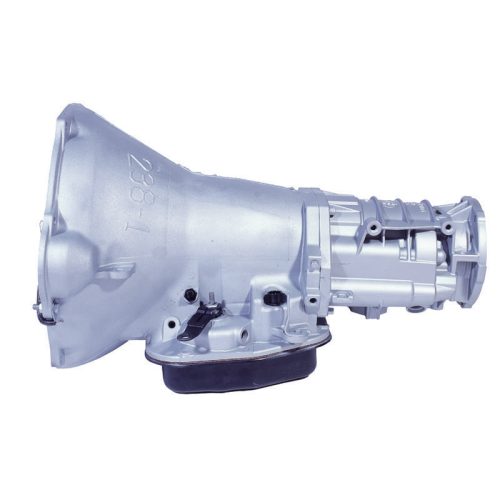

The BD Diesel 1064194F transmission kit is designed for heavy-duty applications on 2003-2004 Dodge Ram 2500 and 3500 models equipped with the 47RE transmission. This comprehensive upgrade package features a fully rollerized geartrain, heavy-duty clutches with up to 25% more material, and a high-performance valve body that enhances shifting precision and durability. The kit also includes a reinforced aluminum transmission pan with heat-dissipating fins, which reduces internal temperatures and decreases case flex, contributing to improved longevity under severe towing and payload conditions. With upgraded components such as a stronger governor pressure transducer, a new design valve body, and a full flow auxiliary filter, this kit ensures your transmission handles up to 300% more torque than stock, making it ideal for towing heavy loads or high-horsepower applications. The inclusion of a magnetic drain plug and a case saver on the cooler line further enhances internal protection, while the pan’s increased oil capacity supports better lubrication and cooling. Each transmission is dyno tested to verify performance, and the 36-month/150,000-mile limited warranty provides added confidence in its long-term reliability.
Features:
- Heavy-duty transmission components capable of handling up to 300% more torque than stock
- Premium friction materials for smooth, consistent engagement and longer service life
- Enhanced thermal capacity with heat-dissipating pan fins to prevent clutch slippage under severe towing conditions
- Robust internals including upgraded governor pressure transducer, full flow filter, and reinforced case components for increased drivetrain reliability
Fitment:
Dodge Ram 2500 Laramie 2003
Dodge Ram 2500 SLT 2003 to 2004
Dodge Ram 2500 ST 2003 to 2004
Dodge Ram 3500 Laramie 2003 to 2004
Dodge Ram 3500 SLT 2003 to 2004
Dodge Ram 3500 ST 2003 to 2004
| Weight | 250 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 1800 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025006935 |
| brand | BD Diesel |
| part_number | 1064194F |
