BD Diesel Transmission Kit – 2004.5-2007 Dodge 48RE 2WD w/TVV Stepper Motor – Part # 1064232F
$7,813.99
All new bushings; New design valve body; Stock thrust washers replaced with roller Torrington bearings saves governor solenoids and reduces friction; Drilled intermediate shaft for increased lube; Modified manual valve for lube in all positions; 47RE transmissions upgraded with more rugged 48RE components; Clutch Count: OD 6; Clutch Count: OD DIRECT 10; New input shafts and hub; Pan adds 1qt extra oil capacity; Up to 80% higher clutch apply pressures over the stock unit; Pressure increase starts at much lower engine rpm’s and at lighter throttle pedal position movement; Light throttle shift firmness is also maintained; No shuttle shifting problems; Upgraded governor pressure transducer (47RE/48RE); Upgraded governor solenoid – Twice the burst pressure than stock; Cooler line case saver in every transmission; Added heavy-duty clutches with up to 25% more material than stock; Machined forward (rear) beveled pressure plate; Machined overdrive brake (front & rear) pressure plate; Machined direct clutch (front) piston; High temp/energy Raybestos band; Billet band strut & anchor; Billet dual ring accumulator piston; BD auxiliary full flow filter kit for extra protection; Clutch Count: FORWARD 5; Fully rollerized geartrain; Clutch Count: DIRECT 6; Increase the durability of your drivetrain; Revised oil circuits; Handles up to 300% more power and torque than the stock transmission; Extra clutches and stronger internals; BD rigid aluminum heavy duty transmission pan; Pan reduces case flex; Pan reduces internal oil leakage; Pan heat-dissipating fins keep temperature down; Pan magnetic drain plug
Transmission Kit; Incl. Transmission Filter Kit; HD Transmission Pan; w/TVV -Thermal Vacuum Valve- Stepper Motor; Stage 4;
- Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock
- Use Of Third Party Or OE Converter Will Invalidate Trans. Warranty
- Stock thrust bushings replaced with roller Torrington bearings

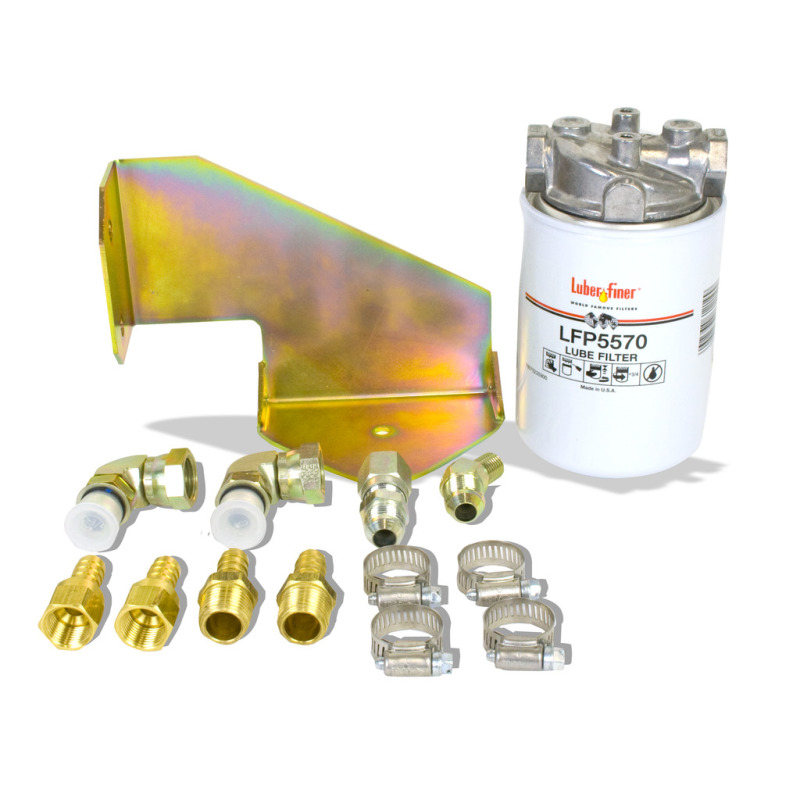

- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- Modified manual valve for lube in all positions
- Pan heat-dissipating fins keep temperature down
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Increase the durability of your drivetrain
- Not Warranted For Race Or Sled Pull Use
- Every transmission is tested on a dyno
- 36 Month/150000 Mile Limited Warranty
- Increased line pressure to 190-200psi
- Revised Oil Circuits/Extra Clutches
- Pan Adds 1 Qt. Extra Oil Capacity
- High temp/energy Raybestos band
- Pan adds 2qt extra oil capacity
- No shuttle shifting problems
- Clutch Count: OD DIRECT 10
- Upgraded governor solenoid
- Clutch Count: FORWARD 5
- Has Stronger Internals
- Clutch Count: DIRECT 6
- New Design Valve Body
- No Race Abuse Covered
- Upgraded Valve body
- Magnetic drain plug
- Clutch Count: OD 6
- Billet band lever
- Billet band strut
Out of stock

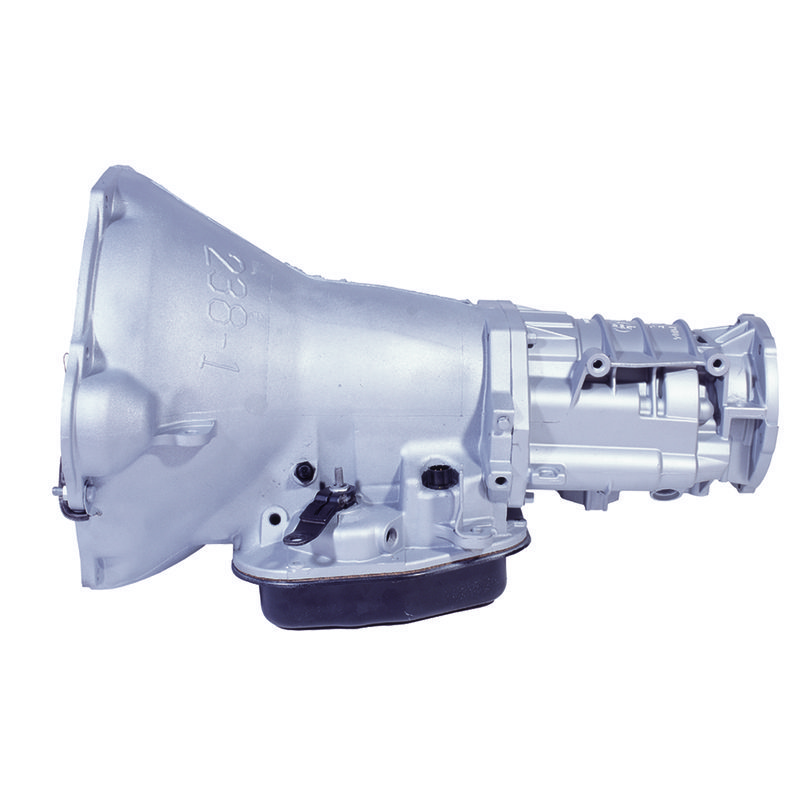

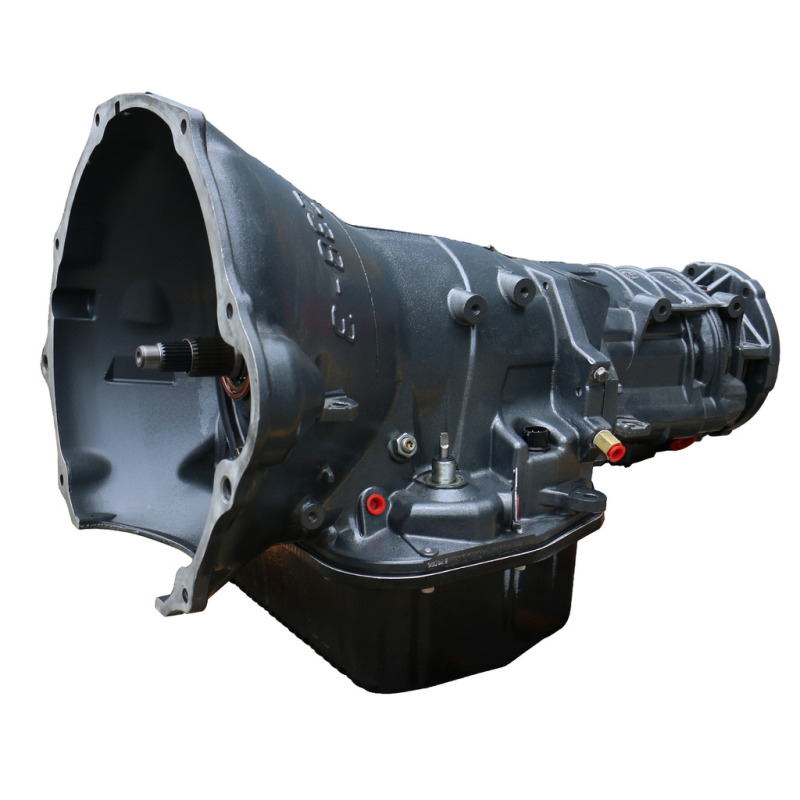

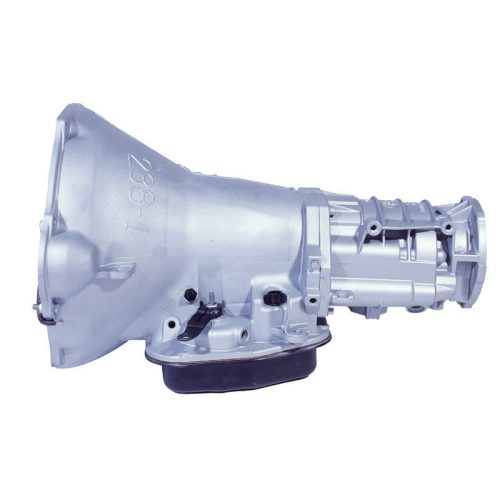

The BD Diesel 1064232F transmission kit is a comprehensive upgrade designed for 2004.5 to 2007 Dodge Ram 2500 and 3500 trucks equipped with the 48RE transmission. This heavy-duty modification enhances the durability, power handling, and reliability of your drivetrain, making it suitable for demanding towing and fleet applications. Featuring a redesigned valve body, upgraded internal components, and heavy-duty clutches, this kit ensures your transmission can handle up to 300% more torque than stock. The inclusion of a BD auxiliary full flow filter kit provides additional protection against debris, while the machined pressure plates and billet components improve engagement and longevity.
All components are tested on a dynamometer for quality assurance, and the kit includes a heavy-duty aluminum pan with heat-dissipating fins to maintain optimal operating temperatures, along with an extra quart of oil capacity for reduced internal wear. The upgraded governor pressure transducer and solenoid deliver increased burst pressure and line pressure, ensuring consistent performance across a wide range of operating conditions. The drilled intermediate shaft, modified manual valve, and revised oil circuits work together to improve lubrication and reduce internal friction, contributing to a smoother shift and enhanced shift firmness at lighter throttle inputs.
Designed for severe-duty applications, this transmission upgrade handles higher power outputs and offers an extended lifespan for your drivetrain. It is ideal for towing, high-performance applications, or fleet operation, providing peace of mind and long-term reliability. Please note that use of third-party or OEM converters may void the warranty, and this product is not intended for race or sled pull use. Each transmission is thoroughly tested and backed by a 36-month or 150,000-mile limited warranty, ensuring quality and performance you can trust from BD Diesel.
Features:
- Heavy-duty internal components and clutches for increased torque capacity and durability
- Premium friction materials ensure smooth and reliable engagement
- Enhanced thermal capacity with heat-dissipating pans to prevent clutch slippage under severe towing
- Revised oil circuits and extra clutches improve overall drivetrain longevity and performance
Fitment:
Dodge Ram 2500 Laramie 2005 to 2007
Dodge Ram 2500 SLT 2005 to 2007
Dodge Ram 2500 Sport 2006 to 2007
Dodge Ram 2500 ST 2005 to 2007
Dodge Ram 2500 TRX4 2006 to 2007
Dodge Ram 3500 Laramie 2005 to 2007
Dodge Ram 3500 SLT 2005 to 2007
Dodge Ram 3500 Sport 2006 to 2007
Dodge Ram 3500 ST 2005 to 2007
| Weight | 260 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 1800 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025004870 |
| brand | BD Diesel |
| part_number | 1064232F |
