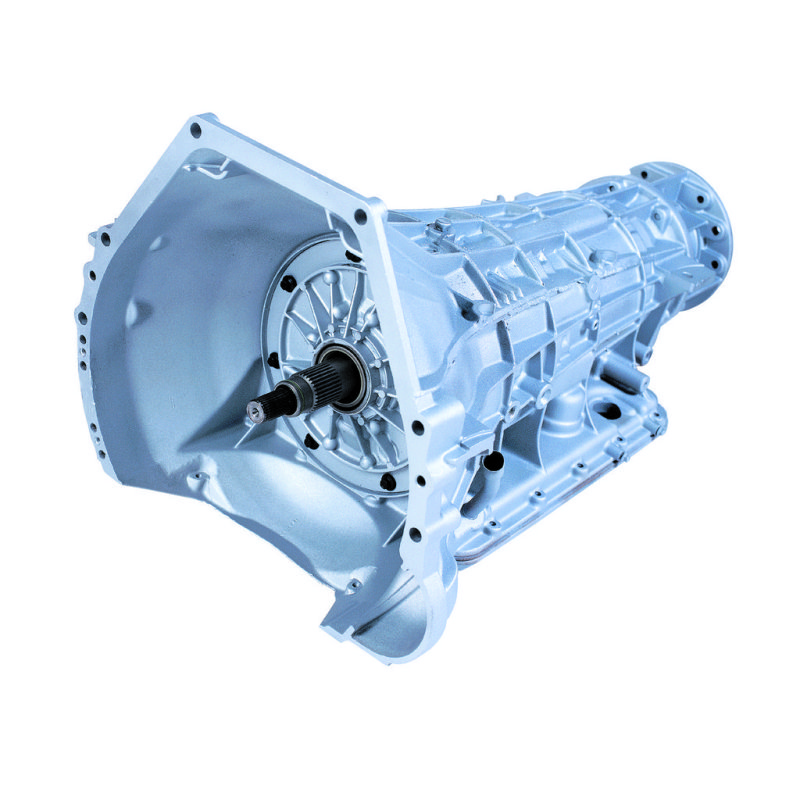

BD Diesel Transmission Kit – Part # 1064422F for 1995-1997 Ford E4OD 2WD
$7,206.99
BD Diesel Performance is unique among its peers in that it designs, manufactures and distributes a wide range of products specifically engineered for performance diesel applications. Located in Abbotsford, British Columbia, Canada, BD’s state-of-the-art facility covers 65,000 square feet, and employs 60 plus highly-trained individuals. The BD name became recognized in 1989, when the company introduced the first exhaust brake for the burgeoning diesel pick-up truck market. BD’s roots, however, actually date back to 1972, when Valley Fuel Injection, Ltd. first opened its doors. Today, Valley Fuel Injection and BD Diesel Performance are one, with eight specialty divisions that focus on diesel power train components: Fuel Injection Calibration Department, Exhaust Brake Manufacturing, Electronic Circuit Design and Assembly, Transmission and Torque Converter Design and Remanufacturing, Turbocharger Design, Installation and Research and Development. BD’s comprehensive approach to the diesel performance aftermarket ensures not only quality products, but educated dealers and satisfied customers. Thank you for your interest in BD Diesel Performance!
Transmission Kit; Incl. HD Transmission Pan And Fluid Filter Kit; Stage 4;
- Drilled and tapped direct and intermediate feeds to prevent leaks at case
- Handles up to 300% more power and torque than the stock transmission
- Improved internal lubrication by adding high power boost valves

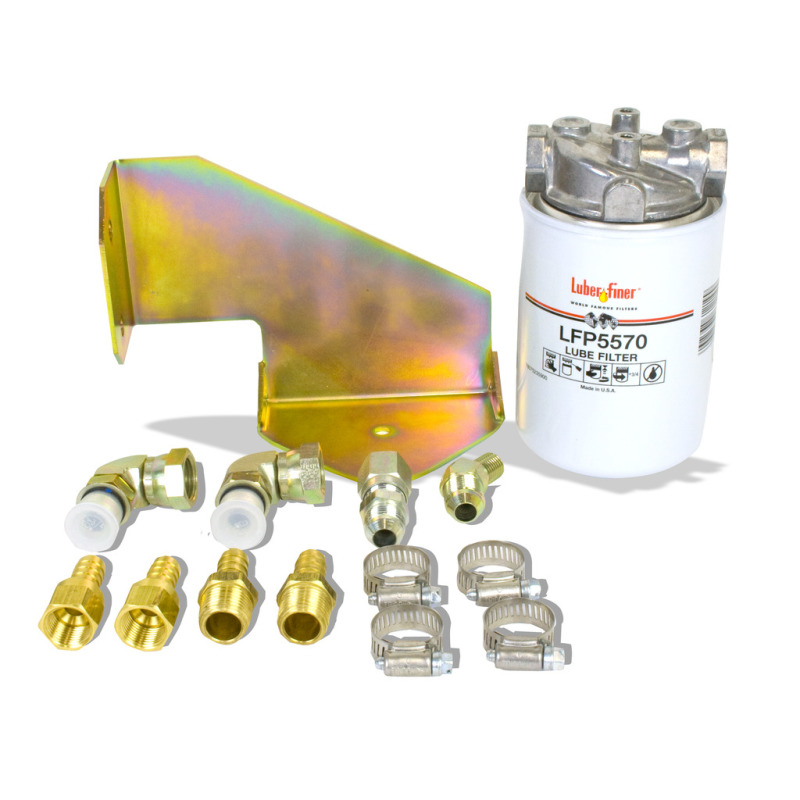

- 1990-2003 include auxiliary frame mounted full flow filter kit
- Solenoids hard wiring providing high temperature resistance
- Full shift kit with line mod valve to increase pressures
- Added lube and support to output and intermediate shafts
- 30%-40% more clutch material with additional steels
- Tighter clutch packs that provide a quicker shift
- Pan heat-dissipating fins keep temperature down
- BD rigid aluminum heavy duty transmission pan
- Replaced all aluminum planetaries with steel
- Created lube circuit for towing in overdrive
- Increase the durability of your drivetrain
- Not warranted for Race or Sled Pull use
- Extra clutches and stronger internals
- Revised Oil Circuits/Extra Clutches
- Machined low/reverse pressure plate
- Creates positive clutch application
- Accumulator body enhanced oil flow
- Added lube circuits to OD planet
- Each transmission is dyno tested
- Pan reduces internal oil leakage
- Increased pressure to converter
- Pan adds 6qt extra oil capacity
- Re-programmed accumulator body
- Machined intermediate piston
- Clutch Count: COAST CLUTCH 2
- Clutch Count: INTERMEDIATE 4
- Machined rear ring gear hub
- Clutch Count: LOW REVERSE 7
- Fully rollerized geartrain
- Increased cooler pressure
- Clutch Count: OVERDRIVE 4
- Improved bearing designs
- Pan magnetic drain plug
- Machined center support
- Clutch Count: FORWARD 5
- Has Stronger Internals
- Clutch Count: DIRECT 5
- No Race Abuse Covered
- Pan reduces case flex
- Revised oil circuits
- Reworked front pump
- Sure-loc snap rings
- Upgrade supports
- Upgraded sprags
Out of stock
The BD Diesel Performance Transmission Kit, part number 1064422F, is engineered to enhance durability and performance for 1995-1997 Ford F-250 and F-350 trucks equipped with the E4OD transmission. Designed for heavy-duty fleet use, this Stage 4 upgrade includes a robust heavy-duty transmission pan and fluid filter kit, providing increased oil capacity and improved heat dissipation. The kit features drilled and tapped direct and intermediate feeds to prevent leaks, ensuring reliable operation under severe towing and high-torque conditions. Its internal modifications, such as additional clutch material, stronger internals, and a reworked front pump, allow handling up to 300% more power than stock while maintaining smooth, rapid shifts. The inclusion of upgraded support components like machined pressure plates, enhanced oil flow, and a fully rollerized geartrain contribute to long-term drivetrain reliability. The BD Diesel transmission pan is constructed from durable aluminum with heat-dissipating fins and a magnetic drain plug, designed to reduce internal oil leakage and case flex, which improves overall transmission lifespan. Each assembly is dyno tested to meet rigorous quality standards before shipping, ensuring consistent performance. Suitable for fleet and heavy-duty applications, this kit is an essential upgrade for those seeking increased power capacity, improved shift quality, and enhanced reliability in demanding diesel truck operations.
Features:
- Heavy-duty torque capacity handling up to 300% more power than stock
- Premium friction materials for smooth and reliable engagement
- Enhanced thermal capacity to prevent clutch slippage during severe towing
- Long-term drivetrain reliability with stronger internals and improved oil circulation
Fitment:
Ford F-250 Eddie Bauer 1995 to 1996
Ford F-250 Special 1995 to 1996
Ford F-250 XL 1995 to 1996
Ford F-250 XLT 1995 to 1996
Ford F-250 HD XL 1997
Ford F-250 HD XLT 1997
Ford F-350 Base 1997
Ford F-350 Eddie Bauer 1995
Ford F-350 Special 1995 to 1996
Ford F-350 XL 1995 to 1997
Ford F-350 XLT 1995 to 1997
| Weight | 260 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 1500 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025004917 |
| brand | BD Diesel |
| part_number | 1064422F |
