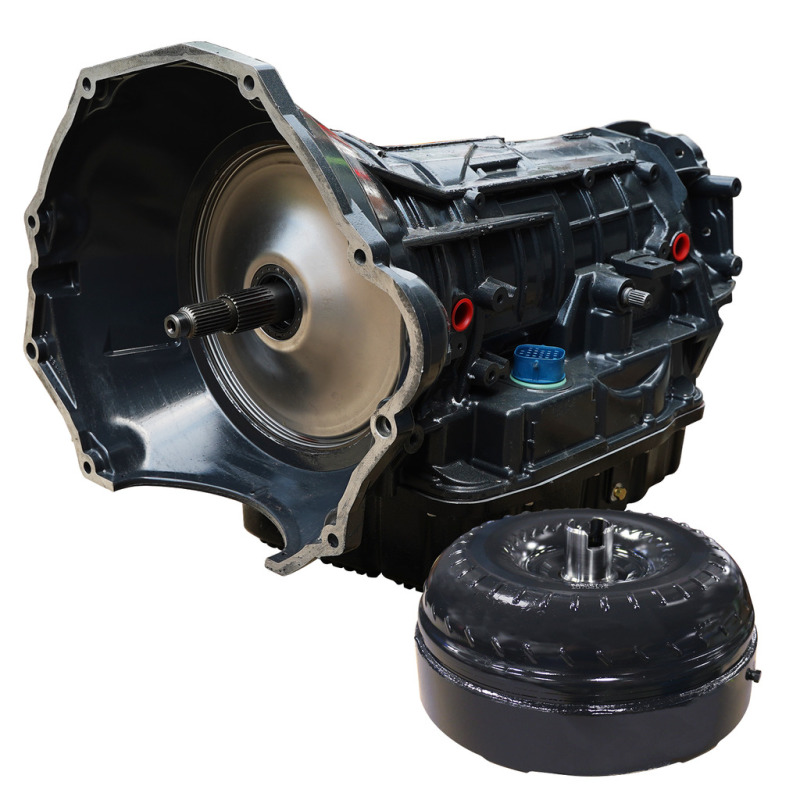

BD Diesel Transmission Kit – 2019-2022 Dodge 68RFE Stage 4 with ProForce Converter Part # 1064294SS
$12,005.99
When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD’s own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel’s power and torque demands, the clear choice is BD.
Transmission Kit; 68RFE Transmission; Stage 4; Incl. ProForce Converter Package;
- BD durable QT100 pressure plates allow for increased clutch counts and reduce deflection and distortion within the clutch drum
- Special tuning required for 2019-up applications for increased line pressure. Line pressure controller not included.
- Custom bonded gasket valve body separator plate increases line pressure while stopping internal cross leaks
- BD Deep sump oil pan adds extra fluid and cooling capacity while reducing case flex
- Steel girdle added to 2C piston to allow for more clutches and broader apply area
- Billet forged front cover with thicker walls and stronger mounting pads
- Hard anodized valve body and new solenoid pack installed in every unit
- Furnaced brazed turbine fins for improved fluid coupling efficiency
- Heavy Duty Cam And Roller Design Low Reverse One Way Clutch
- BD Durable QT100 Pressure Plates For Increase Clutch Counts
- Over Drive clutches 33% increase & 2C clutches 33% increase
- Heavy duty cam & roller design low reverse one way clutch
- Valve Body And Solenoid Installed In Every Unit
- Ideal replacement for stock torque converter
- Lower rpm response than the stock converter
- Great for street and towing applications
- High performance Enhanced stall stator
- Custom Big Stack Overdrive Shaft
- Custom Bonded Gasket Valve Body
- Steel Girdle Added To 2C Piston
- BD Reinforced Accumulator Plate
- New 4C Billet Spring Retainer
- Good for 550 flywheel HP
- Damper springs replaced
- 11.625 inch dual-clutch
- No Race Abuse Covered

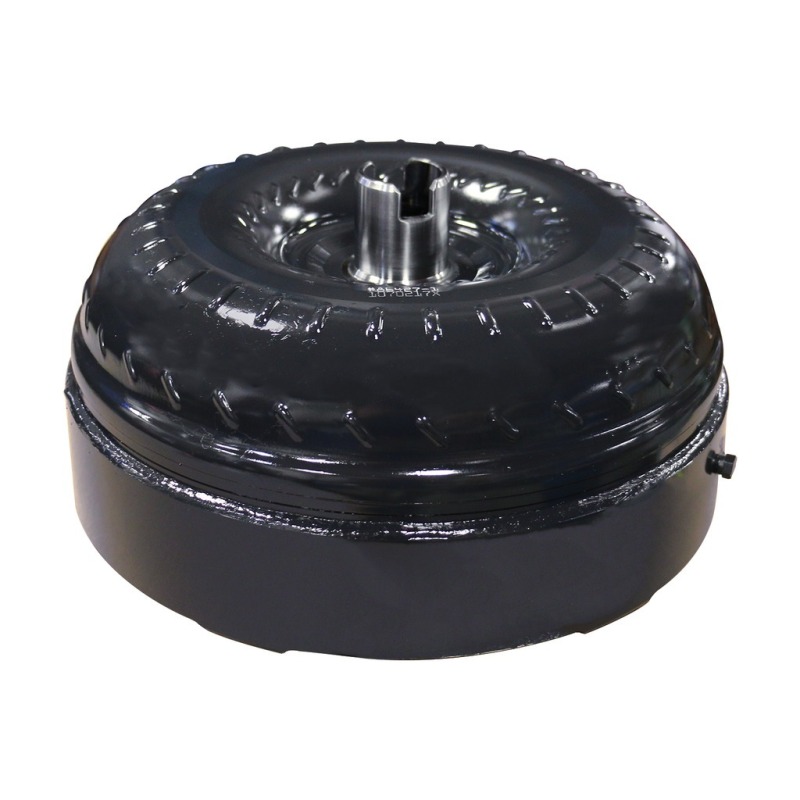

- PROFORCE CONVERTER:

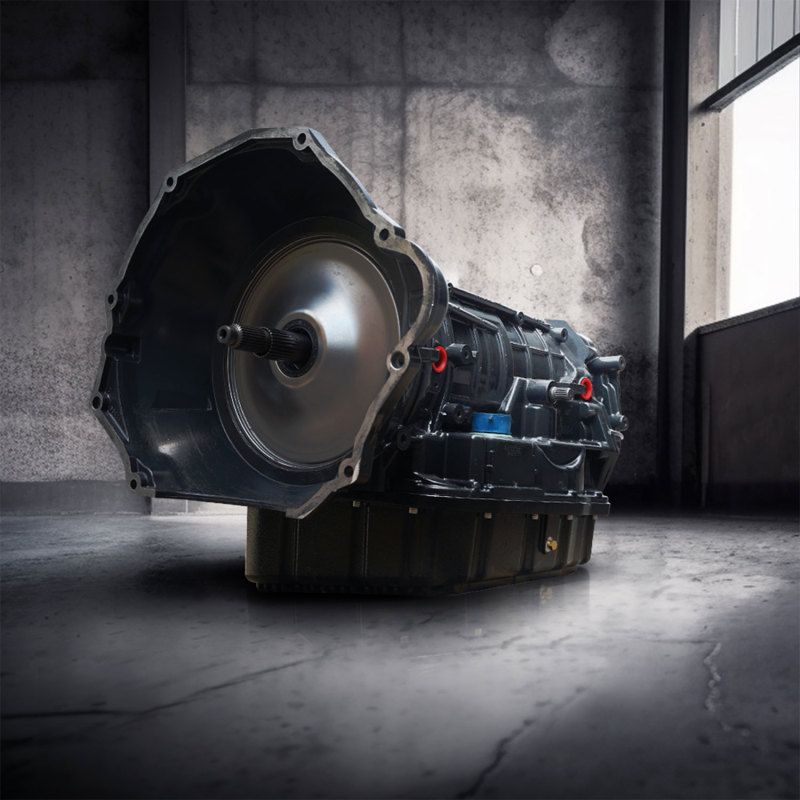

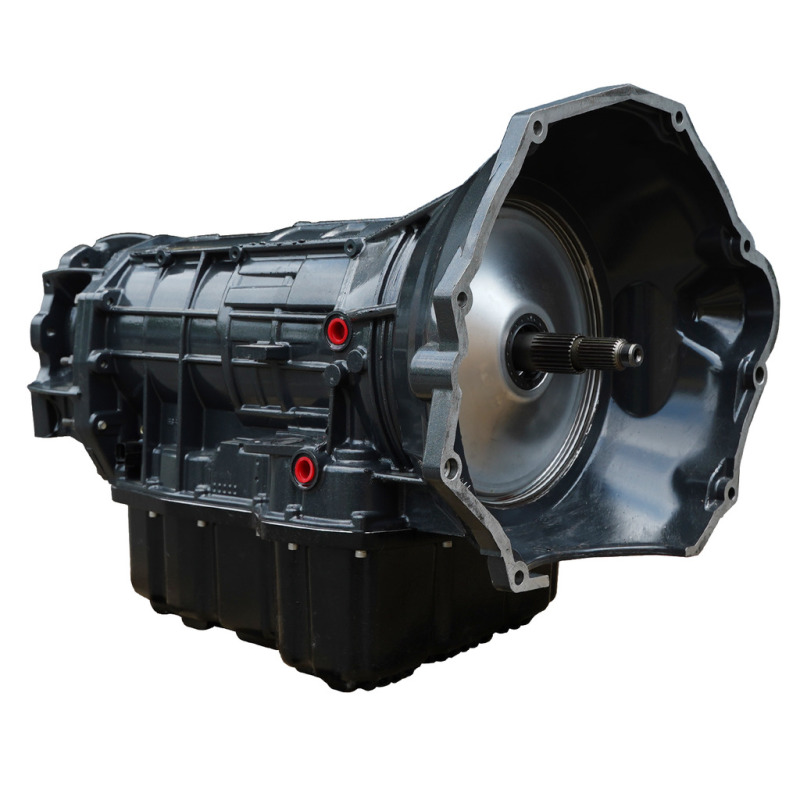

- TRANSMISSION:
Out of stock
The BD Diesel 1064294SS transmission kit is designed for heavy-duty applications, offering a reliable upgrade for your Dodge 2019-2022 Ram 2500 and 3500 equipped with the 68RFE transmission. This Stage 4 package includes a custom ProForce converter, engineered to provide improved torque capacity and enhanced stall performance, making it ideal for towing, street driving, or track use. Every component has been dyno tested to ensure seamless compatibility and maximum performance, delivering increased durability under demanding conditions. The kit features a heavy-duty BD aluminum pan with increased fluid capacity for better cooling and case rigidity, helping to extend the lifespan of your transmission during extended towing or high-power operation. The transmission’s internal components are reinforced with BD’s own high-performance pressure plates, billet front cover, and steel girdles, all designed to withstand higher torque loads and reduce deflection. The inclusion of advanced valve body components such as a bonded gasket separator plate and a furnace-brazed turbine fin set enhances fluid coupling efficiency and internal sealing, ensuring smooth shifts and reliable operation. Critical upgrades like the overdrive clutches, 2C clutches, and a reinforced accumulator plate provide additional clutch counts and apply area, further supporting increased power handling. The transmission is assembled with new solenoid packs, high-strength billet retainers, and damper springs, ensuring long-term reliability for demanding fleet or high-performance scenarios. Compatible with vehicles requiring a robust upgrade to handle up to 550 flywheel horsepower, this kit is a comprehensive solution for drivers seeking durability and performance in heavy-duty diesel applications. Proper installation and adherence to recommended break-in procedures, including replacing related components like the pilot and throwout bearings, are essential for optimal operation and longevity of this high-performance transmission upgrade.
Features:
- Heavy-duty torque capacity suitable for demanding diesel applications and towing
- Premium friction materials ensure smooth engagement and long-lasting performance
- Enhanced thermal capacity prevents clutch slippage under severe duty loads
- Designed for long-term drivetrain reliability and consistent power delivery
Fitment:
Ram 2500 Big Horn 2019 to 2024
Ram 2500 Laramie 2019 to 2024
Ram 2500 Laramie Longhorn 2019 to 2022
Ram 2500 Limited 2019 to 2024
Ram 2500 Limited Longhorn 2021 to 2024
Ram 2500 Lone Star 2019 to 2024
Ram 2500 Rebel 2023 to 2024
Ram 2500 Special Service 2024
Ram 2500 Tradesman 2019 to 2024
Ram 3500 Big Horn 2019 to 2024
Ram 3500 Laramie 2019 to 2024
Ram 3500 Laramie Longhorn 2019 to 2020
Ram 3500 Limited 2019 to 2024
Ram 3500 Limited Longhorn 2021 to 2024
Ram 3500 Lone Star 2019 to 2022
Ram 3500 SLT 2019 to 2024
Ram 3500 Special Service 2024
Ram 3500 Tradesman 2019 to 2024
| Weight | 329 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 2500 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025024144 |
| brand | BD Diesel |
| part_number | 1064294SS |
