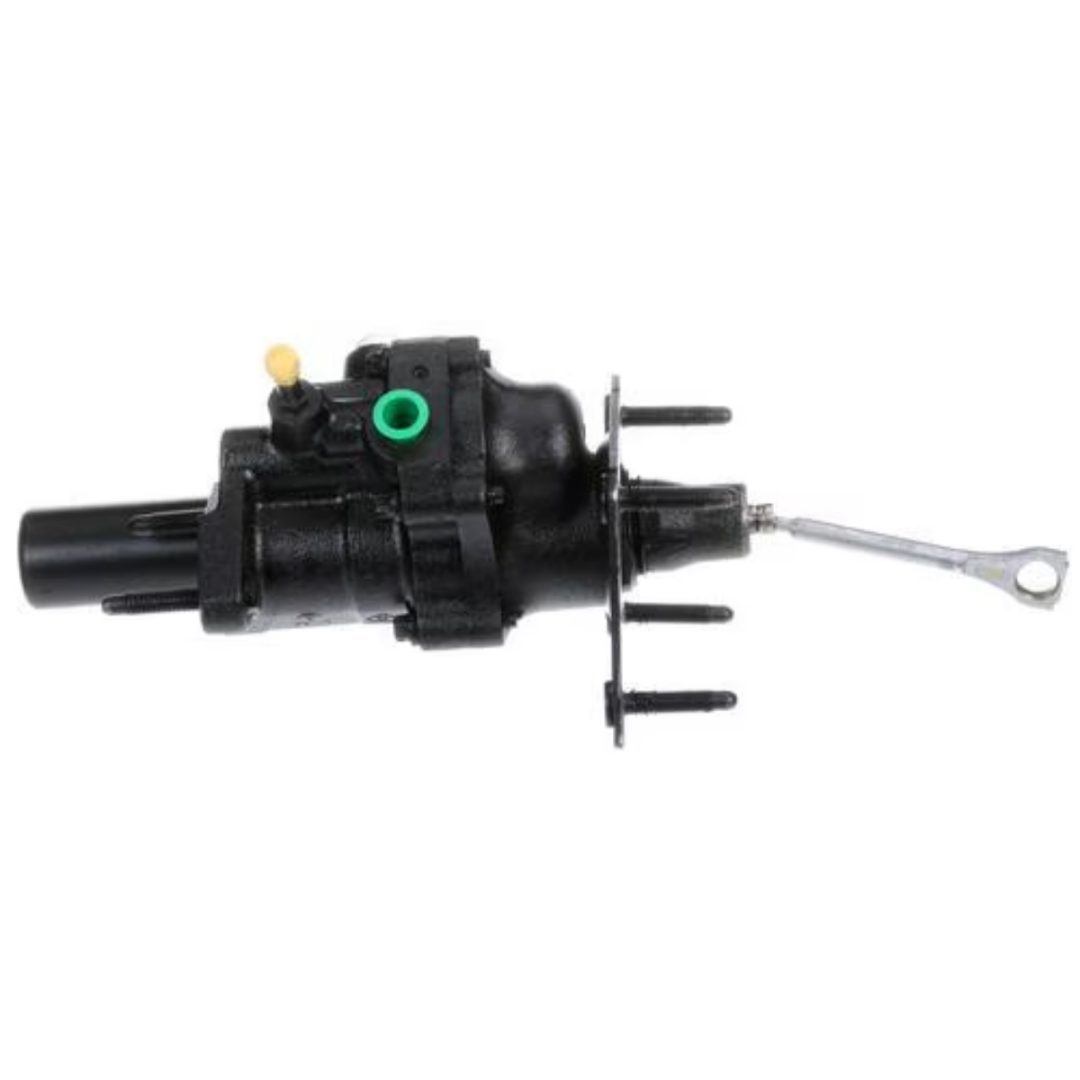

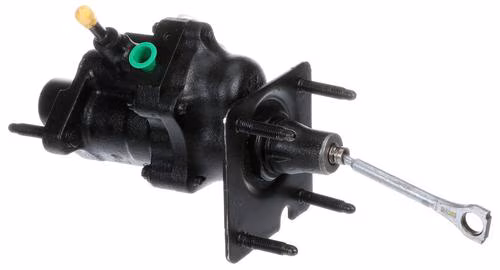

Main shot of Bexar Pro Hydroboost BP7404 hydraulic brake booster for Chevy Express 1500 and GMC Savana 1500.

Close-up view of hydraulic port connections and 10 x 1.25mm stud threads on Bexar Pro BP7404.

Top-down view of Bexar Pro BP7404 hydroboost unit showing hydraulic ports and anti-corrosion coating.

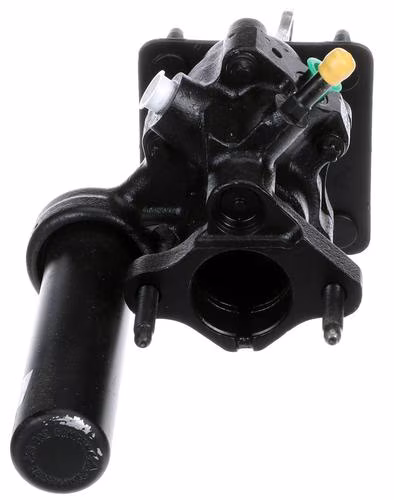

Bottom view of Bexar Pro BP7404 brake booster showing cast iron base mounting plate.

Bexar Pro Hydroboost Hydraulic Power Brake Booster for Chevy Express 1500 & GMC Savana 1500 (BP7404)

Fitment Lookup:

Category: Hydromax Brake Boosters BPC Brand: Bexar Pro Components

Description

SKU: BP7404

Bexar Pro Hydroboost | GM Full-Size Van Application

Full-Size Van Grade
In Store & Fast Shipping

CRITICAL: Verify Specifications

Please confirm your firewall mounting bracket, 2.16-inch housing diameter, and 10 x 1.25mm stud thread dimensions prior to installation. Full-size commercial and passenger vans rely on dedicated hydraulic assist pressure to ensure reliable stopping power under heavy cargo and passenger loads.

“Engineered to deliver immediate hydraulic assist pressure and firm pedal response for late-2000s Chevrolet Express and GMC Savana full-size vans.”

Restore maximum stopping confidence and eliminate spongy pedal feel with the Bexar Pro Hydroboost (BP7404). Tailored specifically for 2008–2011 Chevrolet Express 1500 and 2008–2011 GMC Savana 1500 full-size vans, this heavy-duty hydraulic power brake booster harnesses power steering system pressure for high-output braking assist. Built to correct original factory design weaknesses, every unit is equipped with 100% new O.E. quality seals, diaphragms, and check valves.

Fitment Guide

MAKE	MODEL	START YEAR	END YEAR
CHEVROLET	EXPRESS 1500	2008	2011
GMC	SAVANA 1500	2008	2011

Specification	Detail
Housing Diameter	2.16 inches
Booster Type	Hydraulic (Power Steering Assist)
Stud Thread Size	10 x 1.25mm
Housing Material	Cast Iron
Internal Components	100% New Seals, Diaphragms & Check Valves
Mounting Bracket Included	Yes
Master Cylinder Included	No
Pedal Rod Extension Included	No

🛠️ Expert Installation & Field Note

From our shop experience specializing in heavy-duty commercial hydraulic braking systems since 1985:

Power Steering Fluid Purge: GM full-size van engine doghouses retain significant heat. Always perform a total power steering fluid flush before installation to clear trapped debris that can stick internal spool valves or damage shaft seals.
Pedal Linkage Alignment: Inspect the pedal pushrod attachment at the firewall mounting bracket during reassembly to ensure straight actuation without side binding, which prevents premature seal wear.
Anti-Corrosion Finish: Our proprietary black protective coating shields raw cast iron against road salt, moisture, and fleet chemical washdown.

Installation & Troubleshooting Guide →

Availability & Logistics

In-stock item available for immediate counter pickup, local delivery, or direct regional shipping.

Core Deposit Terms

The listing price includes the core configuration ($44.00 core deposit value). Send your original rebuildable core back within 90 days for a full refund back to your original payment method.
