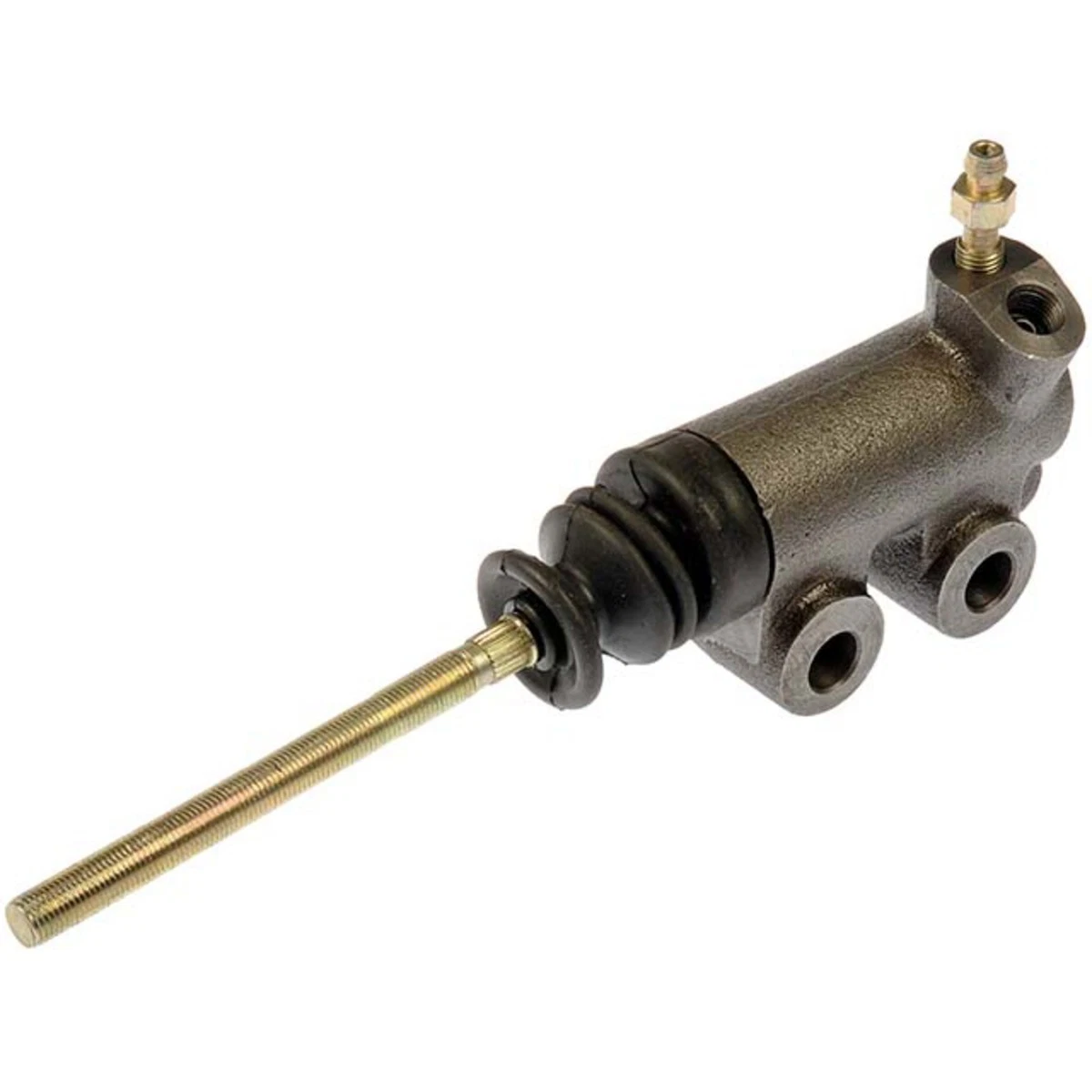

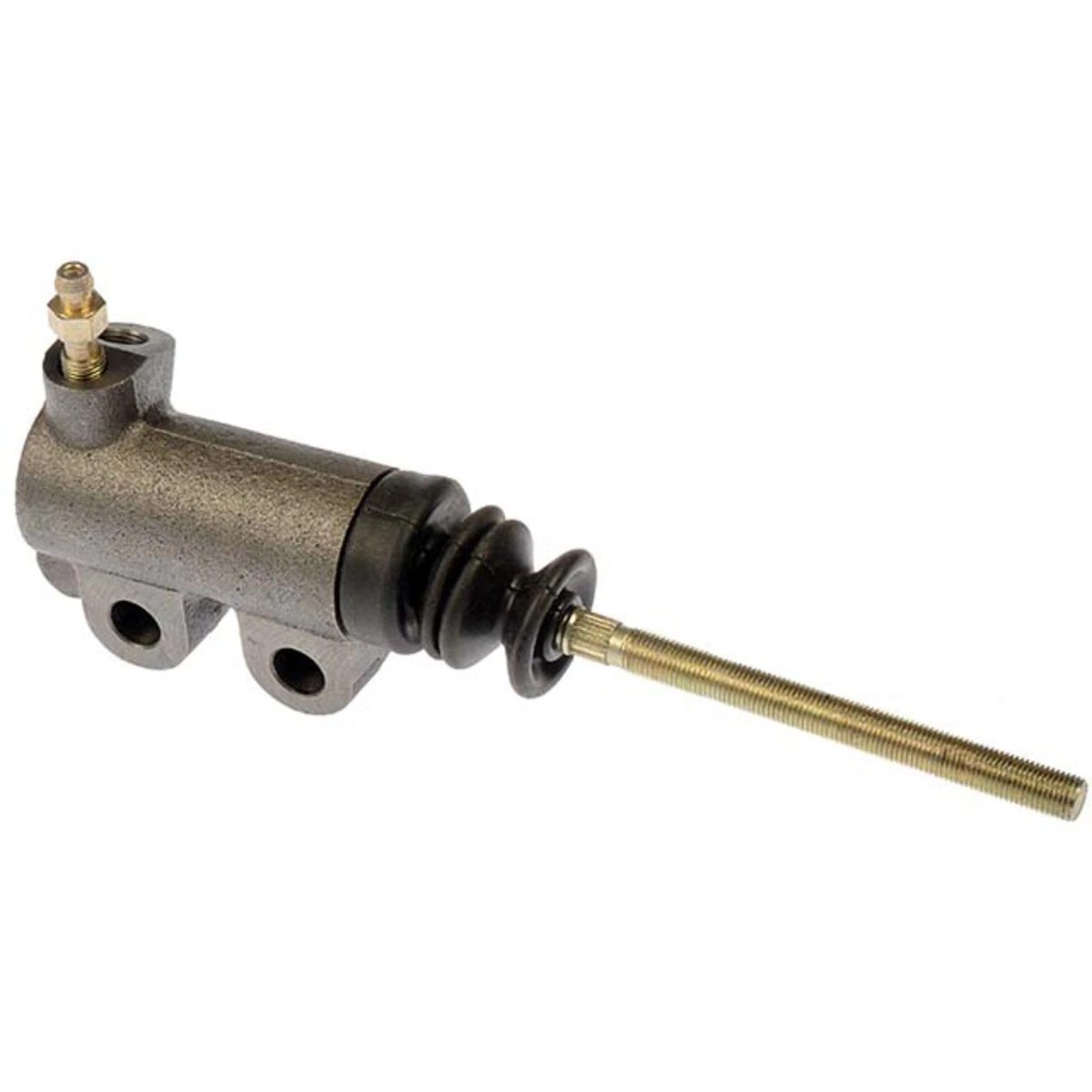

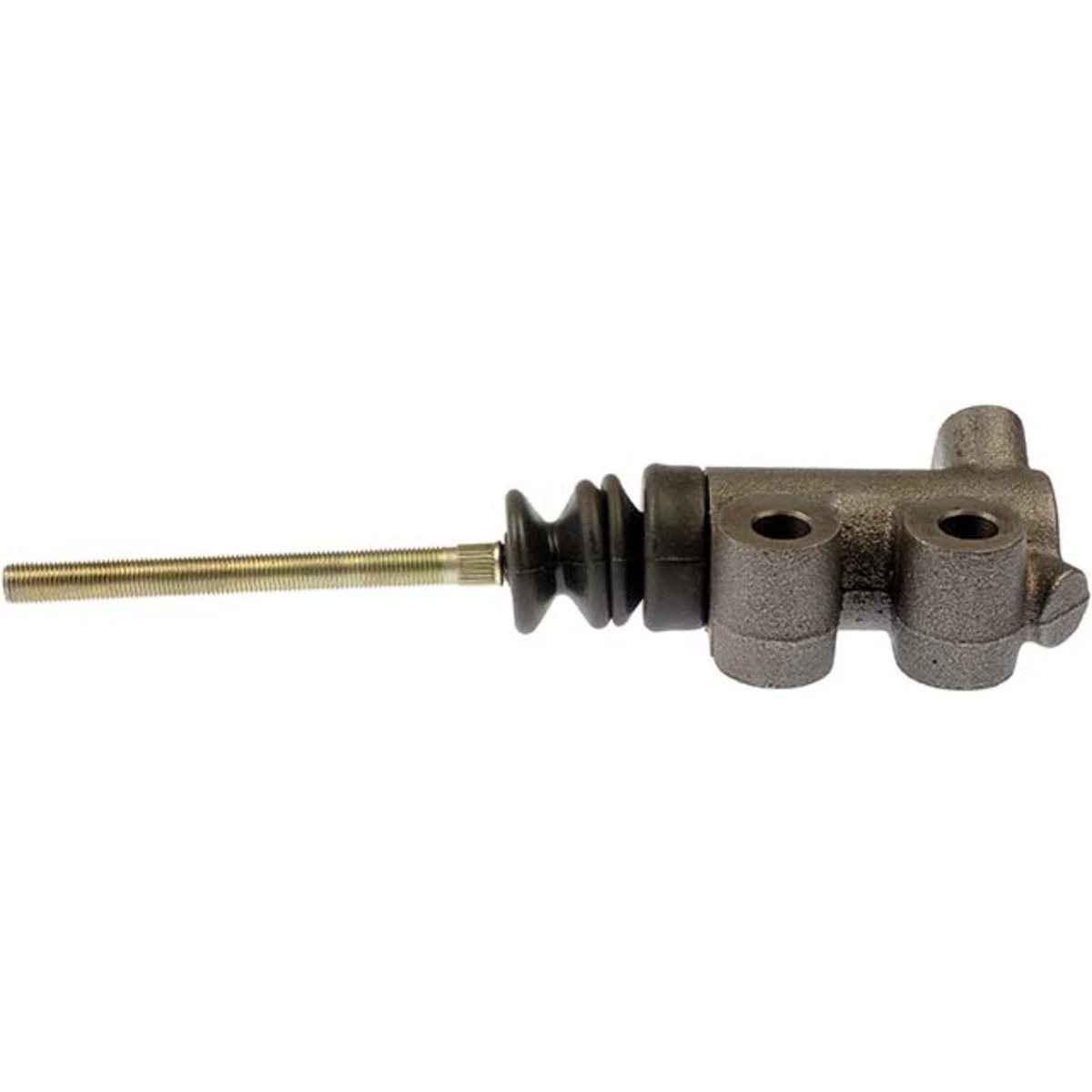

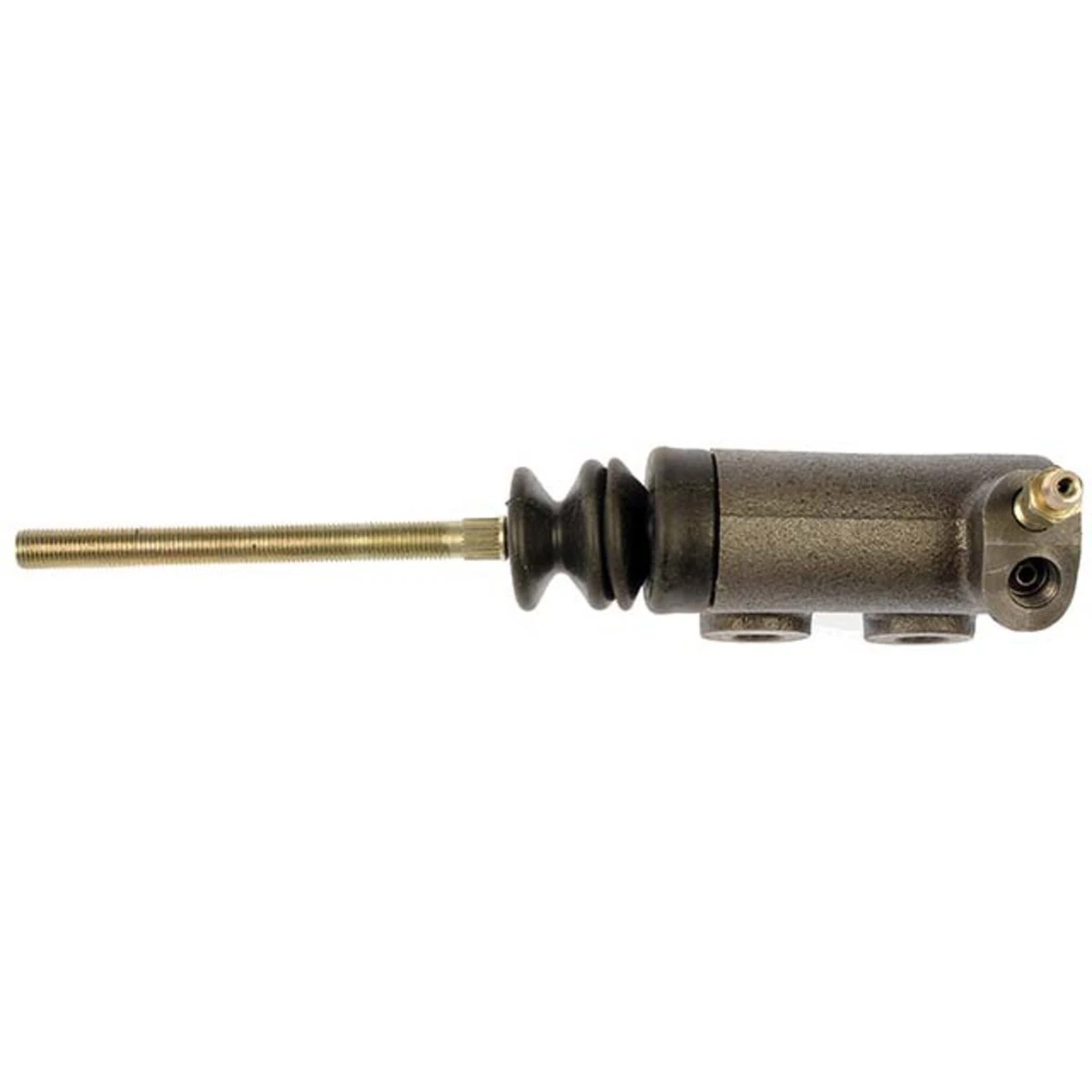

36117-C FE36117 FD36117 29481-C CS36164 Clutch Slave Cylinder 1-inch bore size
Bexar Pro Components: Heavy-Duty Reliability for Fleet & Industry.
Key Specifications & Expert Features
- Bore Diameter: 1-inch bore size (Critical for optimal hydraulic displacement)
- Inlet Port: 7/16-24 INV (Standard inverted flare connection)
- Components: Includes 6-inch pushrod (Verified length from cylinder face)
- Application: Ford C600, C700, C800, C7000, C8000 (1980-1989) and industrial drivetrains.
- Repair Kit: N/A (Full unit replacement recommended to ensure system integrity)
Verified Casting & Part Numbers
To ensure correct fitment, matching your existing casting number is the most reliable method. This unit replaces:
- 36117-C
- FE36117
- FD36117
- 29481-C
- 689
- CS36164
- SC37899
Expert Installation & Field Note
Based on our shop experience specializing in heavy-duty brakes since 1985: When installing this unit on Ford C-Series trucks, ensure the 6-inch pushrod is perfectly aligned with the release fork. Improper pushrod alignment can cause side-loading on the internal piston, leading to premature seal failure. Always gravity bleed the 1-inch bore size chamber before finishing with a pressure bleed to ensure a firm pedal. If your system shows signs of contaminated fluid, flush the lines completely to protect the new internal seals.
⚠ CRITICAL: Verify Specifications
To ensure safety and proper clutch travel, verify that this slave cylinder’s 1-inch bore size and 6-inch rod length match your current configuration. This component is designed for hydraulic clutch systems only.
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 3 in |
