BD Diesel Transmission Kit – 1064174BF for Dodge 24-Valve 47RE 4WD with Billet Input Shaft and Auxiliary Filter
$8,923.99
All new bushings; New design valve body; Stock thrust washers replaced with roller Torrington bearings saves governor solenoids and reduces friction; Drilled intermediate shaft for increased lube; Modified manual valve for lube in all positions; 47RE transmissions upgraded with more rugged 48RE components; Performance Transmission but with the added touch of a Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower; Clutch Count: OD 6; Clutch Count: OD DIRECT 10; New input shafts and hub; Pan adds 1qt extra oil capacity; Up to 80% higher clutch apply pressures over the stock unit; Pressure increase starts at much lower engine rpm’s and at lighter throttle pedal position movement; Light throttle shift firmness is also maintained; No shuttle shifting problems; Upgraded governor pressure transducer (47RE/48RE); Upgraded governor solenoid – Twice the burst pressure than stock; Cooler line case saver in every transmission; Added heavy-duty clutches with up to 25% more material than stock; Machined forward (rear) beveled pressure plate; Machined overdrive brake (front & rear) pressure plate; Machined direct clutch (front) piston; High temp/energy Raybestos band; Billet band strut & anchor; Billet dual ring accumulator piston; BD auxiliary full flow filter kit for extra protection; Clutch Count: FORWARD 5; Clutch Count: DIRECT 5; Fully rollerized geartrain; Increase the durability of your drivetrain; Revised oil circuits; Handles up to 300% more power and torque than the stock transmission; Extra clutches and stronger internals; BD rigid aluminum heavy duty transmission pan; Pan reduces case flex; Pan reduces internal oil leakage; Pan heat-dissipating fins keep temperature down; Pan magnetic drain plug
BD TorqueMaster Dodge 47RE Transmission – 1998.5-1999 24-valve 4wd c/w Auxiliary Filter & Billet Input
- Billet Input Shaft to take the “snap” from rapid throttle and high horsepower
- Use Of Third Party Or OE Converter Will Invalidate Trans. Warranty
- Upgraded governor solenoid – Twice the burst pressure than stock
- Stock thrust bushings replaced with roller Torrington bearings

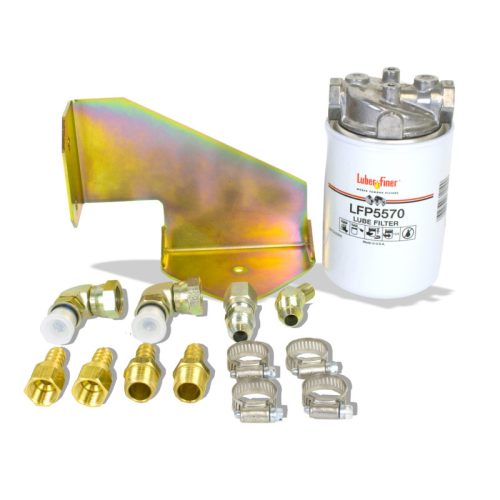

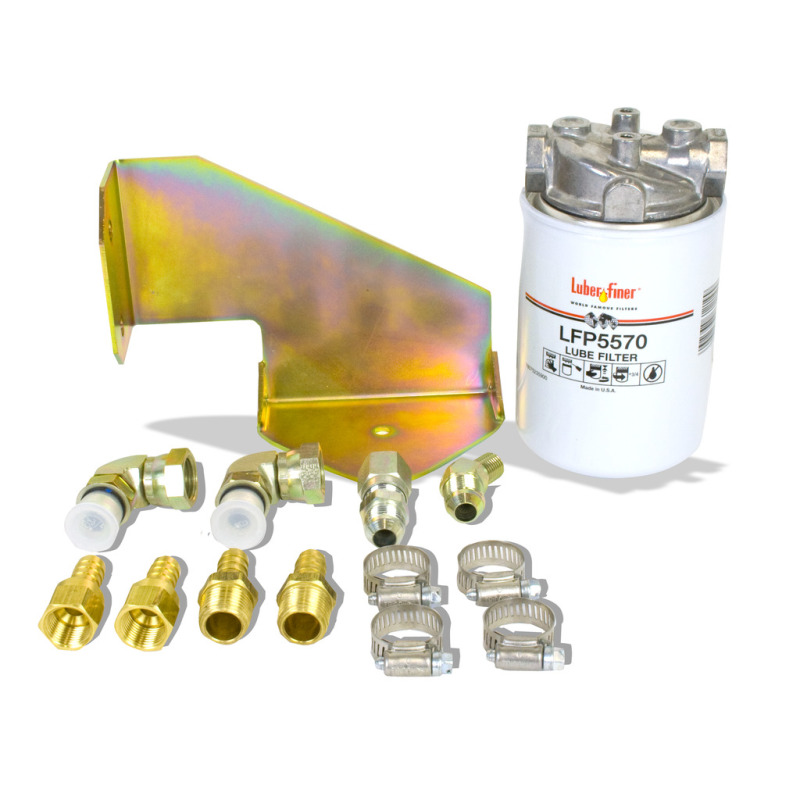

- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- Upgraded governor pressure transducer (47RE/48RE)
- Modified manual valve for lube in all positions
- Pan heat-dissipating fins keep temperature down
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Increase the durability of your drivetrain
- Not Warranted For Race Or Sled Pull Use
- Every transmission is tested on a dyno
- 36 Month/150000 Mile Limited Warranty
- Increased line pressure to 190-200psi
- Pan Adds 1 Qt. Extra Oil Capacity
- Each Transmission Is Dyno Tested
- Pan adds 2qt extra oil capacity
- High temp/energy Raybestos band
- No shuttle shifting problems
- Clutch Count: OD DIRECT 10
- Clutch Count: FORWARD 5
- Upgraded 48RE sunshell
- Clutch Count: DIRECT 6
- New Design Valve Body
- No Race Abuse Covered
- Upgraded Valve body
- Billet barrel strut
- Magnetic drain plug
- Clutch Count: OD 6
- Billet band lever
Out of stock

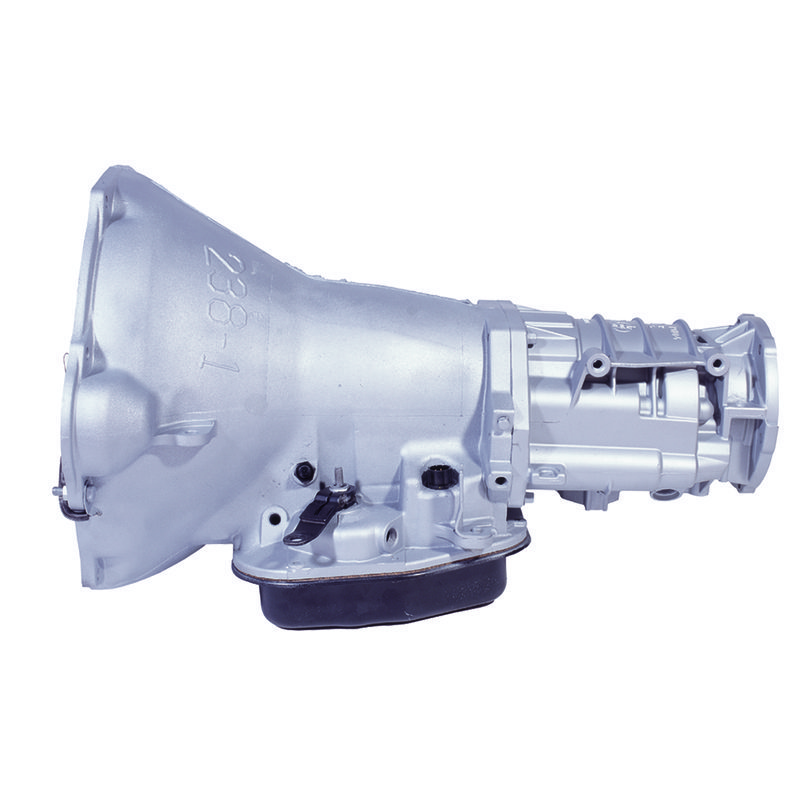

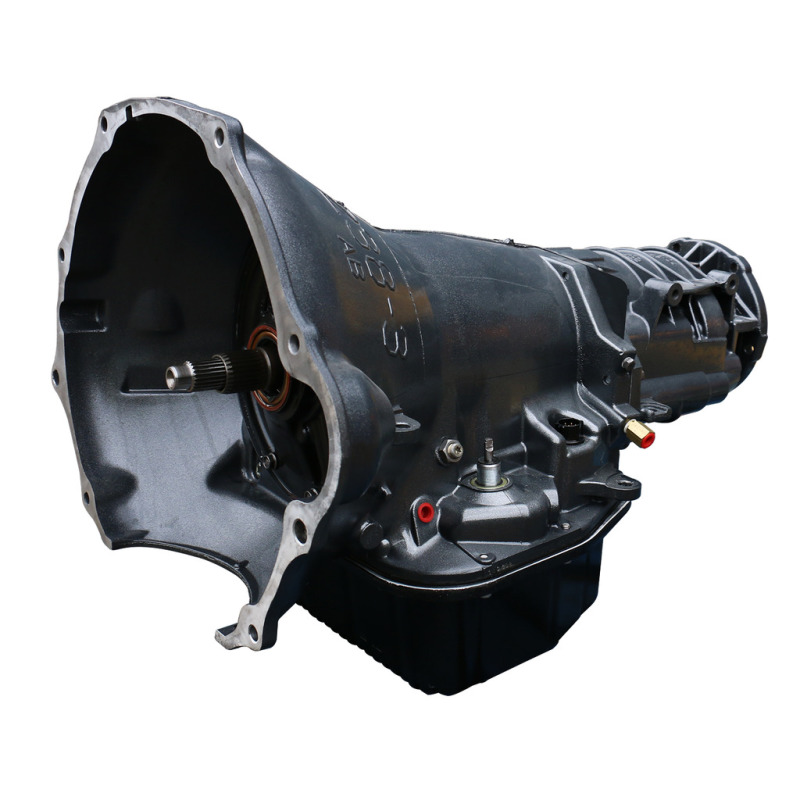

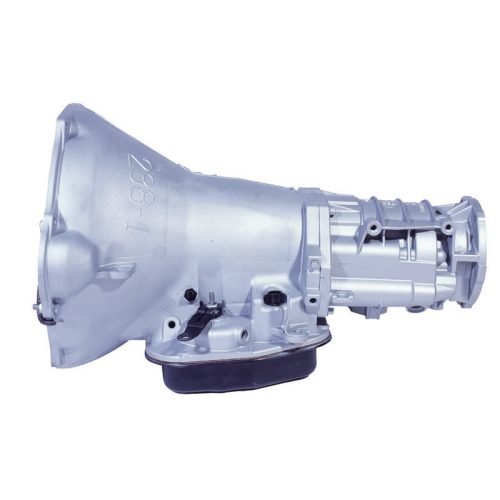

The BD Diesel 1064174BF transmission upgrade is designed to optimize heavy-duty performance for Dodge Ram trucks equipped with the 47RE transmission, specifically for models from 1998 to 1999. This comprehensive kit features a billet input shaft engineered to withstand the demands of rapid throttle response and high horsepower applications, ensuring your drivetrain can handle increased torque and power without compromise. It includes a fully rollerized geartrain, upgraded clutches with up to 25% more material, and heavy-duty internal components to significantly enhance durability and long-term reliability in fleet and towing operations.
The transmission assembly incorporates a new design valve body, drilled intermediate shaft for superior lubrication, and an upgraded governor pressure transducer and solenoid, which provide increased line pressure—up to 200 psi—delivering more consistent clutch engagement and shift firmness. The addition of a high-capacity aluminum transmission pan with heat-dissipating fins reduces operating temperature and internal oil leakage, while the magnetic drain plug facilitates easier maintenance. Every unit is dyno-tested to ensure performance standards and comes with a 36-month/150,000-mile limited warranty, demonstrating confidence in its rugged performance.
This upgrade also features a BD auxiliary full flow filter for extra protection, along with a cooler line case saver to prevent internal damage. The revised oil circuits and reinforced internals allow handling of up to 300% more torque than stock, making this transmission a robust solution for high-power applications. Designed for easy installation, the kit is not intended for race or sled pull use and should be installed following manufacturer guidelines for optimal results. Whether for towing, heavy-duty work, or high-performance applications, this transmission assembly offers a significant upgrade over stock components, ensuring your vehicle maintains reliable operation under severe conditions.
Features:
- Heavy-duty diesel torque capacity with internal components designed for increased durability
- Premium friction materials provide smooth, consistent engagement and high-performance shifting
- Enhanced thermal capacity with heat-dissipating pan and upgraded oil circuits prevent clutch slippage under severe towing conditions
- Long-term drivetrain reliability supported by reinforced internals, larger clutches, and upgraded components
Fitment:
Dodge Ram 2500 Base 1998 to 1999
Dodge Ram 3500 Base 1998 to 1999
| Weight | 250 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| carb_acknowledgement_required | false |
| core charge | 1800 |
| regular_stock | false |
| units_per_sku | 1 |
| upc | 019025007796 |
| brand | BD Diesel |
| part_number | 1064174BF |
