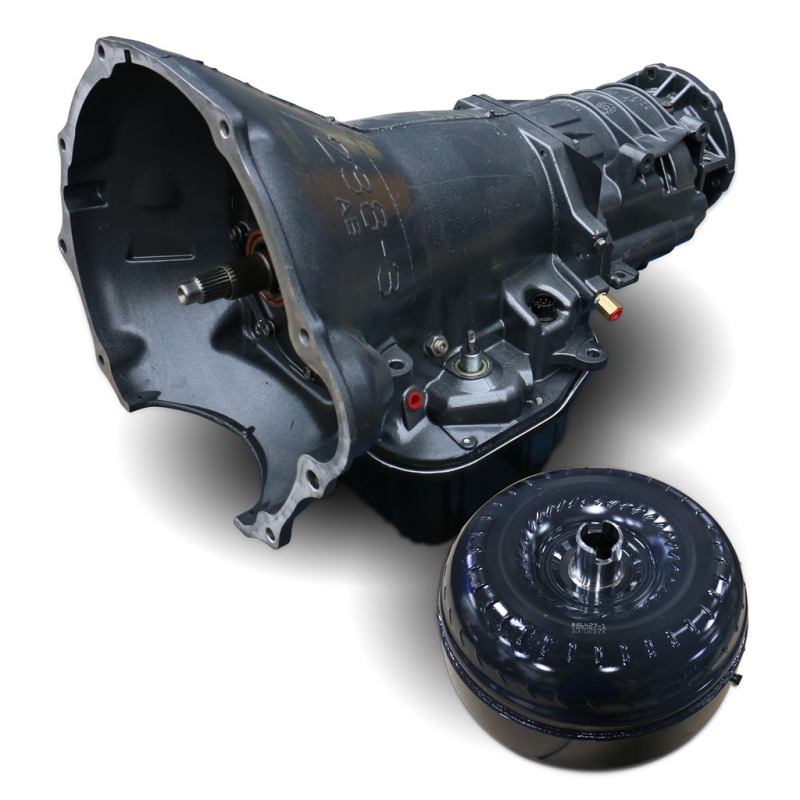

BD Diesel 47RE Transmission & Converter Package – Part # 1064162SS
$6,519.99
Transmission-Upgraded Valvebody, Upgraded governor solenoid, Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock. Increased line pressure to 190-200psi. No shuttle shifting problems, Modified manual valve for lube in all positions. Stock thrust bushings replaced with roller Torrington bearings. Clutch Count: DIRECT 6, Clutch Count: FORWARD 5, Clutch Count: OD 6, Clutch Count: OD DIRECT 10. High temp/energy Raybestos band. Billet band lever, billet band strut. Billet Input Shaft to take the ‘snap’ from rapid throttle and high horsepower. Billet ‘Big’ fine spline input shaft. Drilled intermediate shaft for increased lubrication. BD rigid aluminum heavy duty transmission pan. Pan adds 2qt extra oil capacity. Pan heat-dissipating fins keep temperature down. Magnetic drain plug. Increase the durability of your drivetrain. BD auxiliary full flow filter kit for extra protection. Cooler line case saver in every transmission. Every transmission is tested on a dyno. Torque Convertor- Enhanced Stall – Street/Towing applications. Machined pistons, HD springs absorb shock of engagement, Stamp forged 1-piece cover, Eliminates warpage from clutch heat, Taller cover can be rebuilt more often. Trapezoid teeth design, Engineered tighter tolerances. Self-centering teeth design increases contact decreases wear and chatter. Thrust bearings – not plastic thrust washers. Riveting process ensures alignment & eliminates vibration or embrittlement from welding. Cast stator designs maximizes torque. New sprag components ensure long term durability. Reduced overall weight by 12lbs compared to competitors. Warranty-> Parts 36 Month/150,000 miles, Labor 12 Month 24000 Miles
Transmission Kit; Complete Trans; Incl. Auxiliary Filter/2 QT Extra Capacity Pan; Incl. Complete Torque Converter; Enhanced Stall; Stage 4;
- Upgraded governor solenoid – Twice the burst pressure than stock
- Stock thrust bushings replaced with roller Torrington bearings
- BD auxiliary full flow filter kit for extra protection
- Drilled intermediate shaft for increased lubrication
- Up to triple the amount of lock-up clutch material
- Upgraded governor pressure transducer (47RE/48RE)
- Pan heat-dissipating fins keep temperature down
- Modified manual valve for lube in all positions
- BD rigid aluminum heavy duty transmission pan
- Cooler line case saver in every transmission
- Enhanced Stall – Street/Towing applications
- Lower rpm response than the stock converter
- Increase the durability of your drivetrain
- Torque multiplying cast aluminum stators
- Not warranted for Race or Sled Pull use
- Every transmission is tested on a dyno
- Upgraded Governor Pressure Transducer
- Increased line pressure to 190-200psi
- Less heat and better fuel economy
- High temp/energy Raybestos band
- Torque Convertor Enhanced Stall
- Pan adds 2qt extra oil capacity
- Stamp-forged steel front cover
- No Shuttle Shifting Problems
- Stamped Forged 1 Piece Cover
- Upgraded Governor Solenoid
- Clutch Count: OD DIRECT 10
- More Efficient Operation
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- Upgraded 48RE sunshell
- No Race Abuse Covered
- Billet barrel strut
- Magnetic drain plug
- Upgraded Valve body
- Furnace-brazed fins
- Furnace Brazed Fins
- Clutch Count: OD 6
- TORQUE CONVERTOR:
- Billet band lever
- Aluminum HD Pan
- TRANSMISSION:
Out of stock
This BD Diesel 47RE Transmission & Converter Package is engineered specifically for heavy-duty towing and fleet applications, offering unmatched durability and performance for 1996-1997 Dodge Ram 2500 and 3500 models. The package includes a fully rebuilt transmission with upgraded components such as a high-performance valve body, enhanced governor solenoid, and increased line pressure to 190-200psi, ensuring more efficient power transfer and reduced shift delays. The billet input shaft and drilled intermediate shaft improve longevity under high torque loads, while the heavy-duty aluminum pan with heat-dissipating fins maintains optimal operating temperatures during extended towing or aggressive driving conditions. The addition of a BD auxiliary full flow filter kit ensures additional protection against contaminants, prolonging the lifespan of your drivetrain. Every transmission undergoes dyno testing to verify performance standards, providing confidence in its reliability and robustness.
The included torque converter features an enhanced stall speed designed for street and towing applications, delivering improved throttle response and reduced transmission stress. Built with steel front covers, stamped forged 1-piece construction, and billet components such as the band lever and strut, this assembly is designed to withstand severe duty cycles. The upgraded clutch count—six in direct, five in forward, six in overdrive, and ten in overdrive direct—along with cast aluminum stators and improved sprag components, maximizes torque capacity and durability. The package also incorporates a cooler line case saver and magnetic drain plug for enhanced maintenance and heat dissipation. Tested on a dynamometer, this complete rebuild ensures a high-performance, long-lasting drivetrain upgrade, backed by a 36-month/150,000-mile parts warranty and 24,000 miles labor coverage.
Designed for professional installation, this comprehensive package offers everything needed to restore or upgrade your heavy-duty transmission to handle increased horsepower, towing demands, and prolonged use. Proper installation and adherence to break-in procedures are critical for optimal performance and longevity of the components, especially given the high-performance enhancements included in this package.
Features:
- Heavy-duty transmission with upgraded internal components for increased torque capacity and durability
- Premium friction materials for smooth engagement and long-lasting performance
- Enhanced thermal capacity with heat-dissipating fins and oil capacity to prevent overheating during heavy towing
- Reliable, tested performance with comprehensive warranty coverage for peace of mind
Fitment:
Dodge Ram 2500 Base 1996 to 1997
Dodge Ram 3500 Base 1996 to 1997
| Weight | 339 lbs |
|---|---|
| Dimensions | 44.5 × 27.3 × 23.5 in |
| air_freight_prohibited | false |
| not_carb_approved | false |
| carb_acknowledgement_required | false |
| ltl_freight_required | true |
| prop_65 | Y |
| part_type | automotive |
| epa | N/A |
| core charge | 2500 |
| units_per_sku | 1 |
| upc | 990011406703 |
| brand | BD Diesel |
| part_number | 1064162SS |
