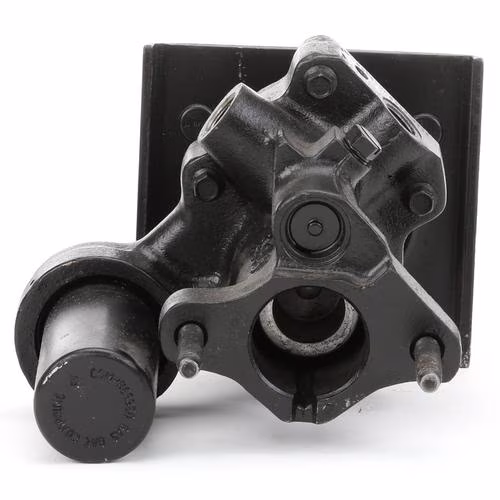

Main shot of the Bexar Pro Hydroboost BP7367 hydraulic brake booster showing cast iron housing and firewall mounting bracket.

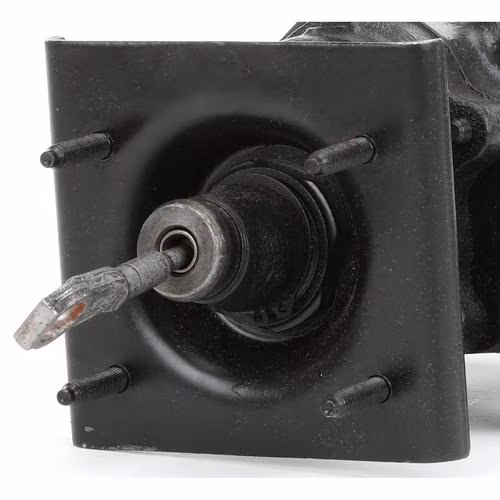

Close-up view of the hydraulic input ports and 100% new seals on the Bexar Pro BP7367 booster.

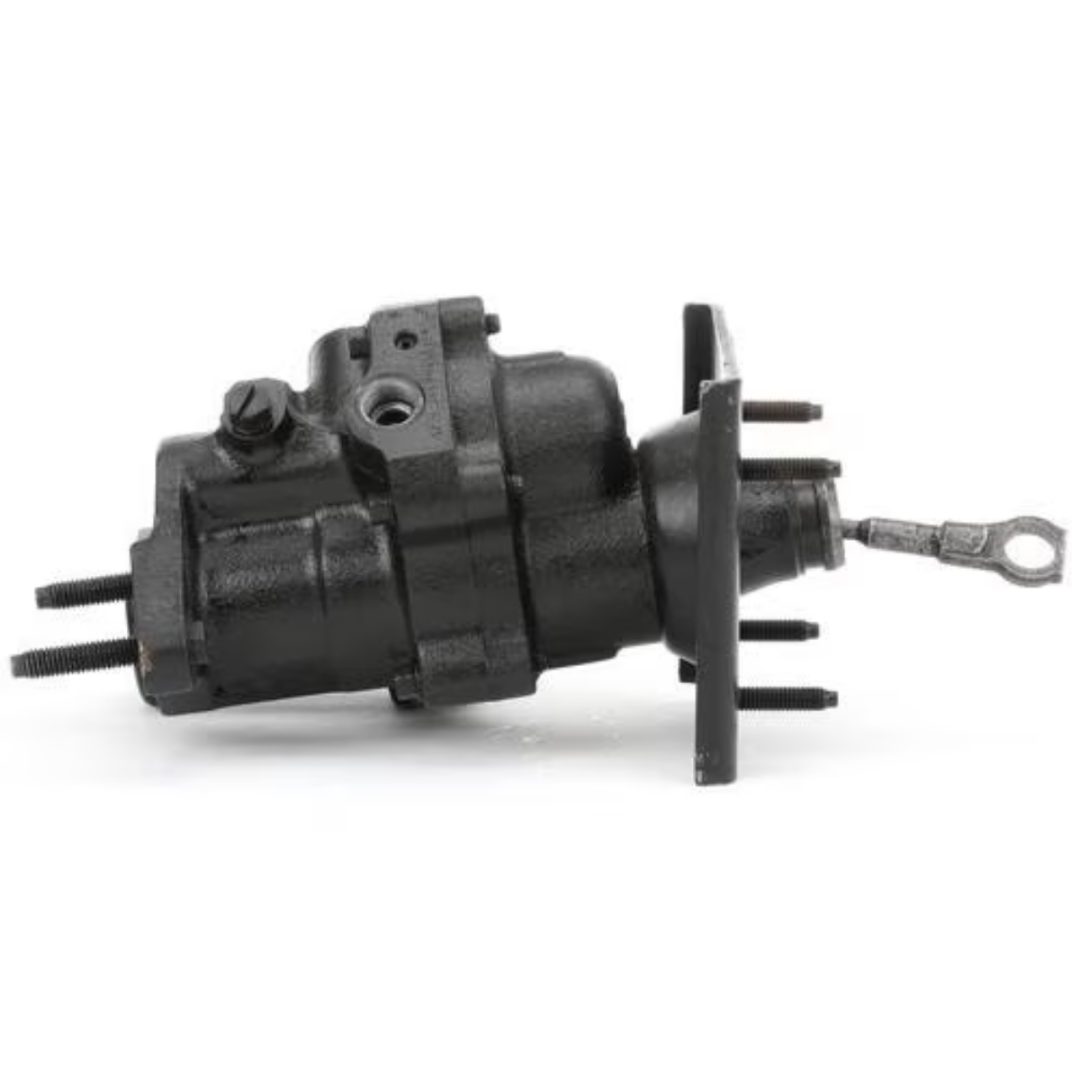

Top-down view of the Bexar Pro BP7367 Hydroboost unit showing fluid line routing locations.

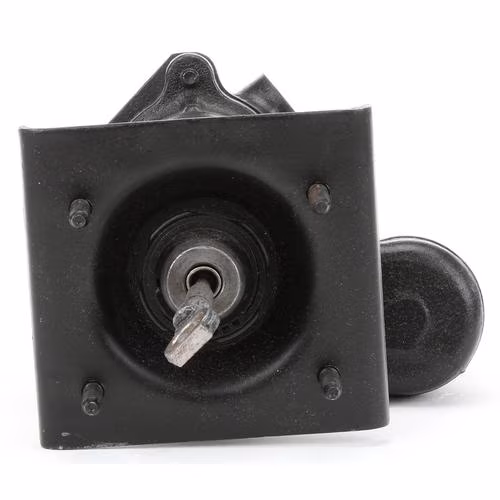

Bottom view of the Bexar Pro BP7367 brake booster showing base reinforcement and mounting surface.

Bexar Pro Hydroboost Hydraulic Power Brake Booster for Ford F-53, F-59, F-650 & F-750 (BP7367)

Fitment Lookup:

Category: Hydroboost Brake Boosters BPC Brand: Bexar Pro Components

Description

SKU: BP7367

Bexar Pro Hydroboost | Ford F-53, F-59, F-650 & F-750 Commercial Chassis

Commercial & Fleet Grade
In Store & Fast Shipping

CRITICAL: Verify Specifications

Please verify your firewall mounting configuration, 2.16-inch housing diameter, and stud thread dimensions (M8-1.25) prior to installation. Heavy-duty Ford motorhome and commercial stripped chassis demand exact hydraulic assist tolerances to maintain safe braking under high gross vehicle weight ratings (GVWR).

“Engineered to provide immediate, heavy-duty hydraulic stopping force and maximum pedal reliability for commercial fleets, step vans, and motorhome chassis.”

Restore maximum braking performance and eliminate soft or fading pedal response with the Bexar Pro Hydroboost. Built specifically for demanding commercial and heavy-duty chassis—including 1999-2025 Ford F-53 Motorhome Chassis, 2012-2025 Ford F-59 Commercial Stripped Chassis, and 2016-2019 Ford F-650 / F-750 trucks—this hydraulic power brake booster harnesses power steering pressure to deliver massive stopping assist. Reverse-engineered to correct factory failure points, each unit is rebuilt using 100% new O.E. quality seals, diaphragms, and precision-tested check valves.

Specification	Detail
Housing Diameter	2.16 inches
Booster Type	Hydraulic (Power Steering Assist)
Stud Thread Size	M8-1.25
Housing Material	Cast Iron
Internal Components	100% New Seals, Diaphragms & Check Valves
Mounting Hardware	Includes Mounting Bracket (Hardware Excluded)

🛠️ Expert Installation & Field Note

From our shop experience specializing in heavy-duty commercial and RV braking systems since 1985:

Power Steering System Thermal Care: Commercial delivery vans (F-59) and Class A motorhomes (F-53) operate under severe thermal load. Always perform a complete power steering fluid flush when replacing the booster to prevent fluid degradation and spool valve sticking.
Pushrod & Linkage Check: Confirm clean actuation rod alignment through the firewall. Binding caused by misaligned linkage on commercial chassis can score internal seals and cause rapid pressure loss.
Corrosion Barrier: Our heavy-duty rust-prohibitive finishing process coats raw cast iron surfaces to endure constant exposure to harsh road chemicals, salt spray, and extreme underbody conditions.

Installation & Troubleshooting Guide →

Availability & Logistics

In-stock item available for immediate counter pickup, local fleet delivery, or direct regional freight.

Core Deposit Terms

The listing price includes the core configuration ($73.00 core deposit value). Send your original rebuildable core back within 90 days for a full refund back to your original payment method.
